Neutral Switch Removal/Installation

Remove the neutral switch.

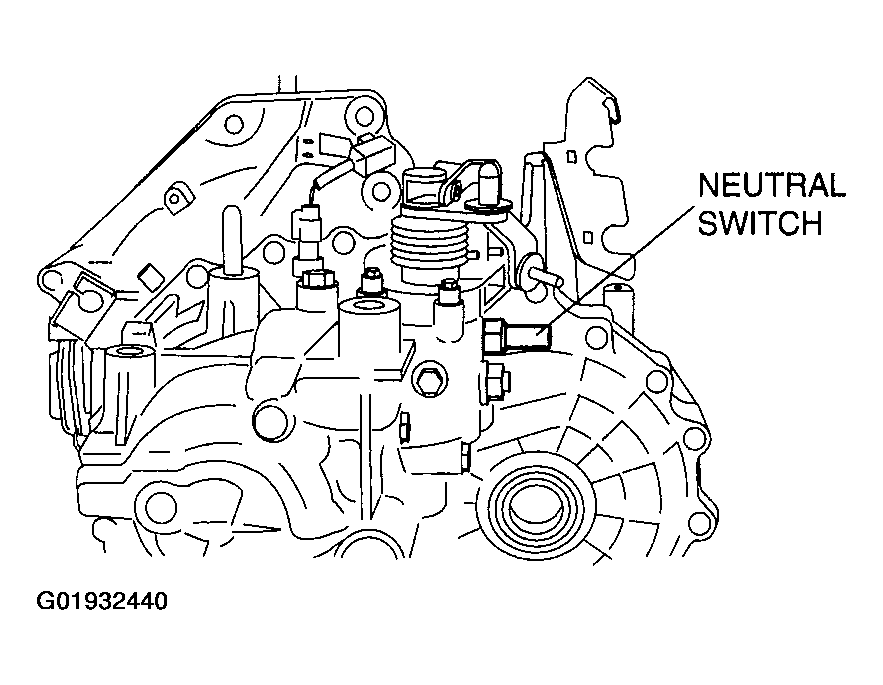

Fig 1: Locating Neutral Switch
Courtesy of MAZDA MOTORS CORP.
Apply a light coat of silicone sealant to the screw of the neutral switch.
1. Sealant
2. Three Bond product: TB1215
Install the neutral switch to the transaxle case.
1. Tightening torque 22.5-33.3 N.m {2.3-3.4 kgf.m, 16.6-24.6 ft.lbf}
