PCM Power Relay Connector End View (C1016)

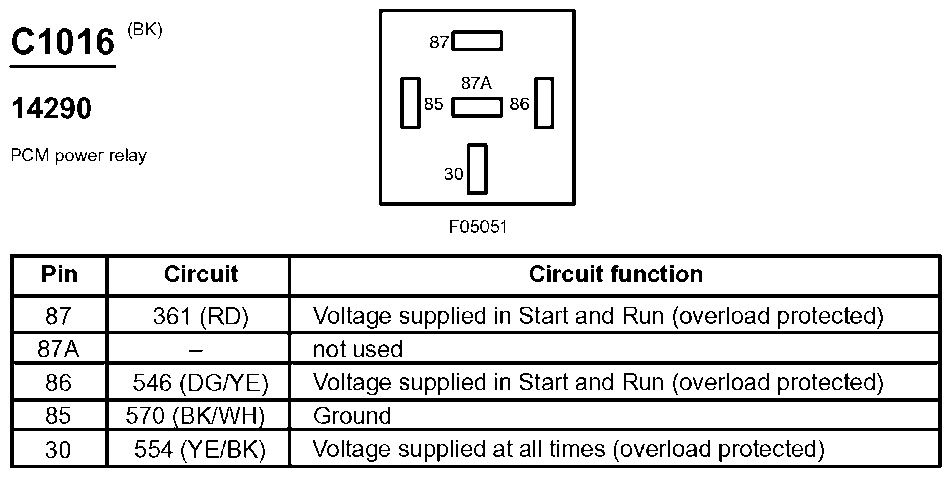

Fig 1: PCM Power Relay Connector End View (C1016)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
