Specifications - Suspension: Notes

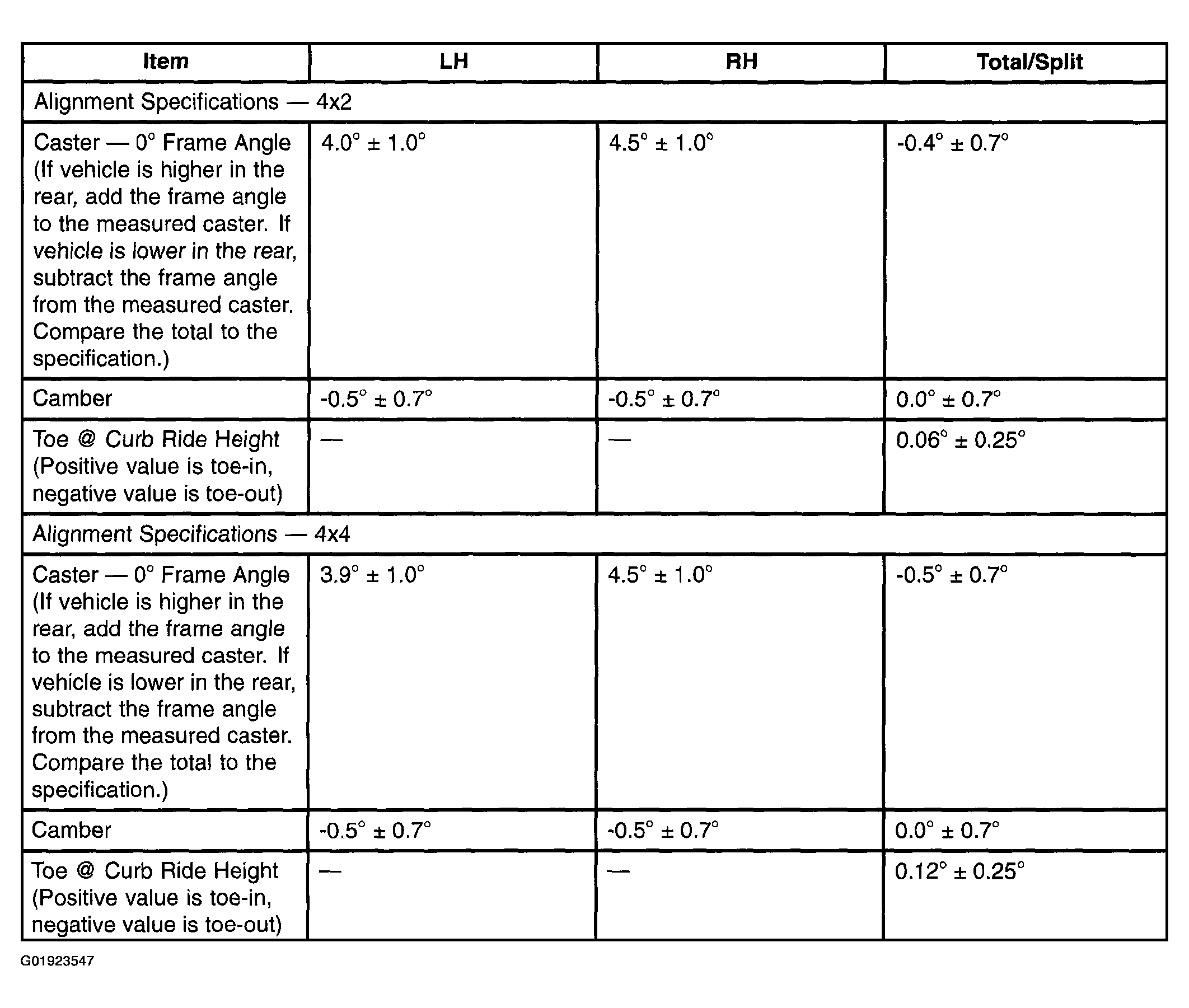

Fig 1: Suspension - Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
