On-Board System Readiness Tests Access Procedure

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Monitor the OBD-II systems operating status using the WDS or equivalent.

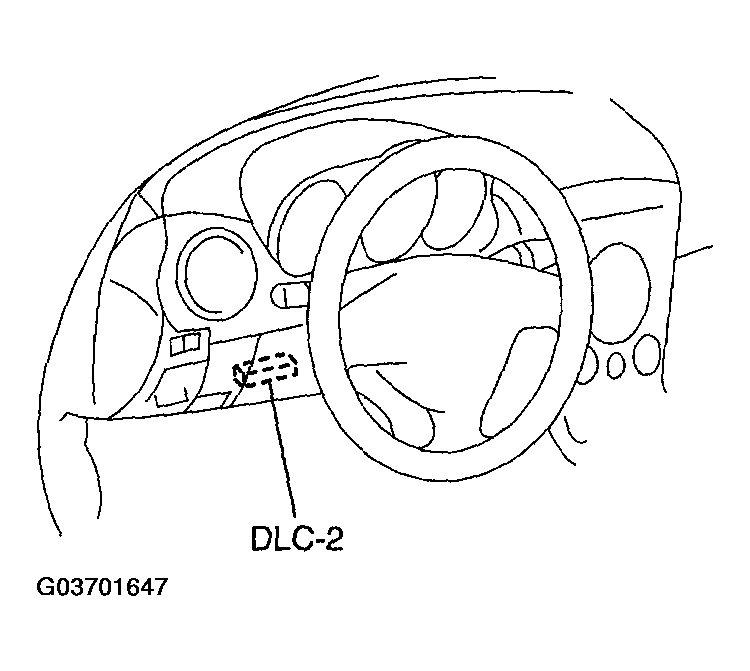

    Fig 1: Identifying DLC-2 Connector
    G03701647Courtesy of MAZDA MOTORS CORP.
