Technical Data





General Specifications












Cylinder Head And Valve Train

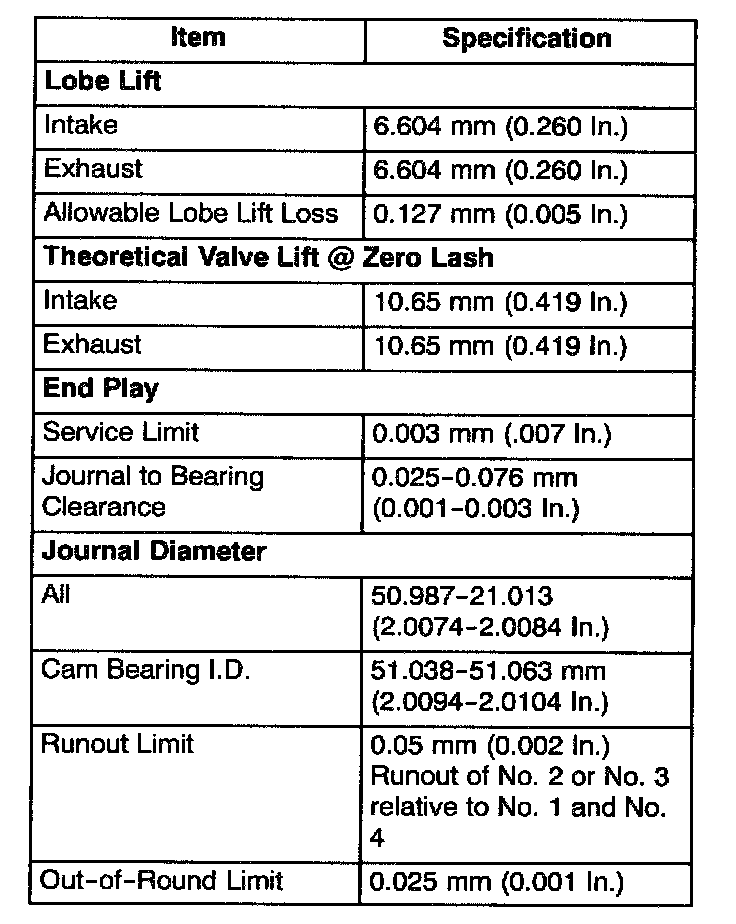

Camshaft Specifications






Cylinder Block Specifications









Crankshaft And Flywheel Specifications












Connecting Rod, Piston And Rings Specifications
