Engine Control Module: Locations

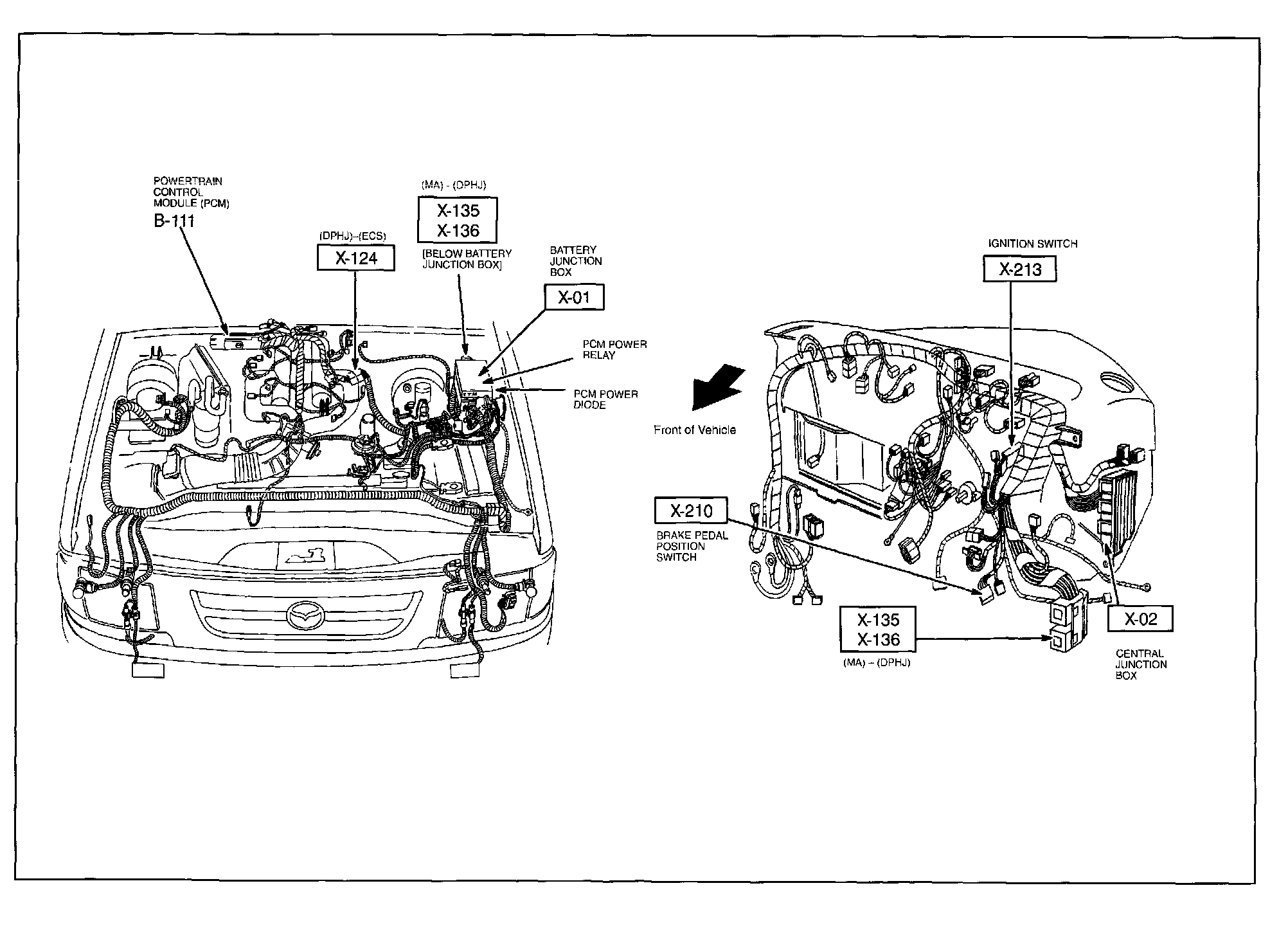

Routing View B-3a:



Routing View F-2:



Routing View H-1:



Routing View H-2c:
