DTC Index - Generic Electronic Module (Gem)

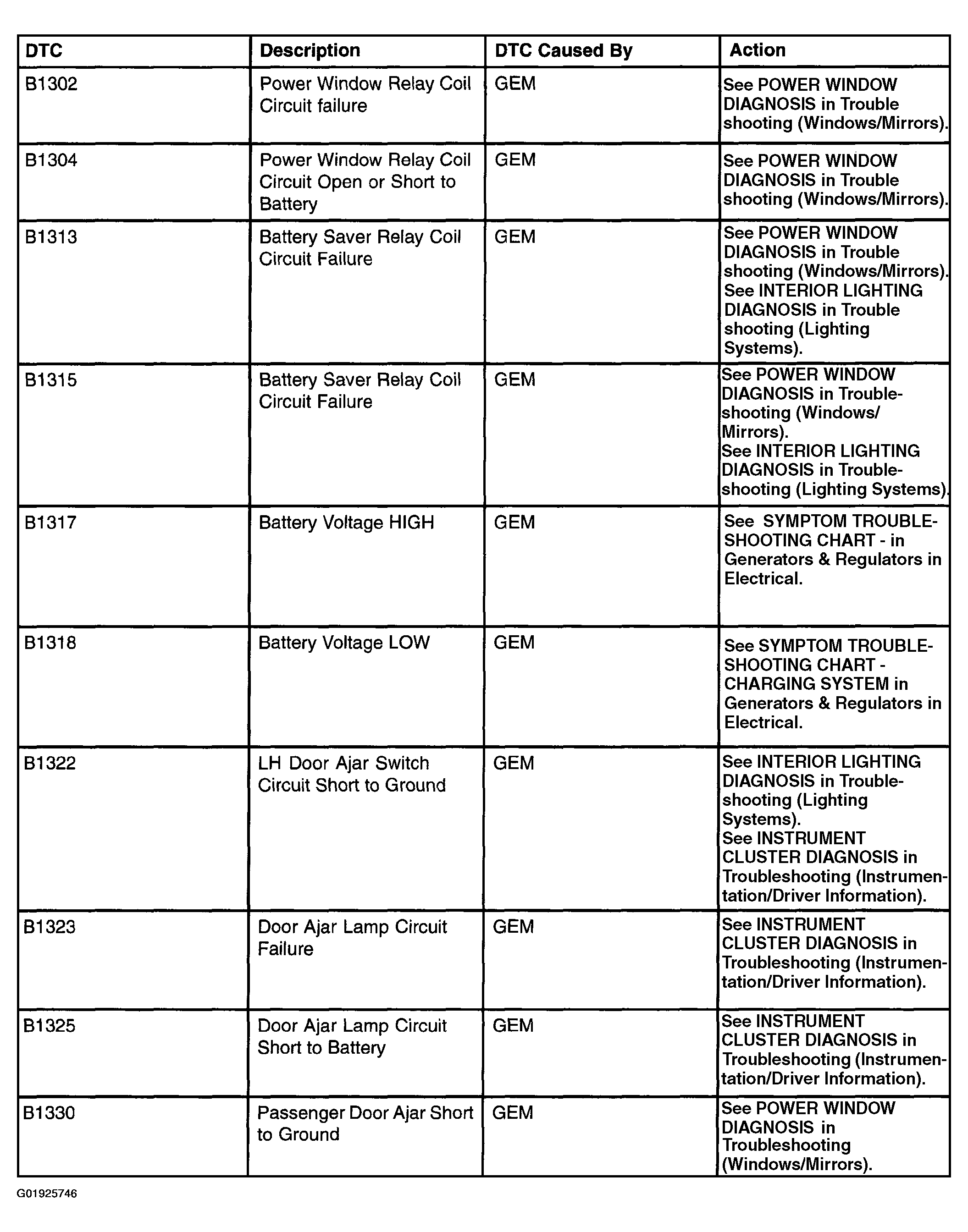

Fig 1: DTC Index -- Generic Electronic Module (B1302, B1304, B1313, B1315, B1317, B1318, B1322, B1323, B1325 & B1330)

Courtesy of MAZDA MOTORS CORP.

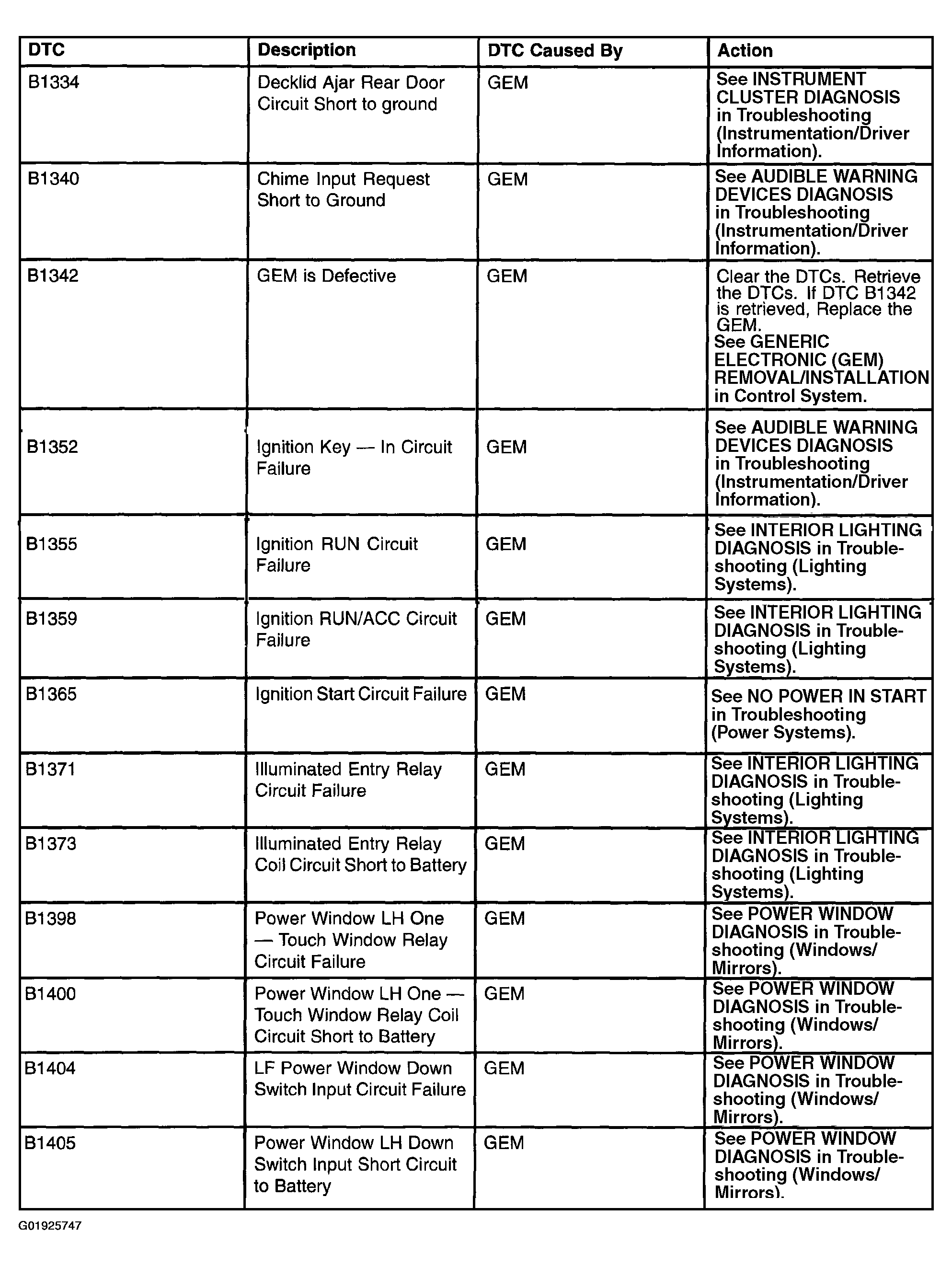

Fig 2: DTC Index -- Generic Electronic Module (B1334, B1340, B1342, B1352, B1355, B1359, B1365, B1371, B1373, B1398, B1400, B1404 & B1405)

Courtesy of MAZDA MOTORS CORP.

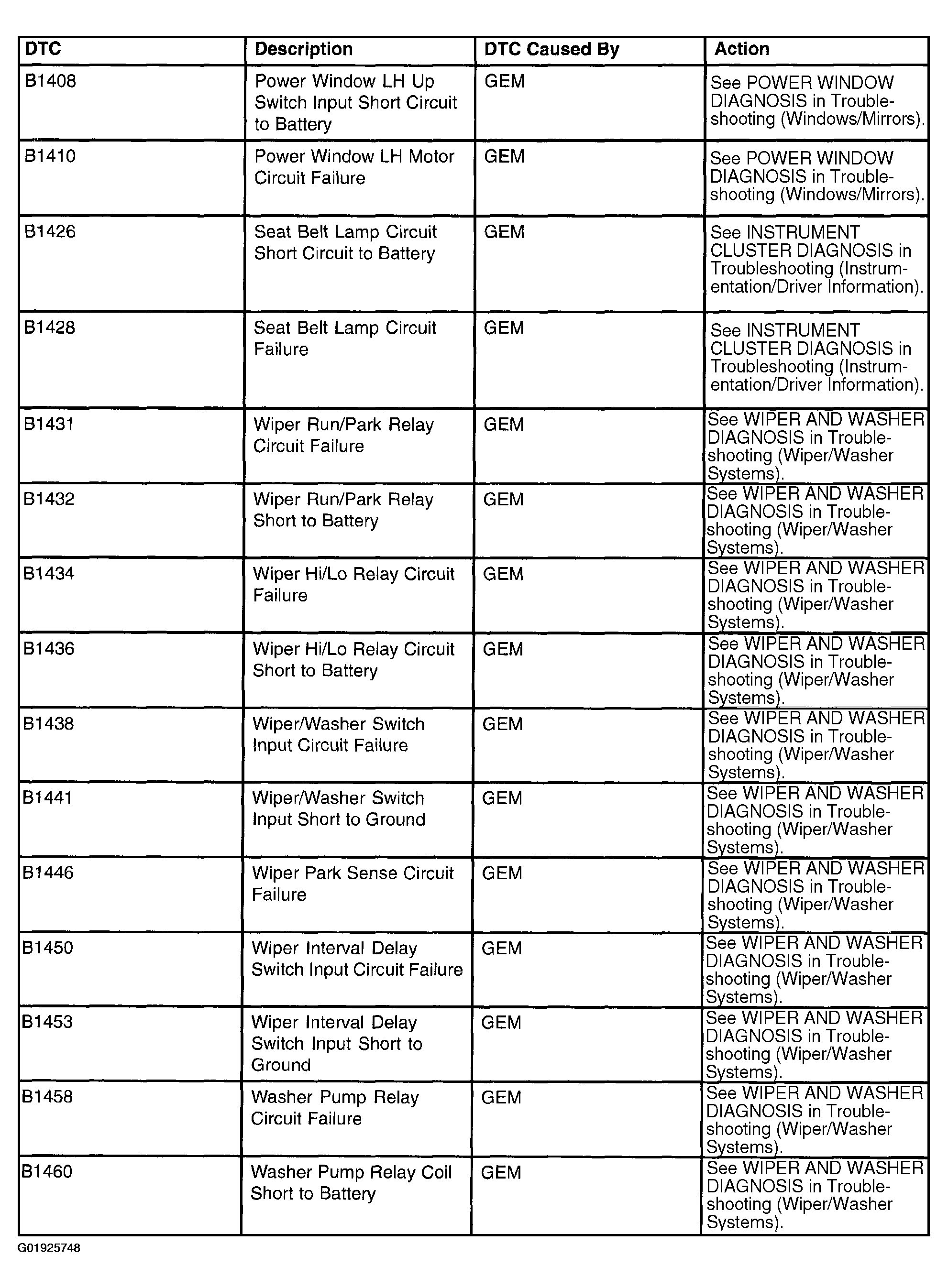

Fig 3: DTC Index -- Generic Electronic Module (B1408, B1410, B1426, B1428, B1431, B1432, B1434, B1436, B1438, B1441, B1446, B1450, B1453, B1458 & B1460)

Courtesy of MAZDA MOTORS CORP.

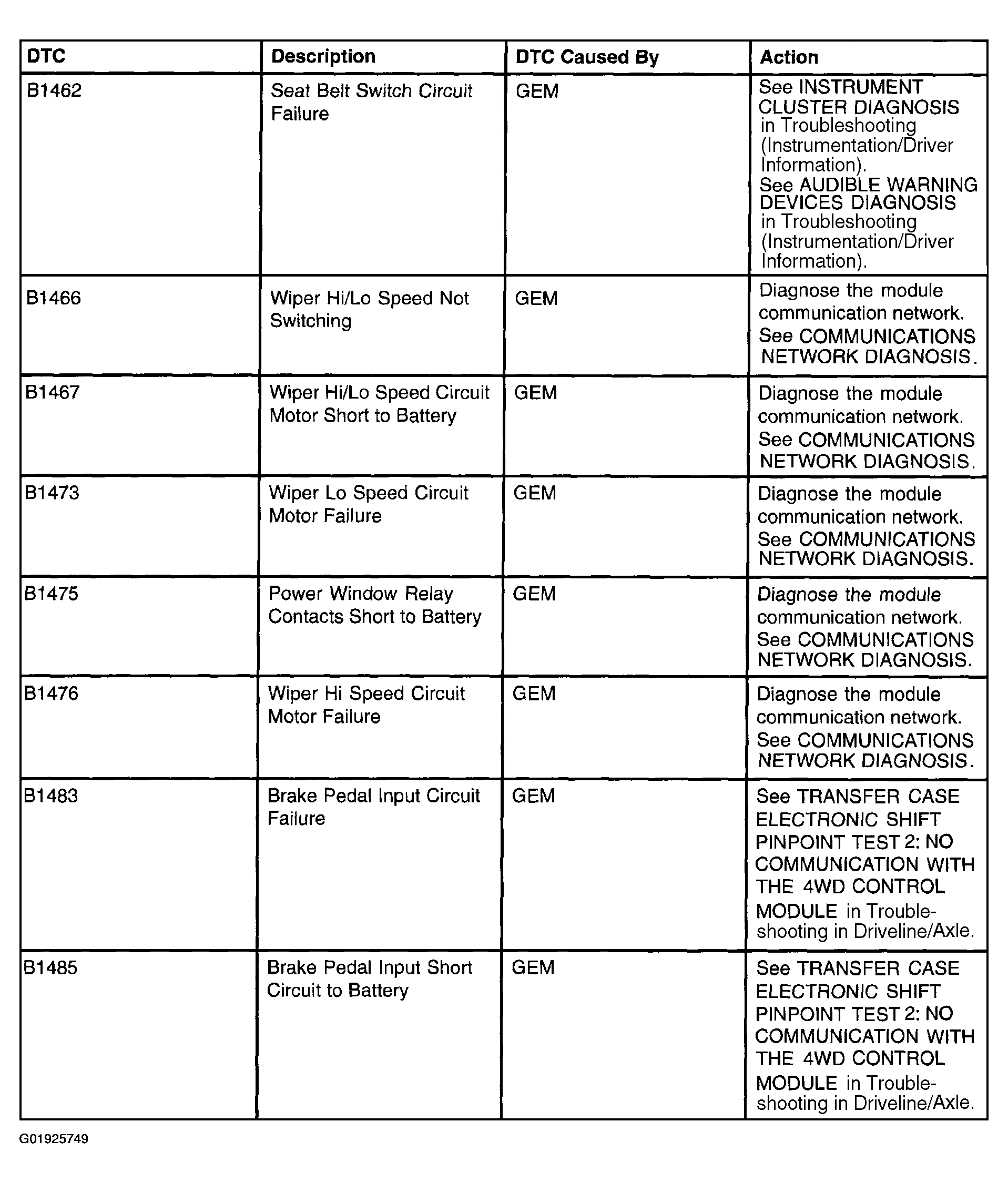

Fig 4: DTC Index -- Generic Electronic Module (B1462, B1466, B1467, B1473, B1475, B1476, B1483 & B1485)

Courtesy of MAZDA MOTORS CORP.

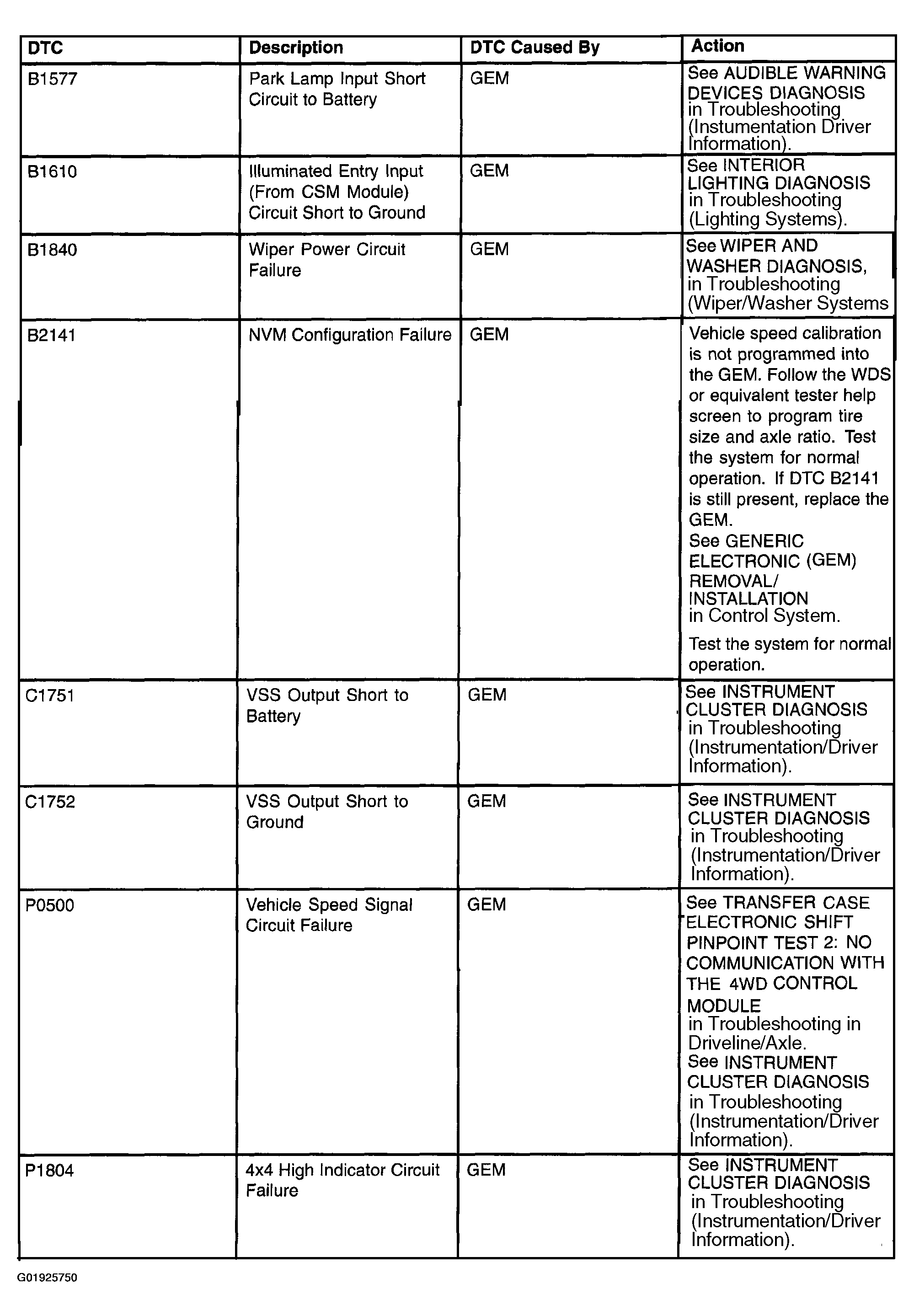

Fig 5: DTC Index -- Generic Electronic Module (B1577, B1610, B1840, B2141, C1751, C1752, P0500 & P1804)

Courtesy of MAZDA MOTORS CORP.

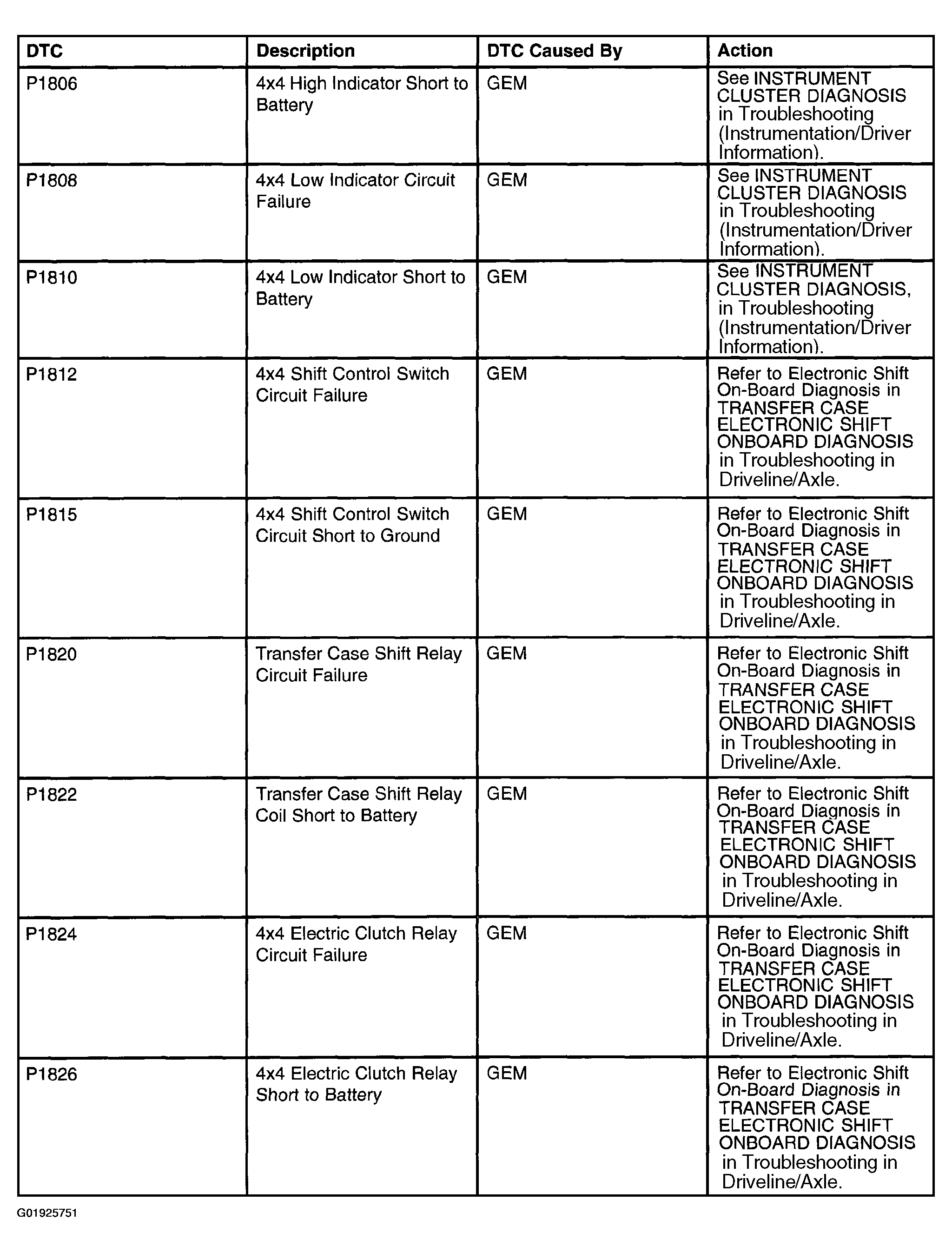

Fig 6: DTC Index -- Generic Electronic Module (P1806, P1808, P1810, P1812, P1815, P1820, P1822, P1824 & P1826)

Courtesy of MAZDA MOTORS CORP.

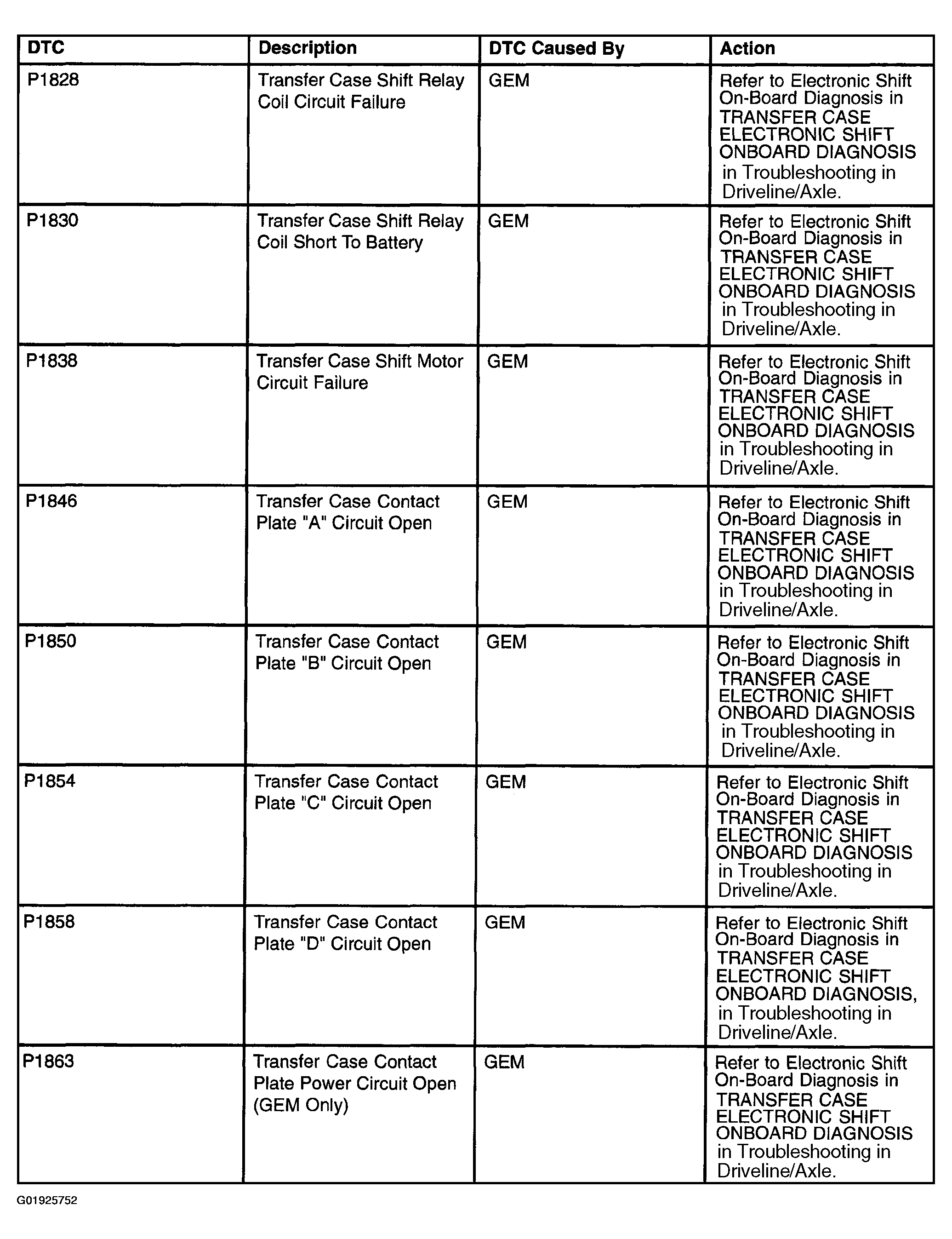

Fig 7: DTC Index -- Generic Electronic Module P1828, P1830, P1838, P1846, P1850, P1854, P1858 & P1863)

Courtesy of MAZDA MOTORS CORP.

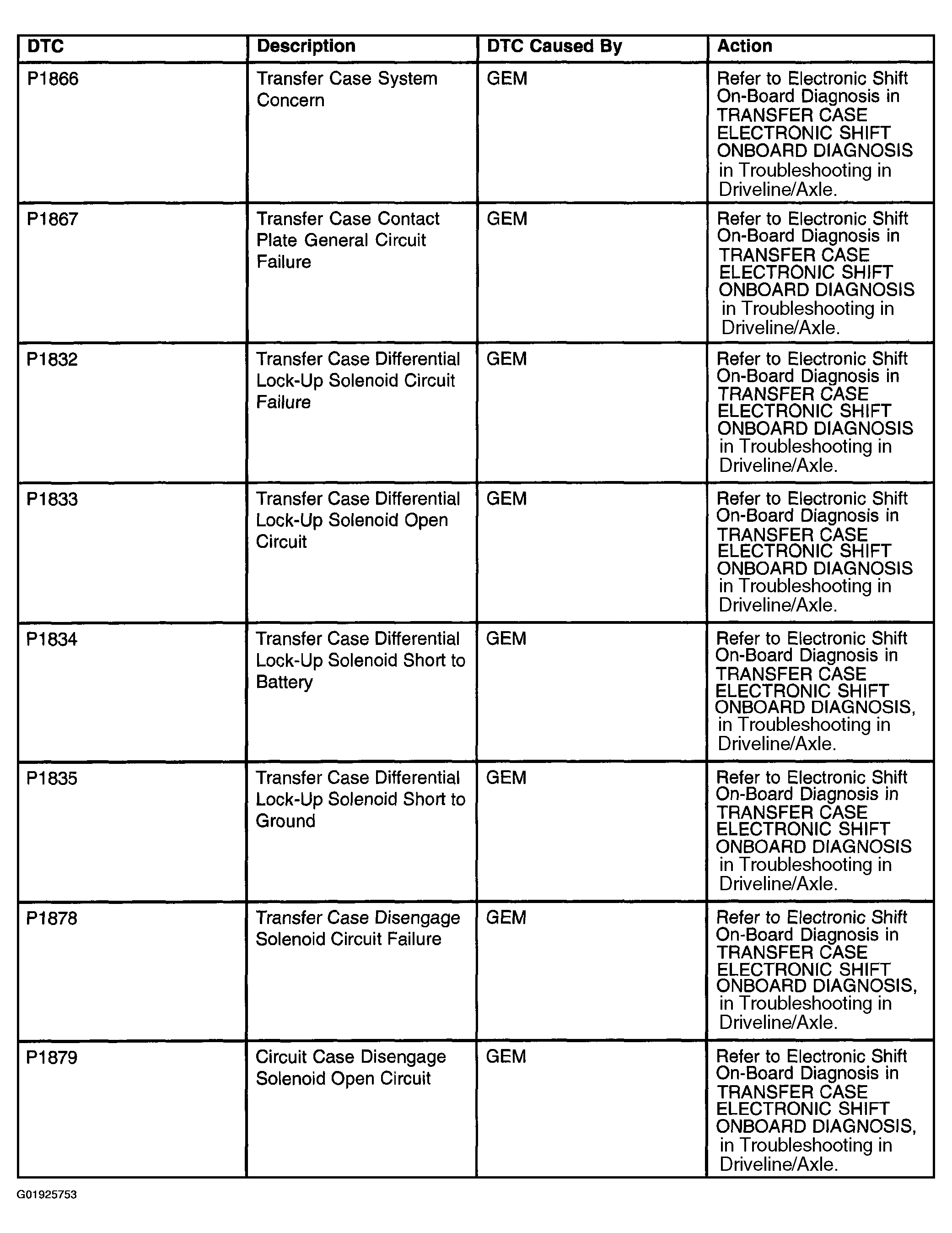

Fig 8: DTC Index -- Generic Electronic Module (P1866, P1867, P1832, P1833, P1834, P1835, P1878 & P1879)

Courtesy of MAZDA MOTORS CORP.

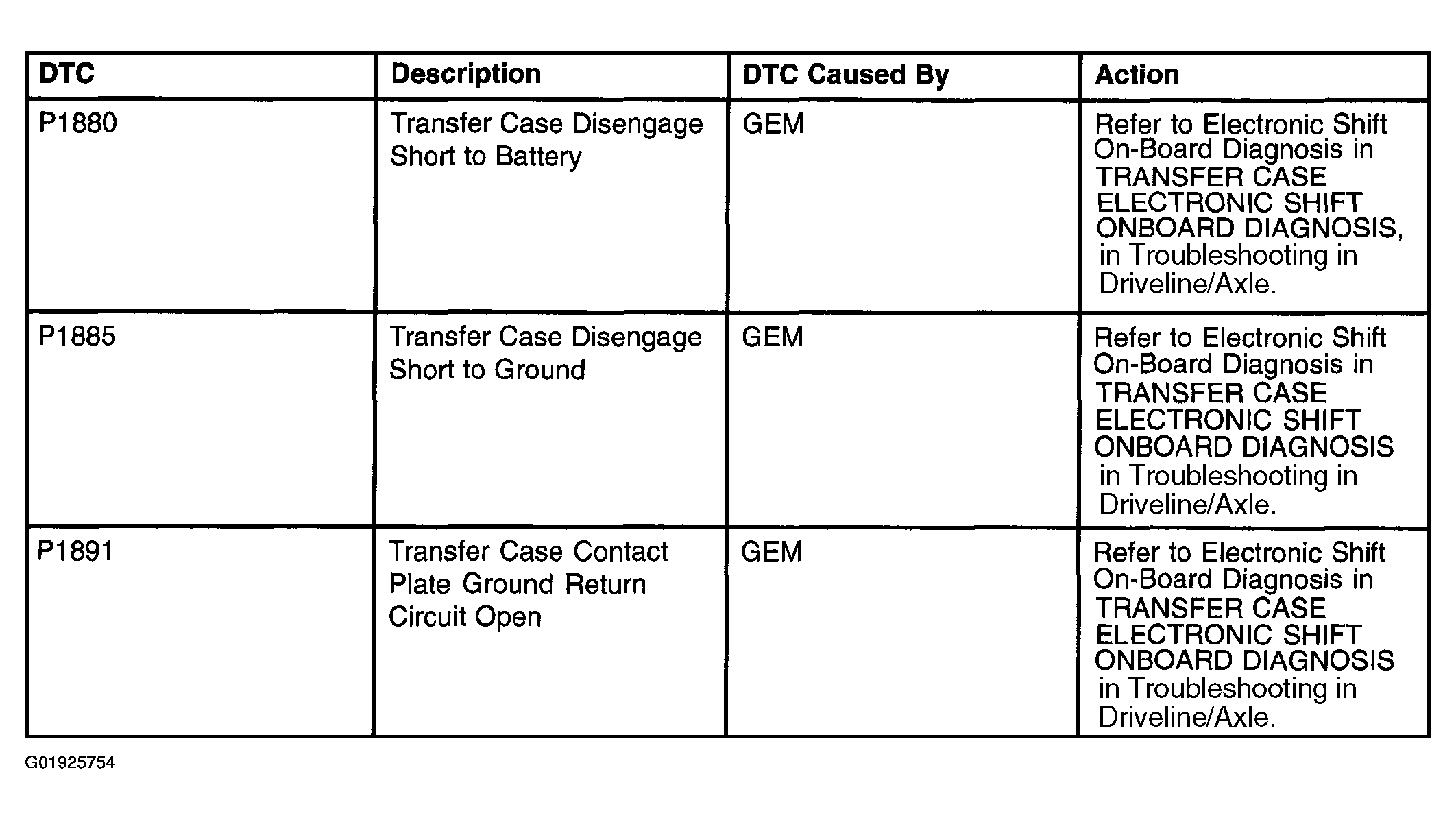

Fig 9: DTC Index -- Generic Electronic Module (P1880, P1885 & P1891)

Courtesy of MAZDA MOTORS CORP.
