Daytime Running Lamp (DRL) Control Module Removal/Installation

1. Disconnect negative battery cable.
2. Remove the daytime running lamps (DRL) control module.
   1. Disconnect the electrical connector.
   2. Remove the screws.
   3. Remove the DRL control module.

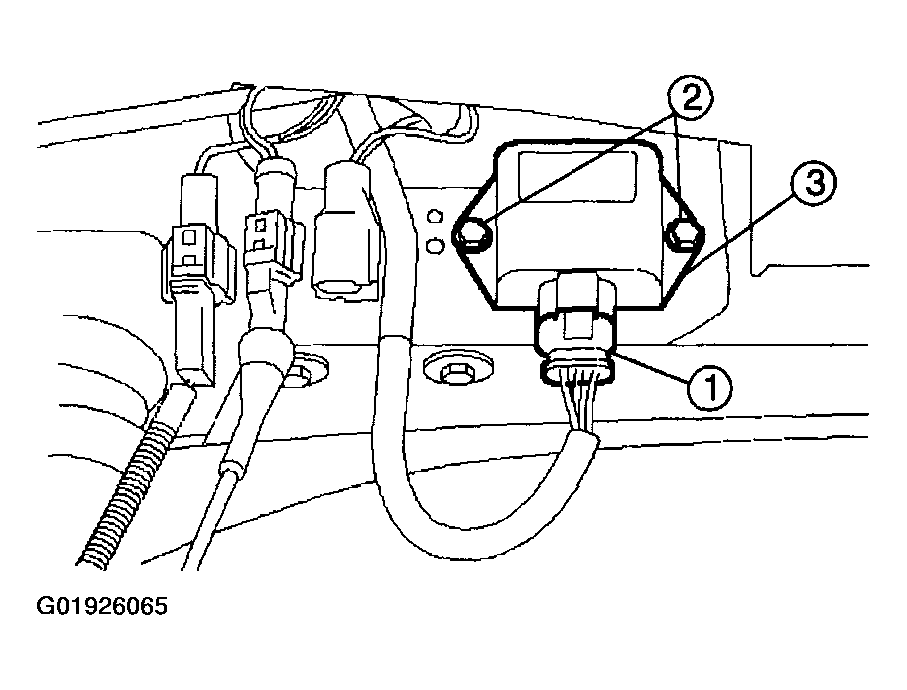

   Fig 1: Removing DRL Control Module

   Courtesy of MAZDA MOTORS CORP.
3. Install in reverse order of removal.

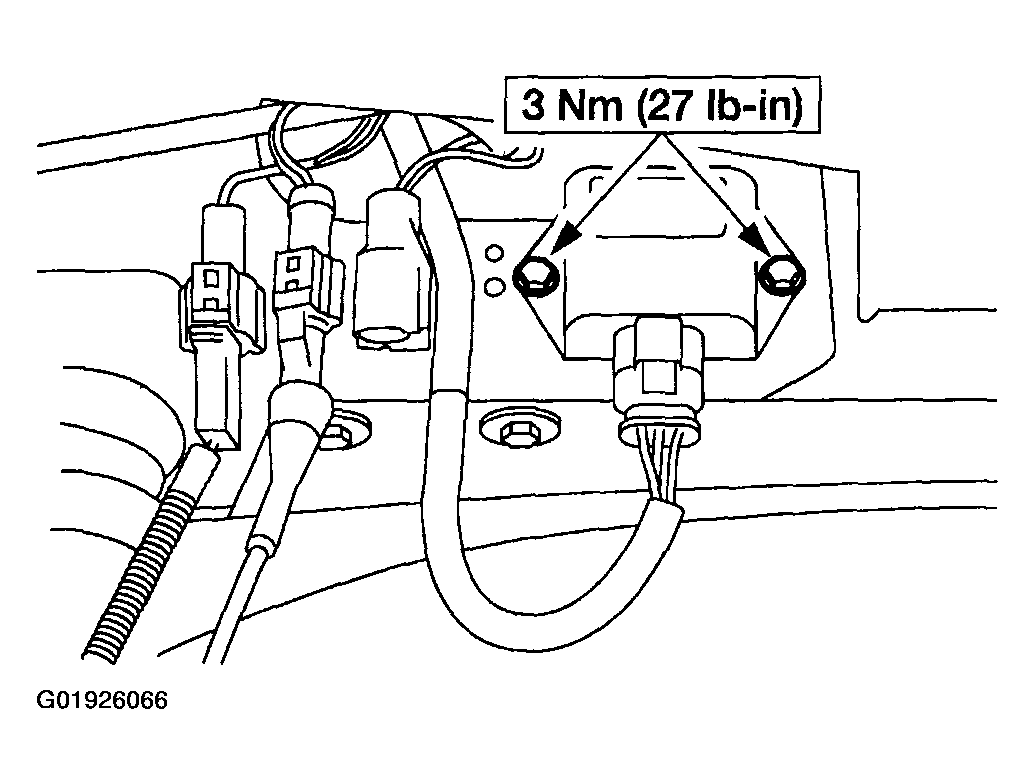

Fig 2: Installing DRL Control Module

Courtesy of MAZDA MOTORS CORP.
