Multi-Function Switch - Component Test

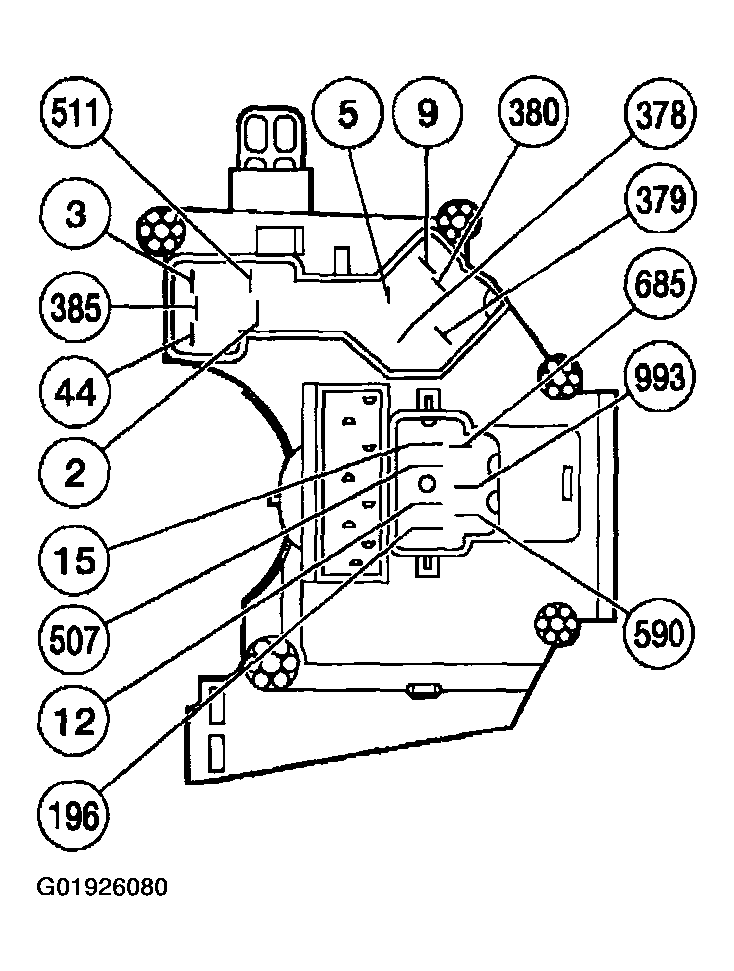

Fig 1: Identifying Multi-Function Switch Terminals

Courtesy of MAZDA MOTORS CORP.

1. Measure the resistance between the multi-function switch terminals.

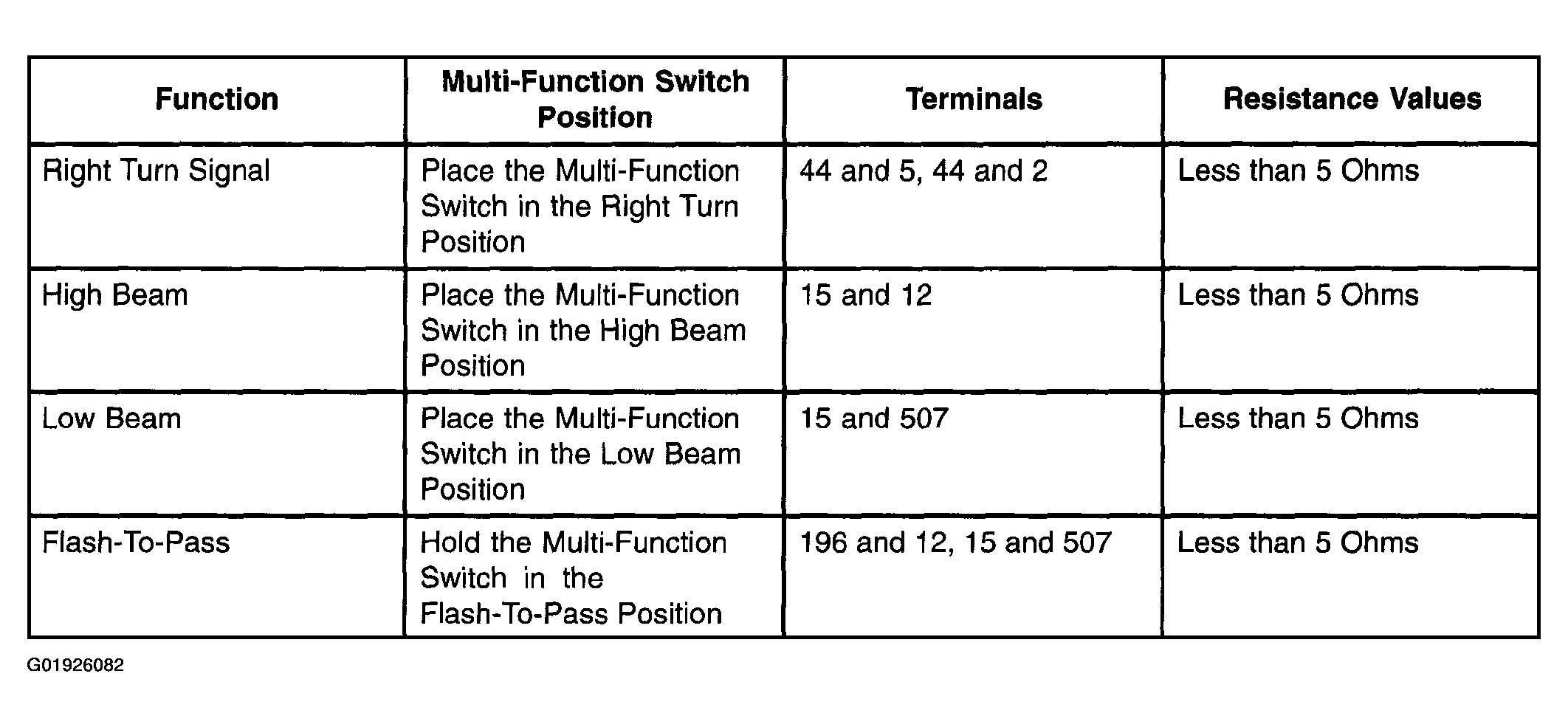

   Fig 2: Multi-Function Switch Terminals Specifications (1 Of 2)

   Courtesy of MAZDA MOTORS CORP.

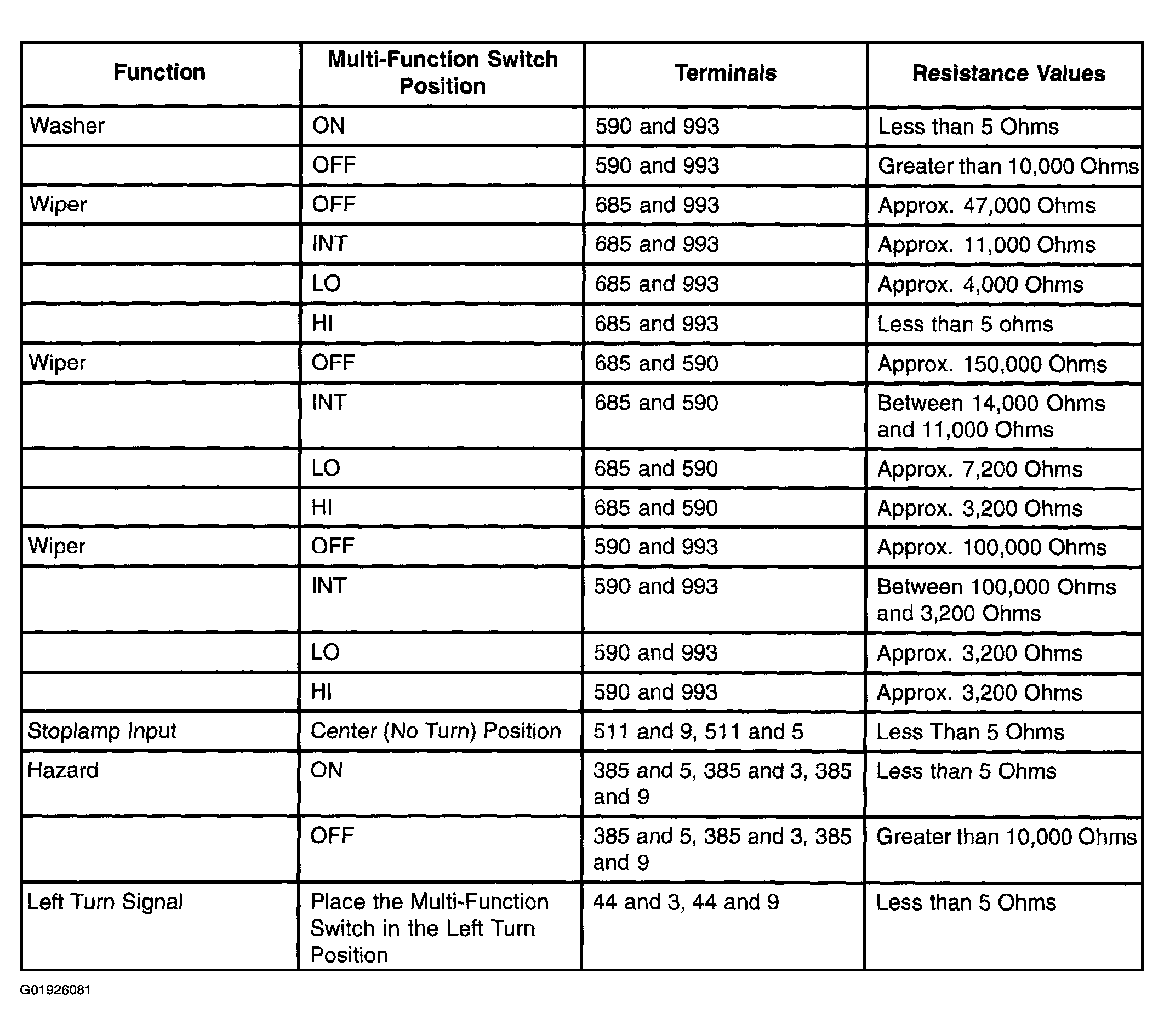

Fig 3: Multi-Function Switch Terminals Specifications (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

If the resistances are as specified, the multi-function switch is OK. Return the multi-function switch to the vehicle. Test the system for normal operation. If the resistances are not as specified, replace the multi-function switch. See MULTI-FUNCTION SWITCH REMOVAL/INSTALLATION  . Test the system for normal operation.
