Abs Pinpoint Test 3: No Communication With The Module - 4WABS Control Module

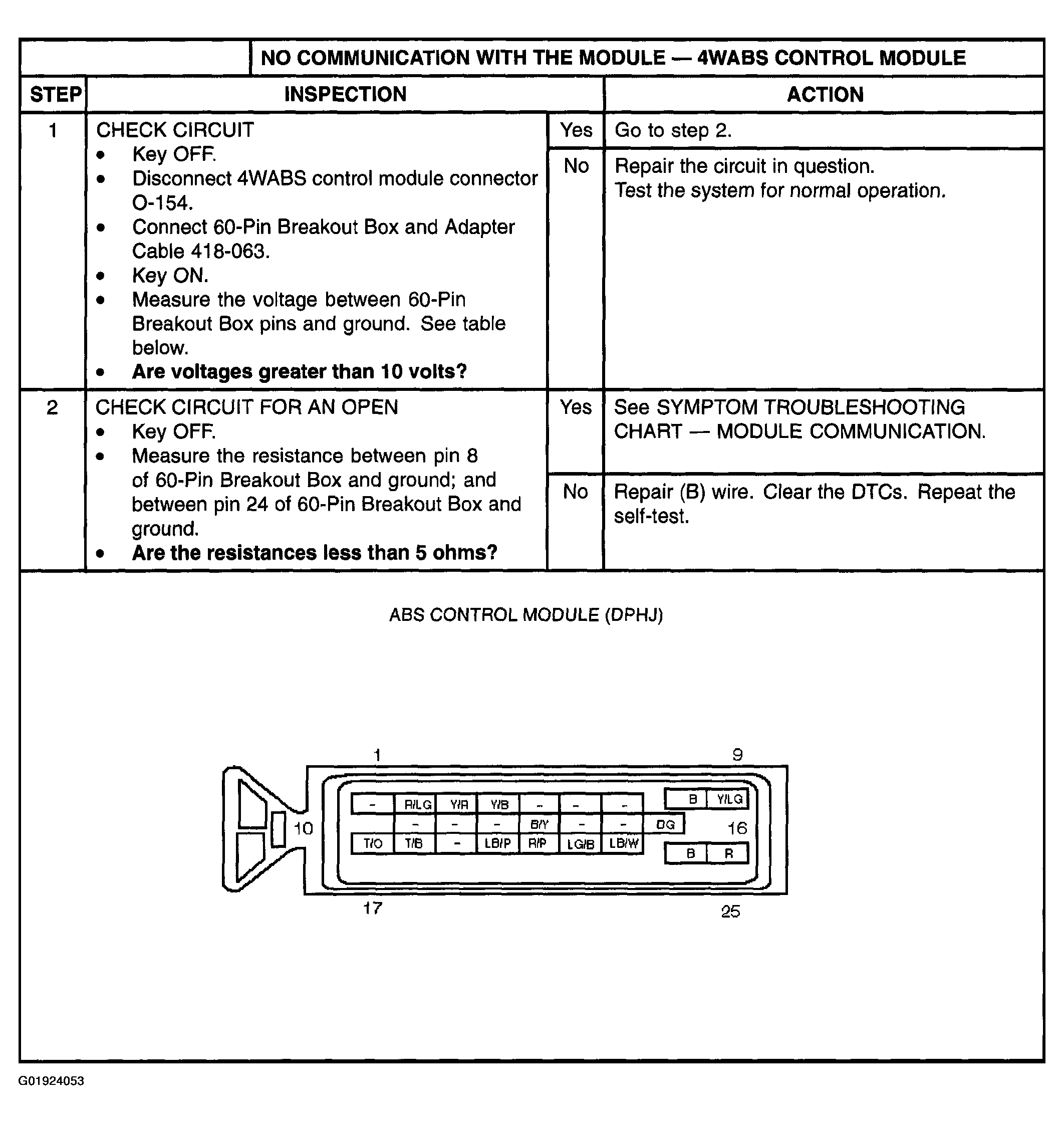

Fig 1: Diagnosis Procedure - ABS Pinpoint Test 3: No Communication With The Module - 4WABS Control Module

Courtesy of MAZDA MOTORS CORP.

Fig 2: 60-Pin Breakout Box Pin/ Circuit Chart

Courtesy of MAZDA MOTORS CORP.
