Pinpoint Test 1: Electronic Shift Functional Test

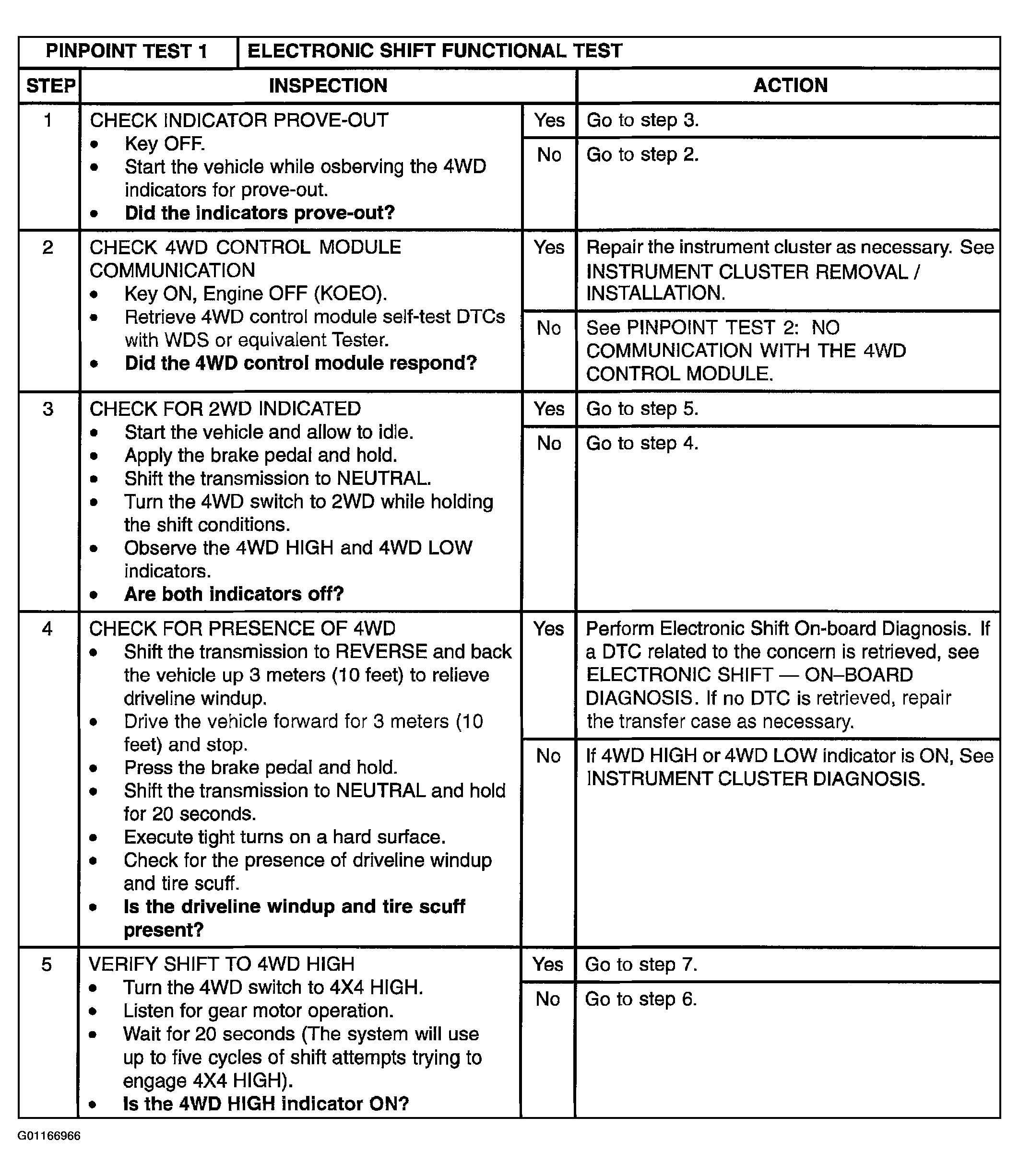

Fig 1: Pinpoint Test 1: Electronic Shift Functional Test (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

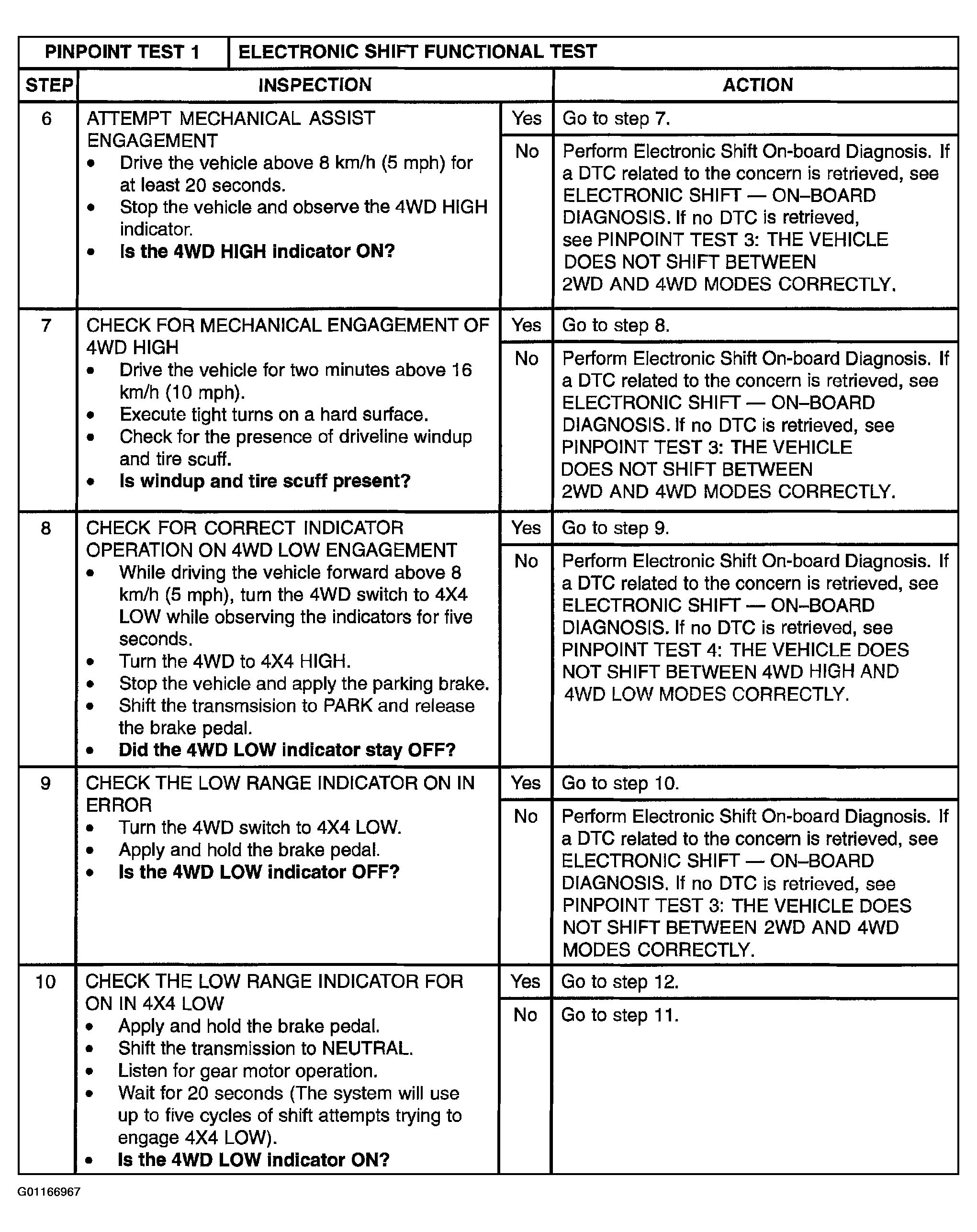

Fig 2: Pinpoint Test 1: Electronic Shift Functional Test (Steps 6-10)

Courtesy of MAZDA MOTORS CORP.

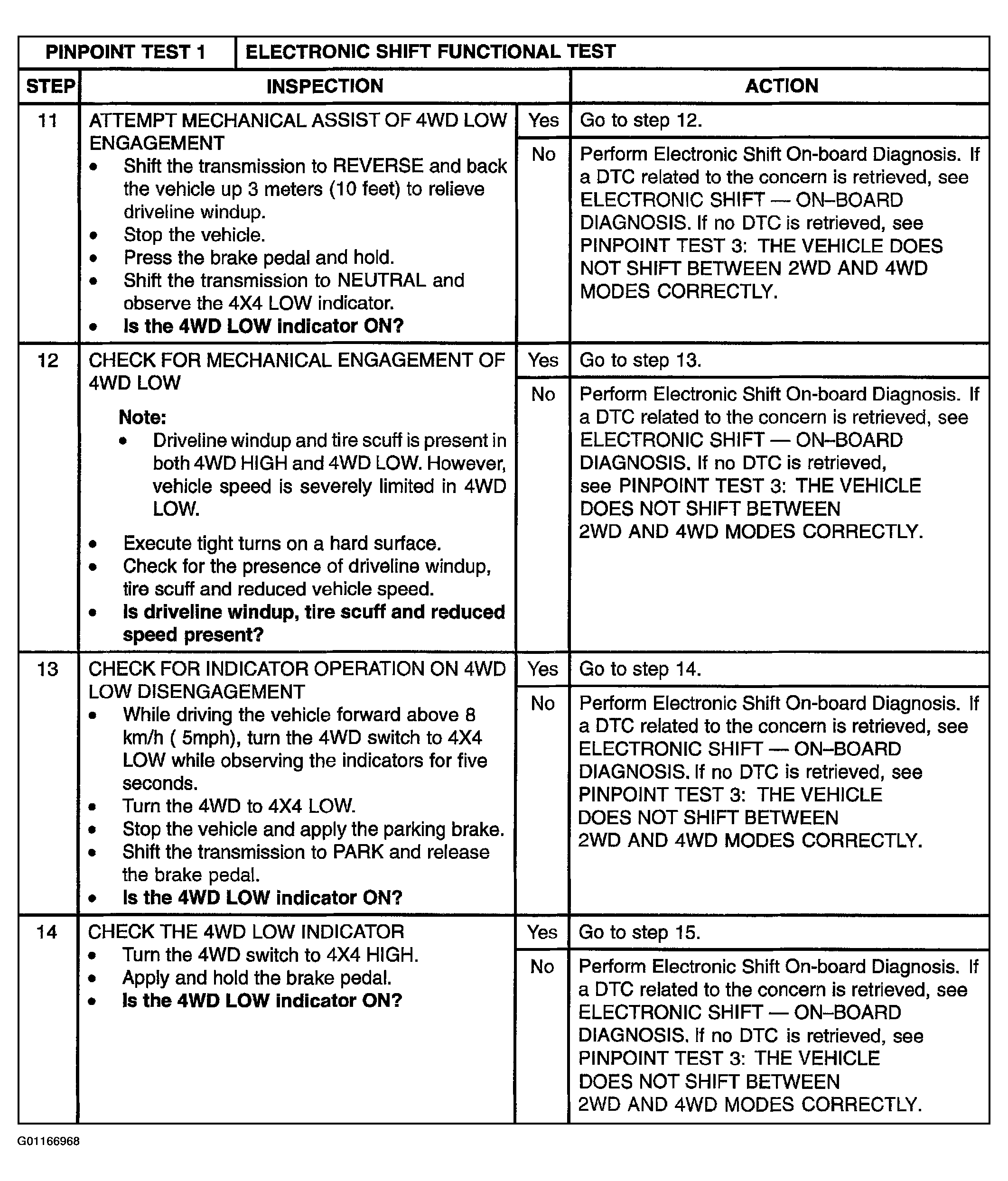

Fig 3: Pinpoint Test 1: Electronic Shift Functional Test (Steps 11-14)

Courtesy of MAZDA MOTORS CORP.

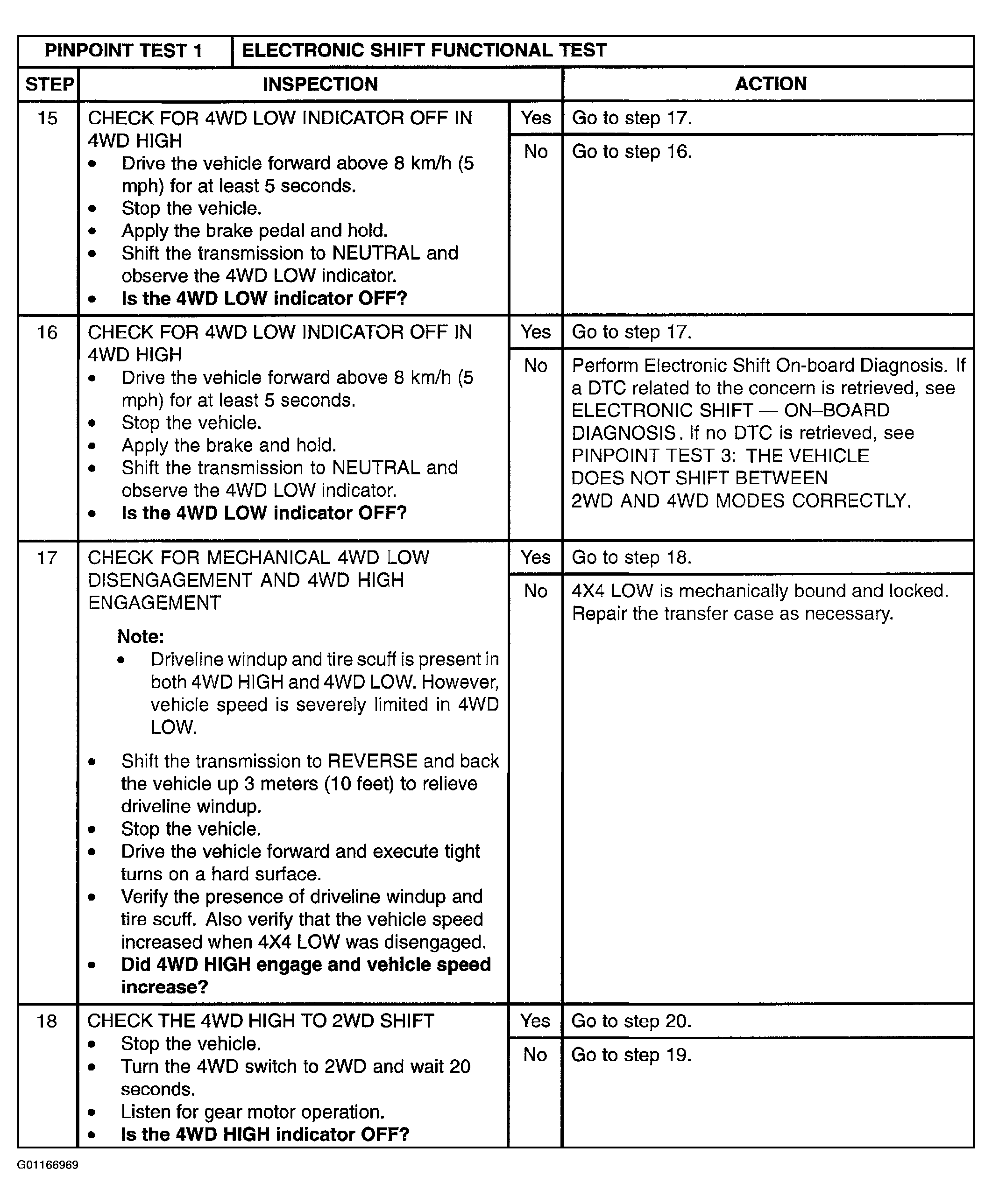

Fig 4: Pinpoint Test 1: Electronic Shift Functional Test (Steps 15-18)

Courtesy of MAZDA MOTORS CORP.

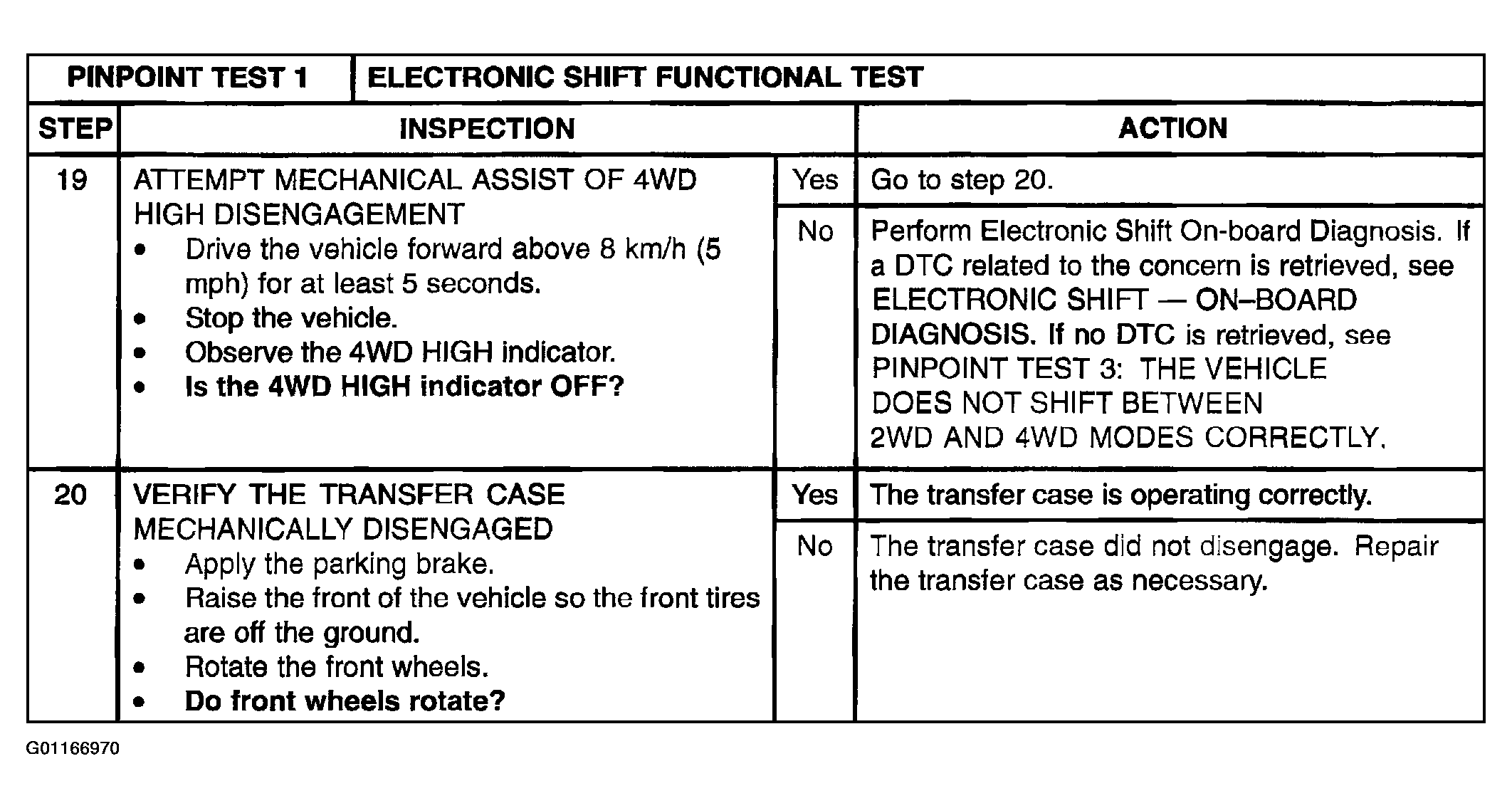

Fig 5: Pinpoint Test 1: Electronic Shift Functional Test (Steps 19-20)

Courtesy of MAZDA MOTORS CORP.
