Shift Control Switch Removal/Installation

  1. Remove the Mode Select Switch (MSS) knob.

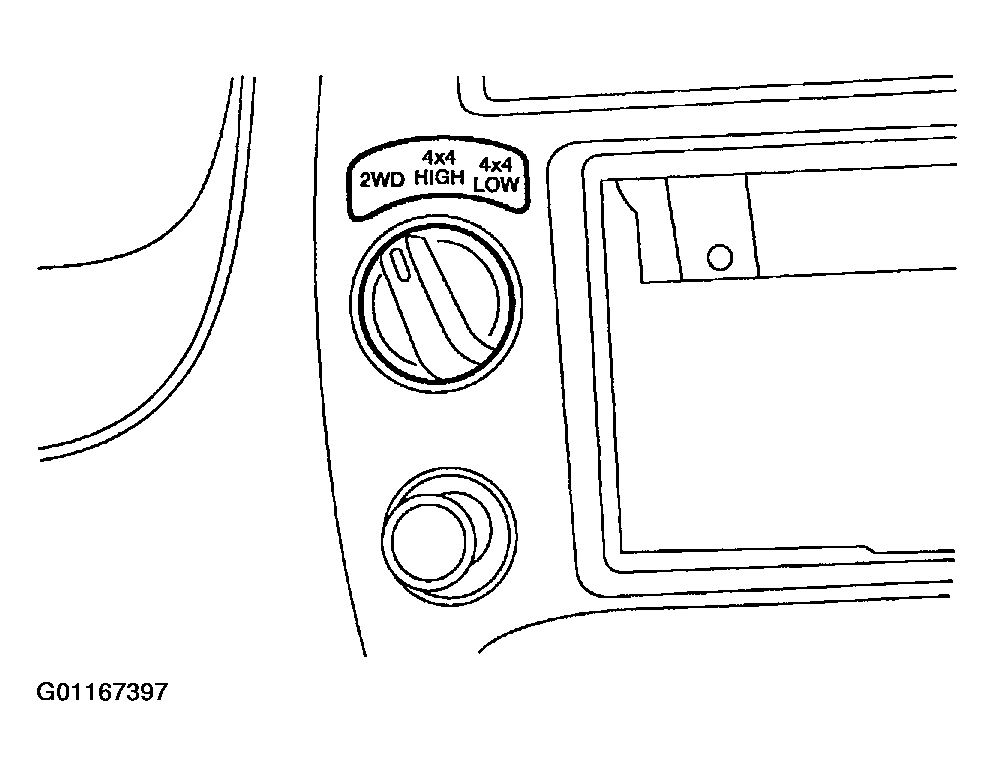

    Fig 1: Removing Mode Select Switch Knob
    G01167397Courtesy of MAZDA MOTORS CORP.
  2. Remove the audio unit.
  3. Remove the screws and pull out the instrument panel center finish panel out of the instrument panel.

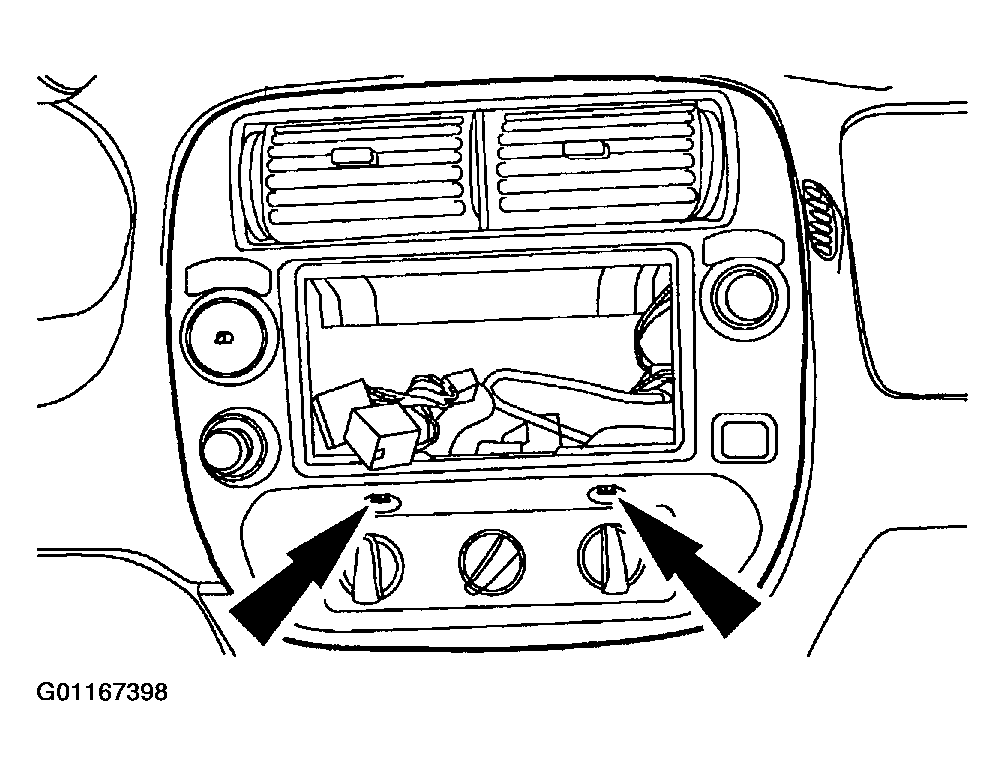

    Fig 2: Removing Instrument Panel Center Finish Panel Screws
    G01167398Courtesy of MAZDA MOTORS CORP.
  4. Remove the two screws retaining the switch, and remove the switch.
    Fig 3: Removing Mode Select Switch
    G01167399Courtesy of MAZDA MOTORS CORP.
  5. Install in reverse order of removal.
