Symptom Troubleshooting Chart - Power Steering

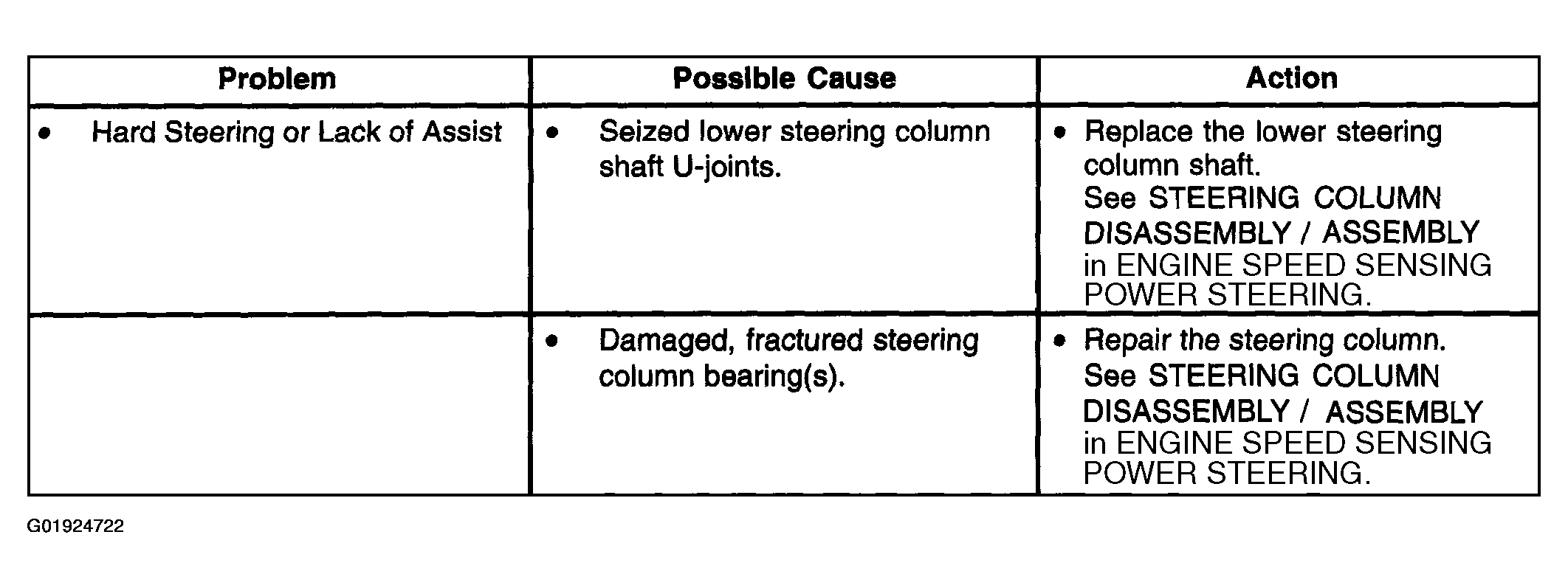

Fig 1: Power Steering Symptom Troubleshooting Chart (1 Of 5)
G01924722Courtesy of MAZDA MOTORS CORP.

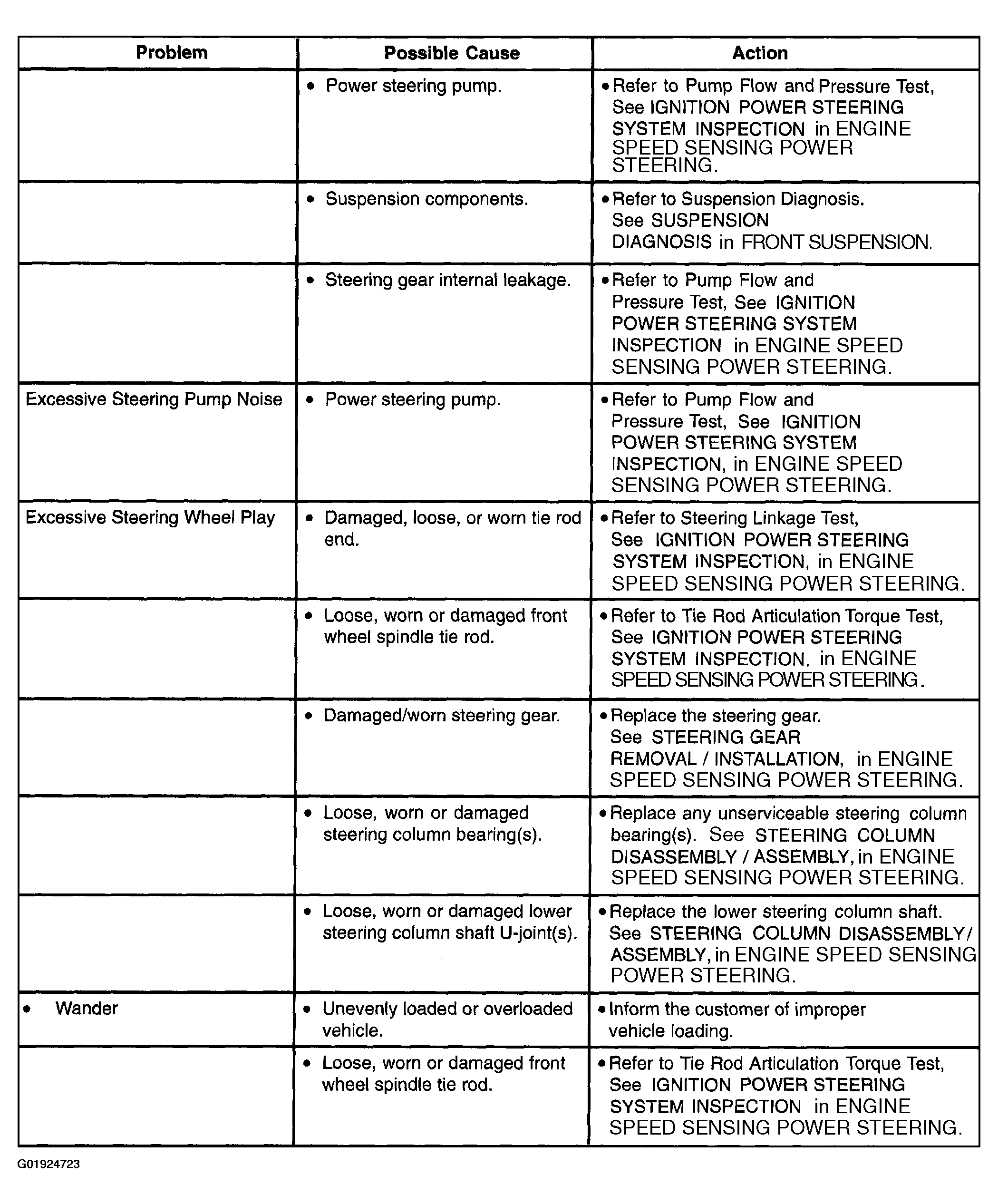

Fig 2: Power Steering Symptom Troubleshooting Chart (2 Of 5)
G01924723Courtesy of MAZDA MOTORS CORP.

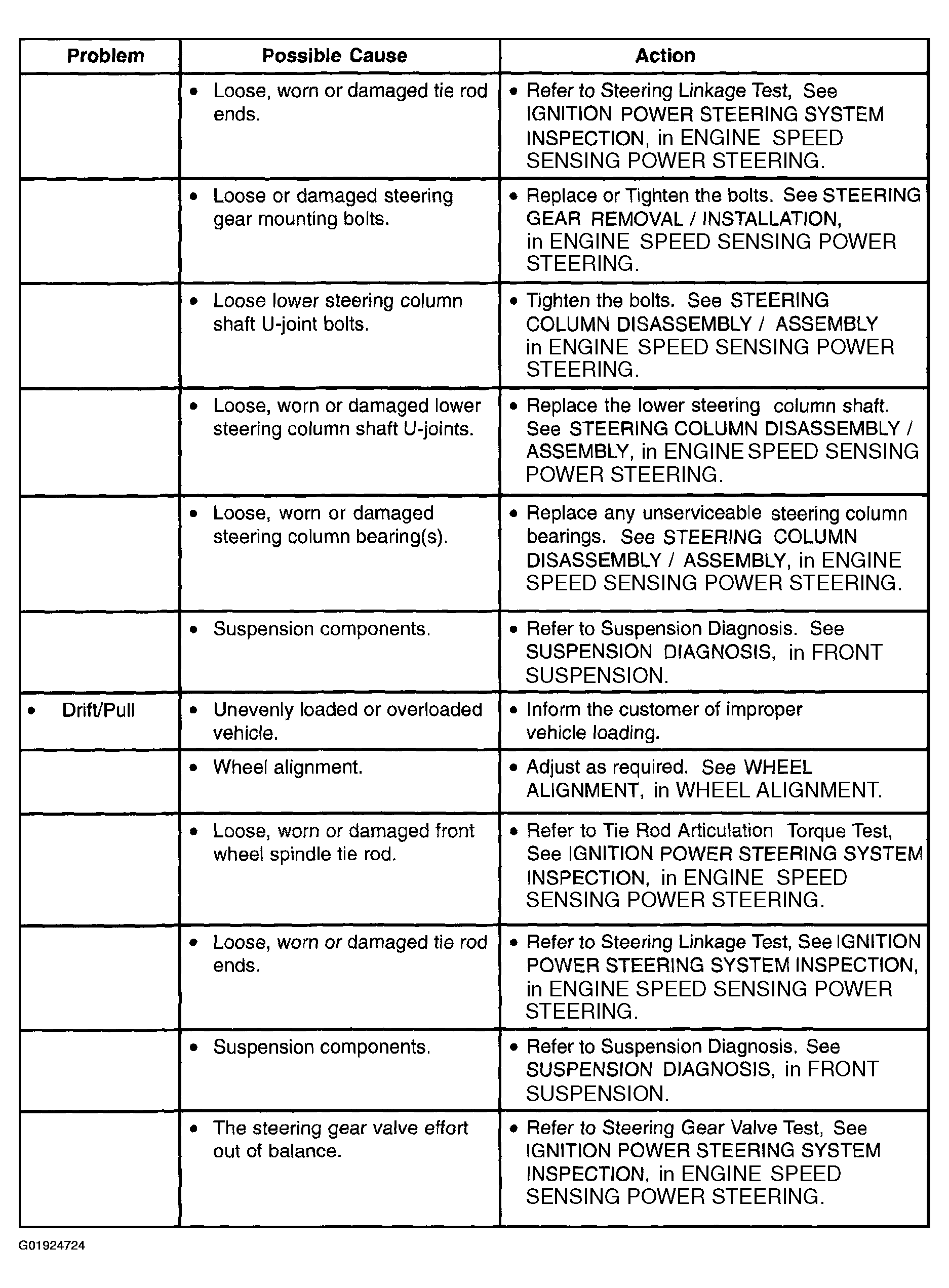

Fig 3: Power Steering Symptom Troubleshooting Chart (3 Of 5)
G01924724Courtesy of MAZDA MOTORS CORP.

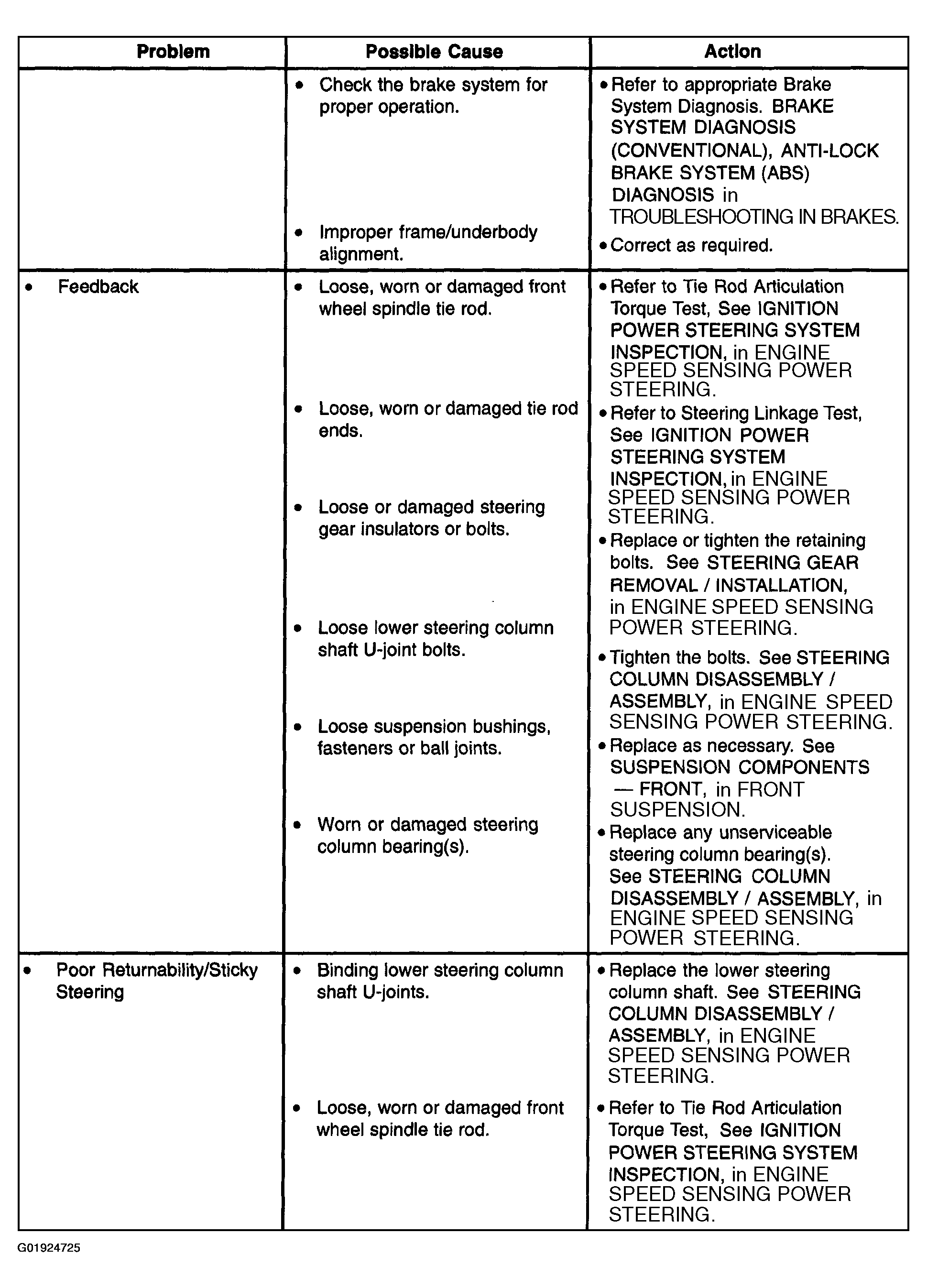

Fig 4: Power Steering Symptom Troubleshooting Chart (4 Of 5)
G01924725Courtesy of MAZDA MOTORS CORP.

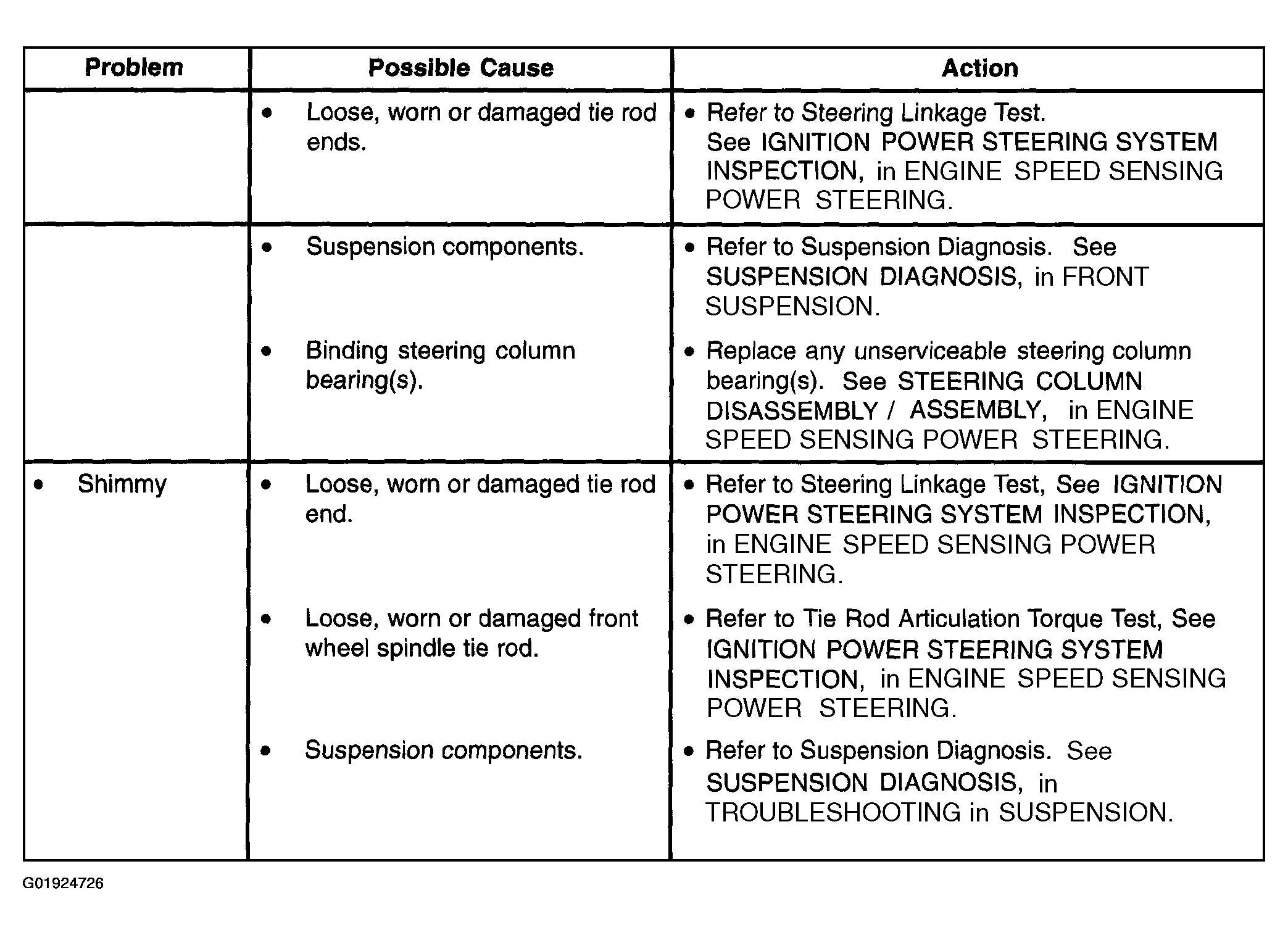

Fig 5: Power Steering Symptom Troubleshooting Chart (5 Of 5)
G01924726Courtesy of MAZDA MOTORS CORP.
