DTC 07: Brake Switch, Brake Switch 2: Notes

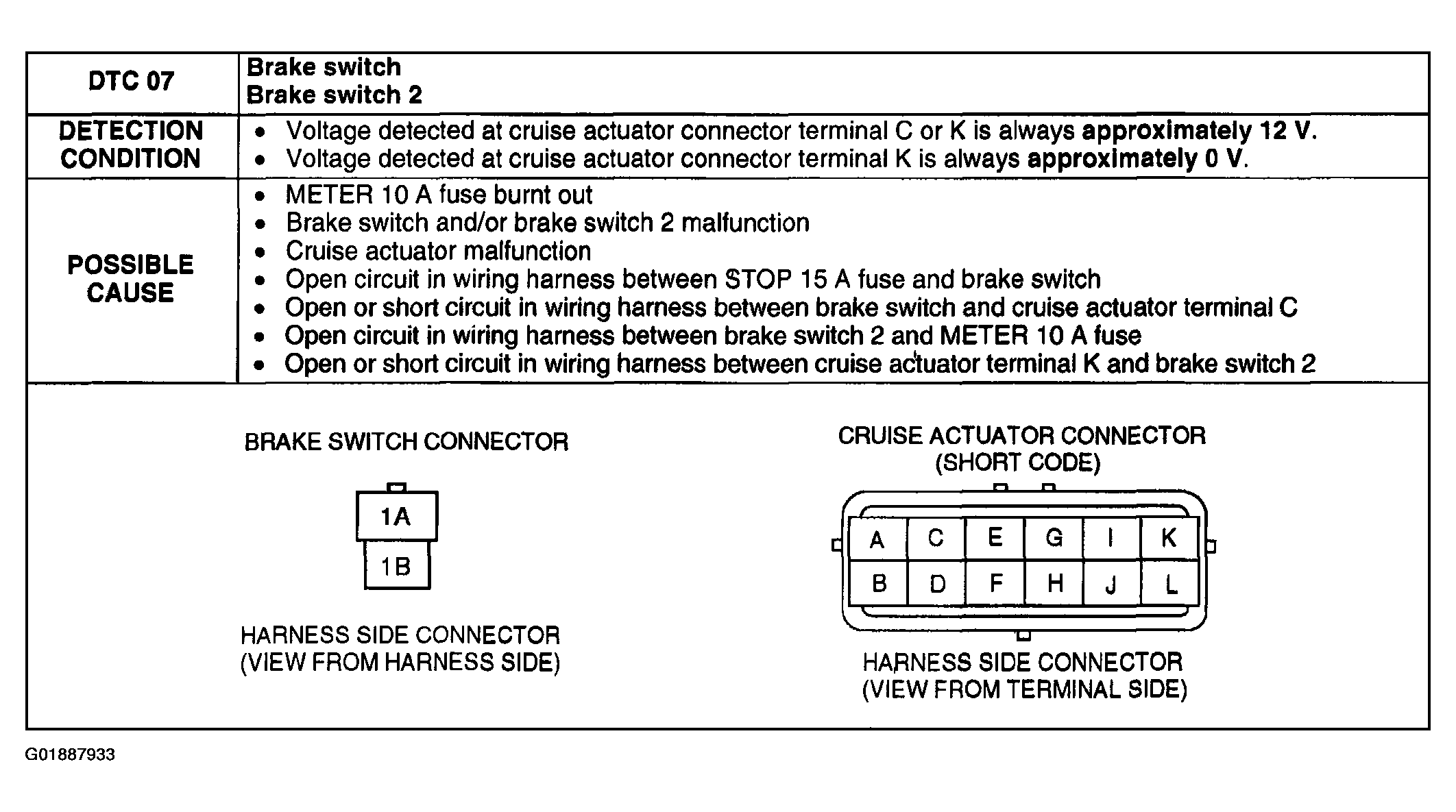

Fig 1: Inspection Of Diagnostic Trouble Code (DTC 07)
G01887933Courtesy of MAZDA MOTORS CORP.
