Lighting Systems Location Index

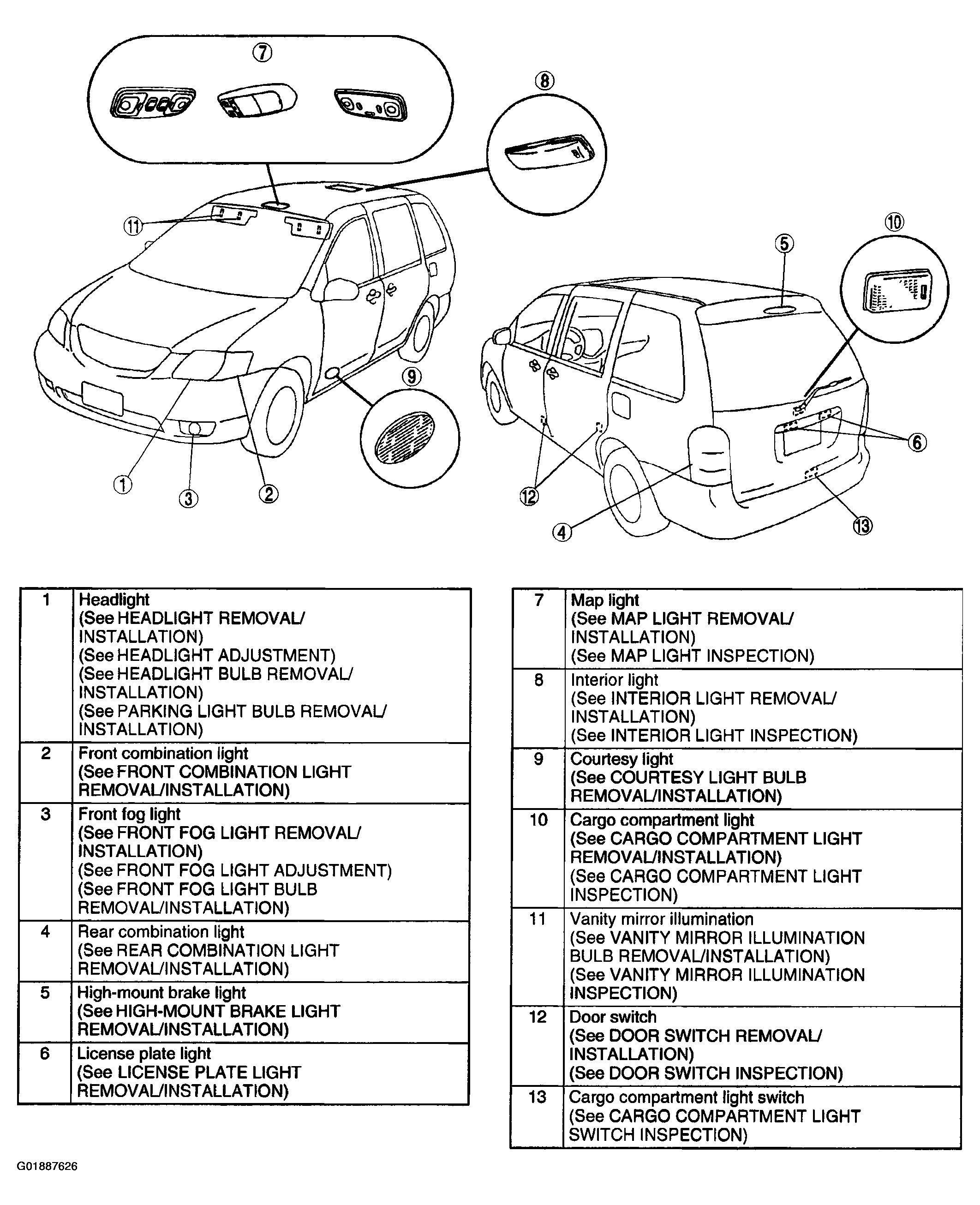

Fig 1: Lighting Systems Location Index (1 Of 2)
G01887626Courtesy of MAZDA MOTORS CORP.

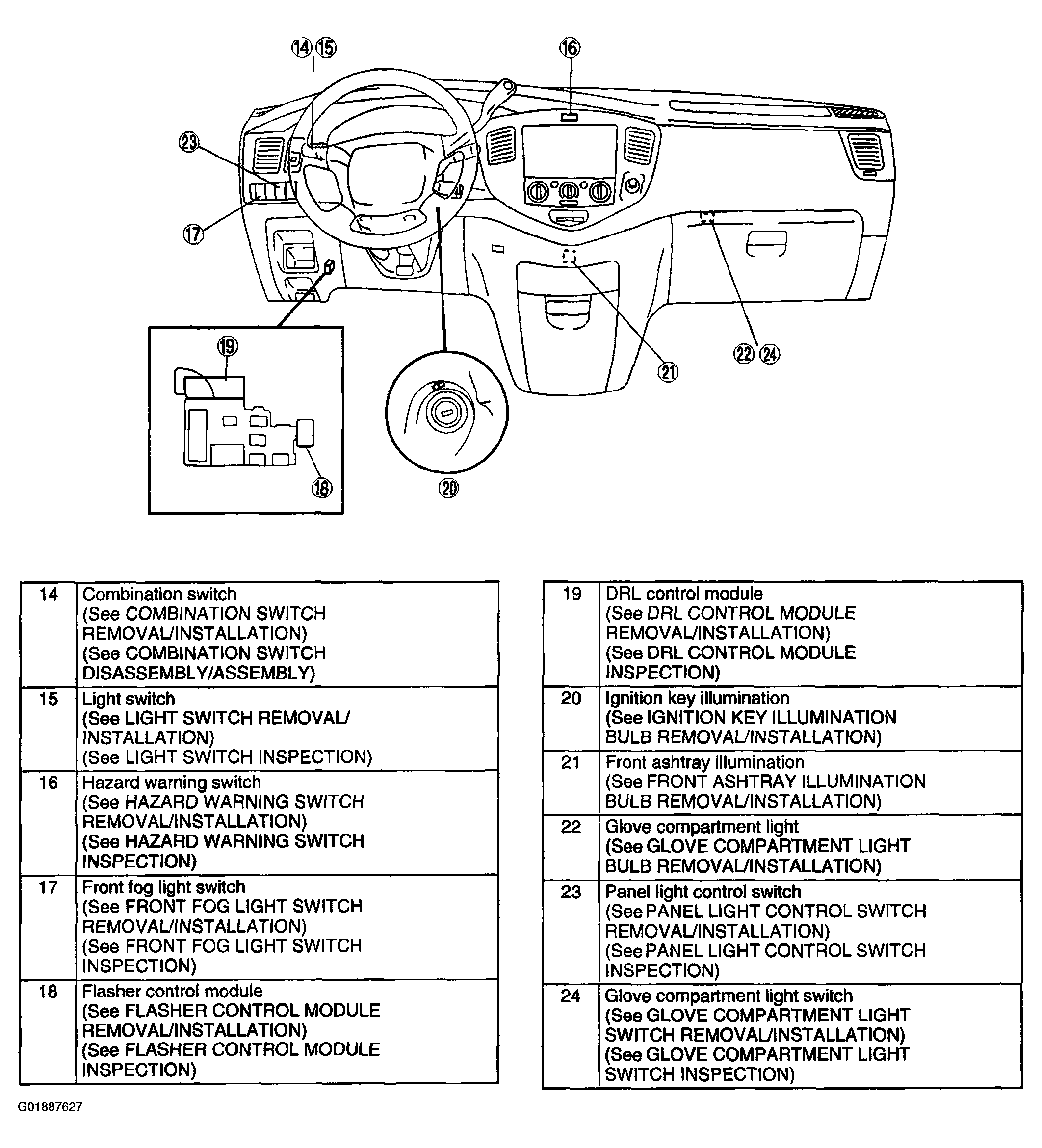

Fig 2: Lighting Systems Location Index (2 Of 2)
G01887627Courtesy of MAZDA MOTORS CORP.
