Audio Unit Removal/Installation
- Disconnect the negative battery cable.
- Remove the meter hood. (See
METER HOOD REMOVAL/INSTALLATION
.)

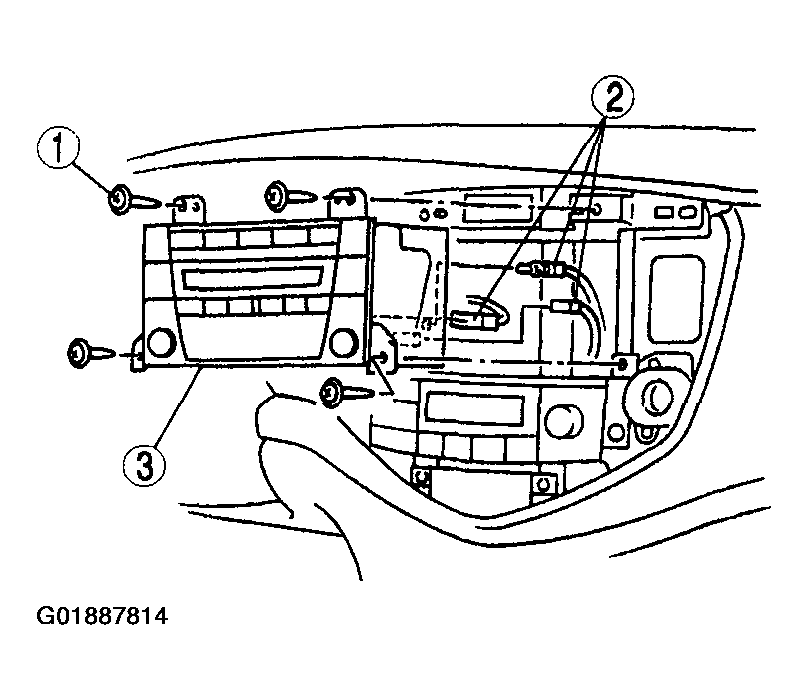

- Remove in the order indicated in the figures.
CAUTION:
- Make certain that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the harness or the antenna feeder is caught between the unit and dashboard, it may cause trouble or malfunctions.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
