Engine Mount Member Removal Note

  1. Remove the wiper motor and link. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
  2. Suspend the engine using the SSTs.

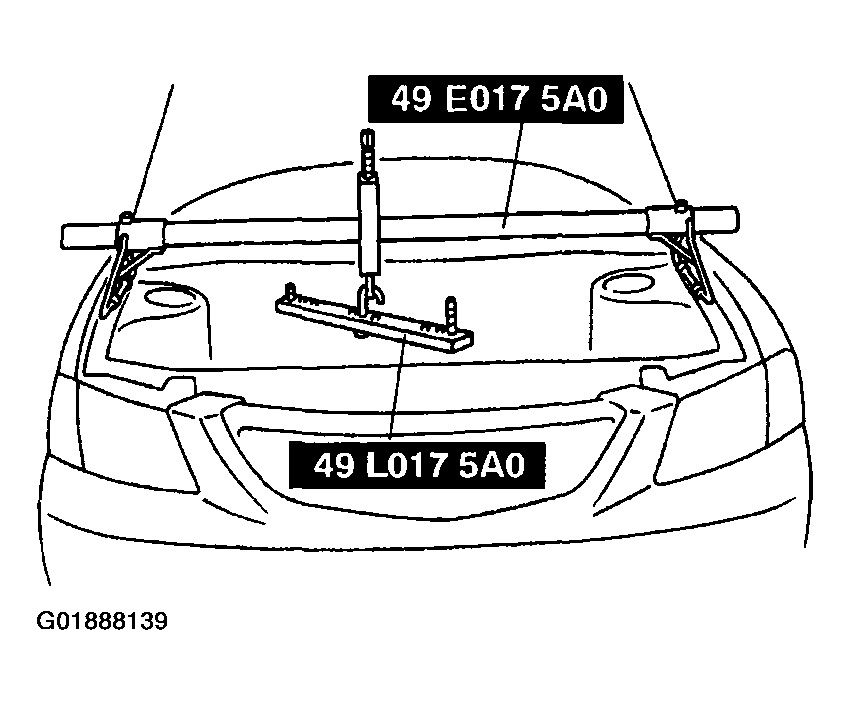

    Fig 1: Suspending Engine Using SSTs
    G01888139Courtesy of MAZDA MOTORS CORP.
  3. Remove the No. 2 engine mount nut A.
    Fig 2: Removing No. 2 Engine Mount Nut A
    G01888140Courtesy of MAZDA MOTORS CORP.
