Engine Front Cover Installation Note

  1. Apply a 6 mm {0.24 in}  dot of silicone sealant at the indicated location.

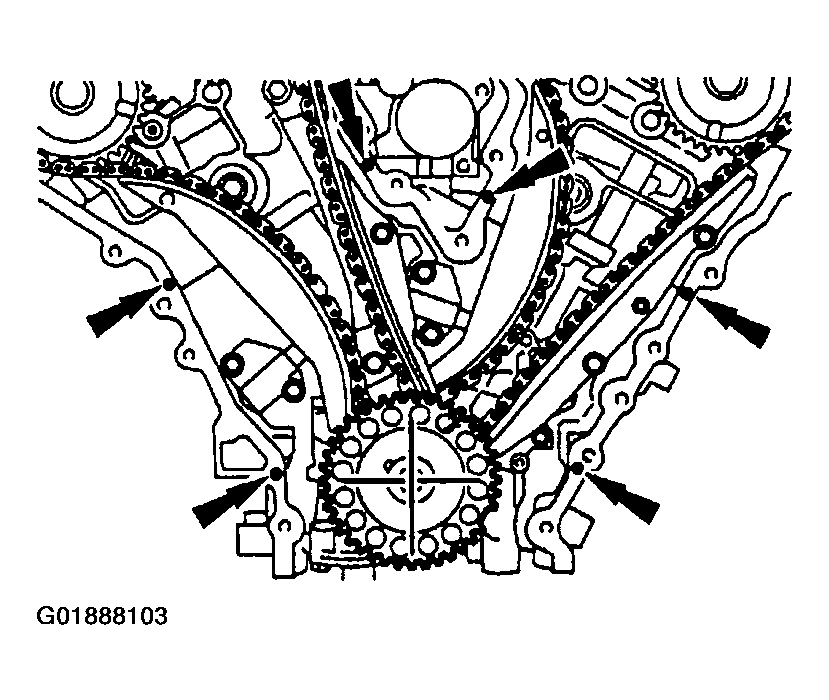

    Fig 1: Apply Dot Of Silicone Sealant To Indicated Locations
    G01888103Courtesy of MAZDA MOTORS CORP.
  2. Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.

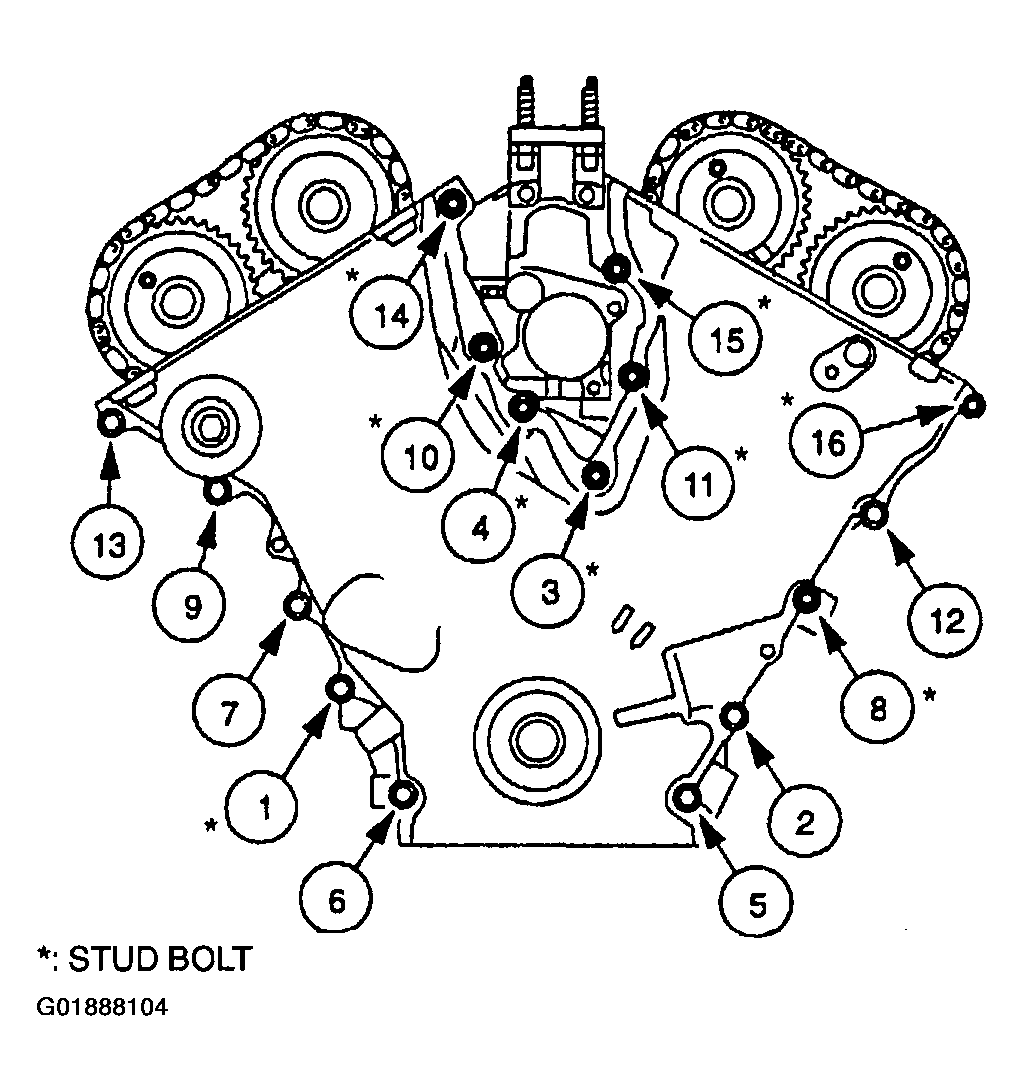

    Fig 2: Bolts And Studs Tightening Sequence
    G01888104Courtesy of MAZDA MOTORS CORP.
