Flywheel Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel to the crankshaft.
When reusing the bolts, clean threads and hole, then apply locking compound to the threads.
NOTE:
- No locking compound is needed when using new bolts.
Hand-tighten the flywheel lock bolts.
Install the SST to the flywheel.
G35M-R manual transaxle models

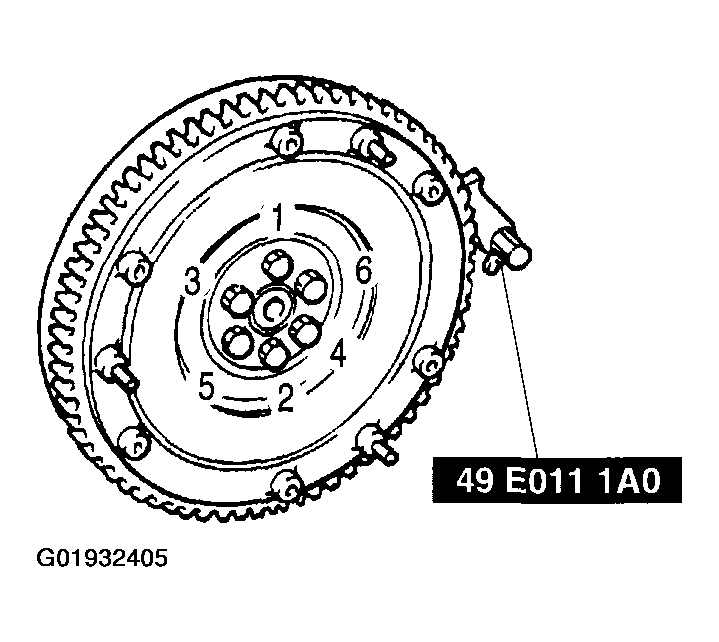

Fig 1: Holding Flywheel (G35M-R)
Courtesy of MAZDA MOTORS CORP.

A65M-R manual transaxle models
Gradually tighten the flywheel lock bolts in a crisscross pattern.
1. Tightening torque
2. G35M-R manual transaxle models 108-115 N.m {11.1-11.7 kgf.m, 79.7-84.8 ft.lbf}
3. A65M-R manual transaxle models 73-87 N.m {7.5-8.8 kgf.m, 54-64 ft.lbf}
Fig 2: Holding Flywheel (A65M-R)
Courtesy of MAZDA MOTORS CORP.
