Blower Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the figure below.
    Fig 1: Blower Unit Component Table
    G01883628Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.

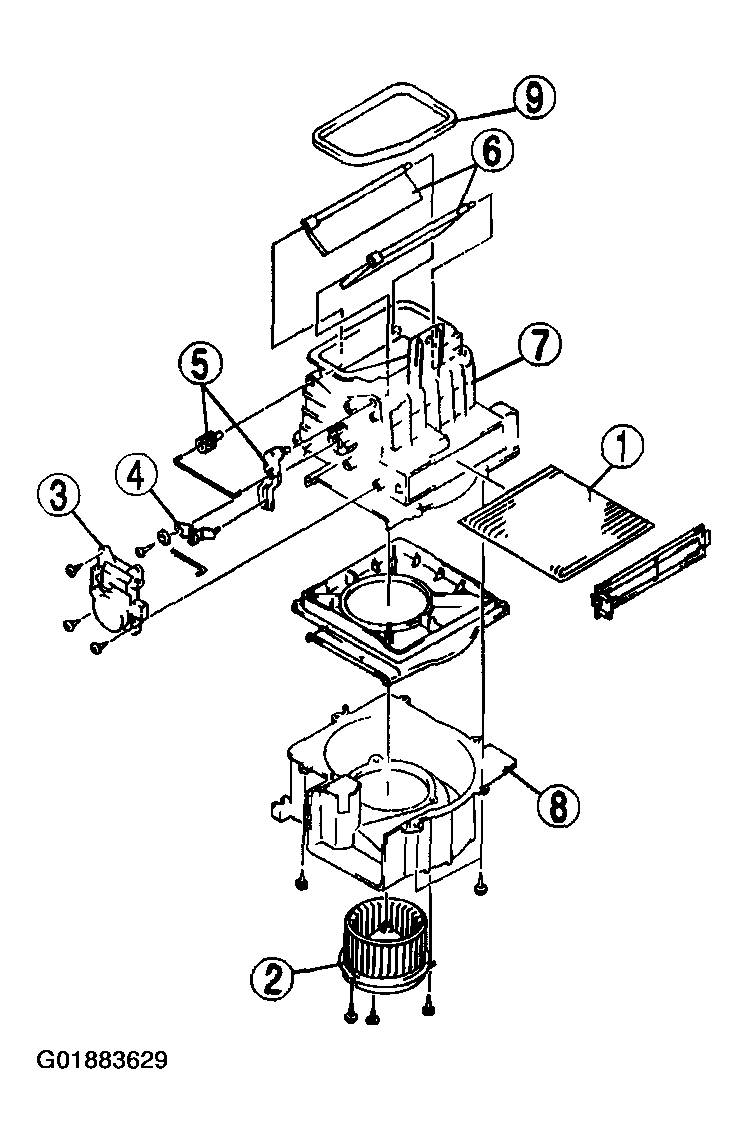

    Fig 2: Exploded View Of Blower Unit
    G01883629Courtesy of MAZDA MOTORS CORP.
