Magnetic Clutch Disassembly/Assembly: Notes

Remove the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION .)
Disassemble in the order indicated in the figures.

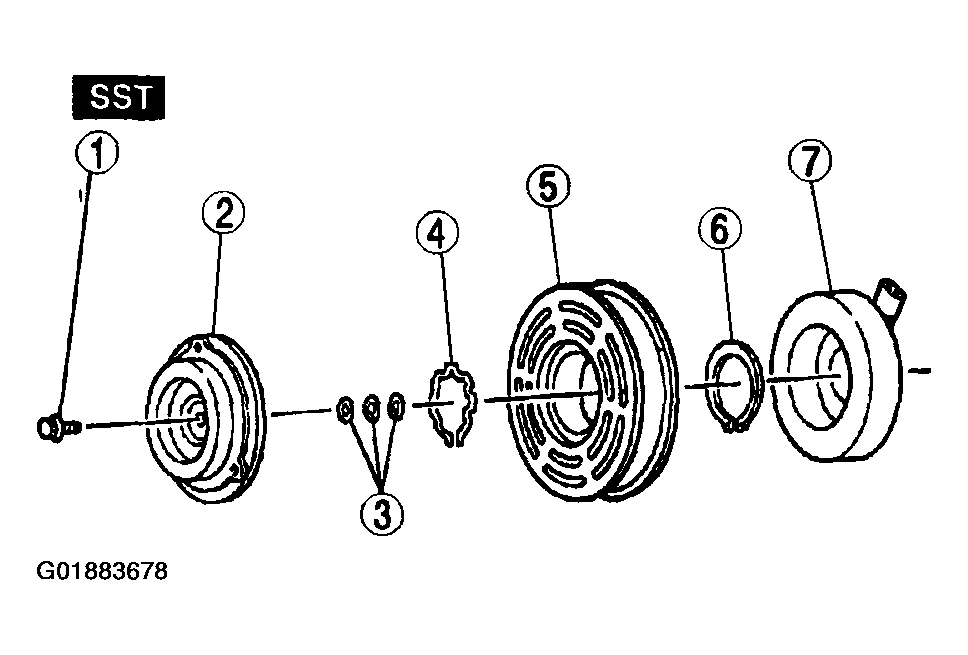

Fig 1: Exploded View Of Magnetic Clutch Assembly
Courtesy of MAZDA MOTORS CORP.

Fig 2: Magnetic Clutch Disassembly Sequence
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
