Suspension Technical Data

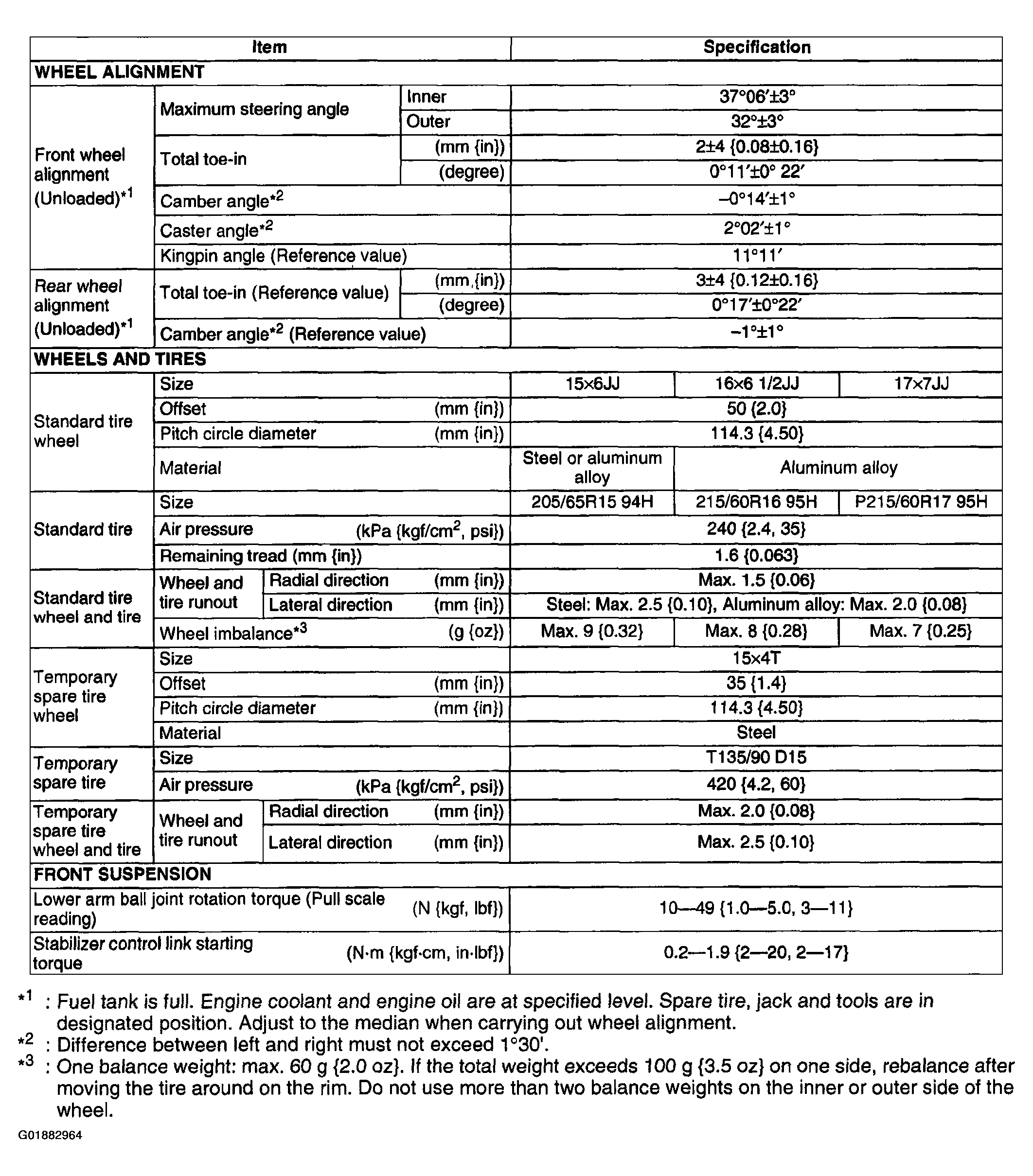

Fig 1: Suspension Technical Specification Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
