Automatic Transaxle Cross-Sectional View

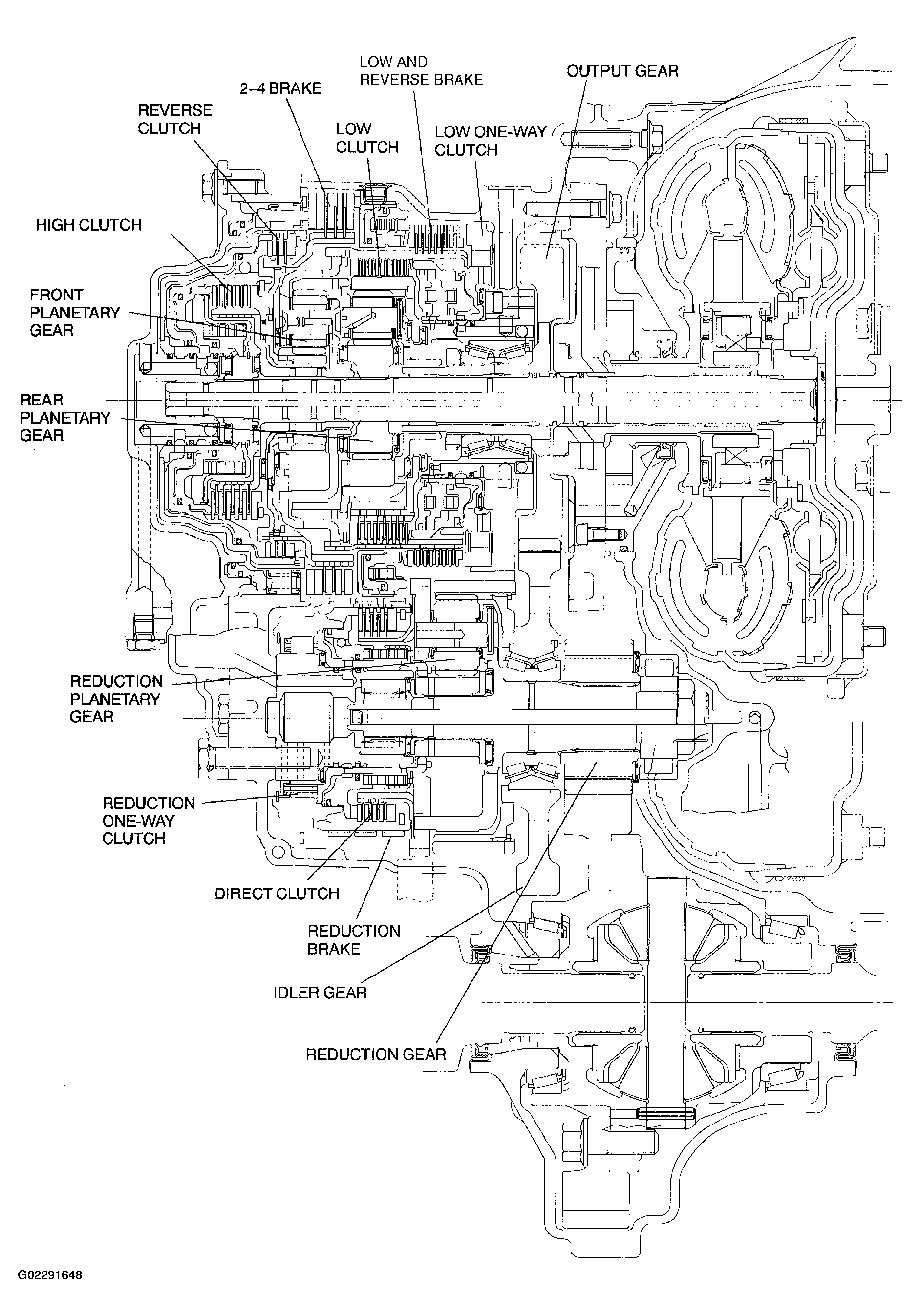

Fig 1: Transaxle Cross-Sectional View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
