Disassembly Components: Notes

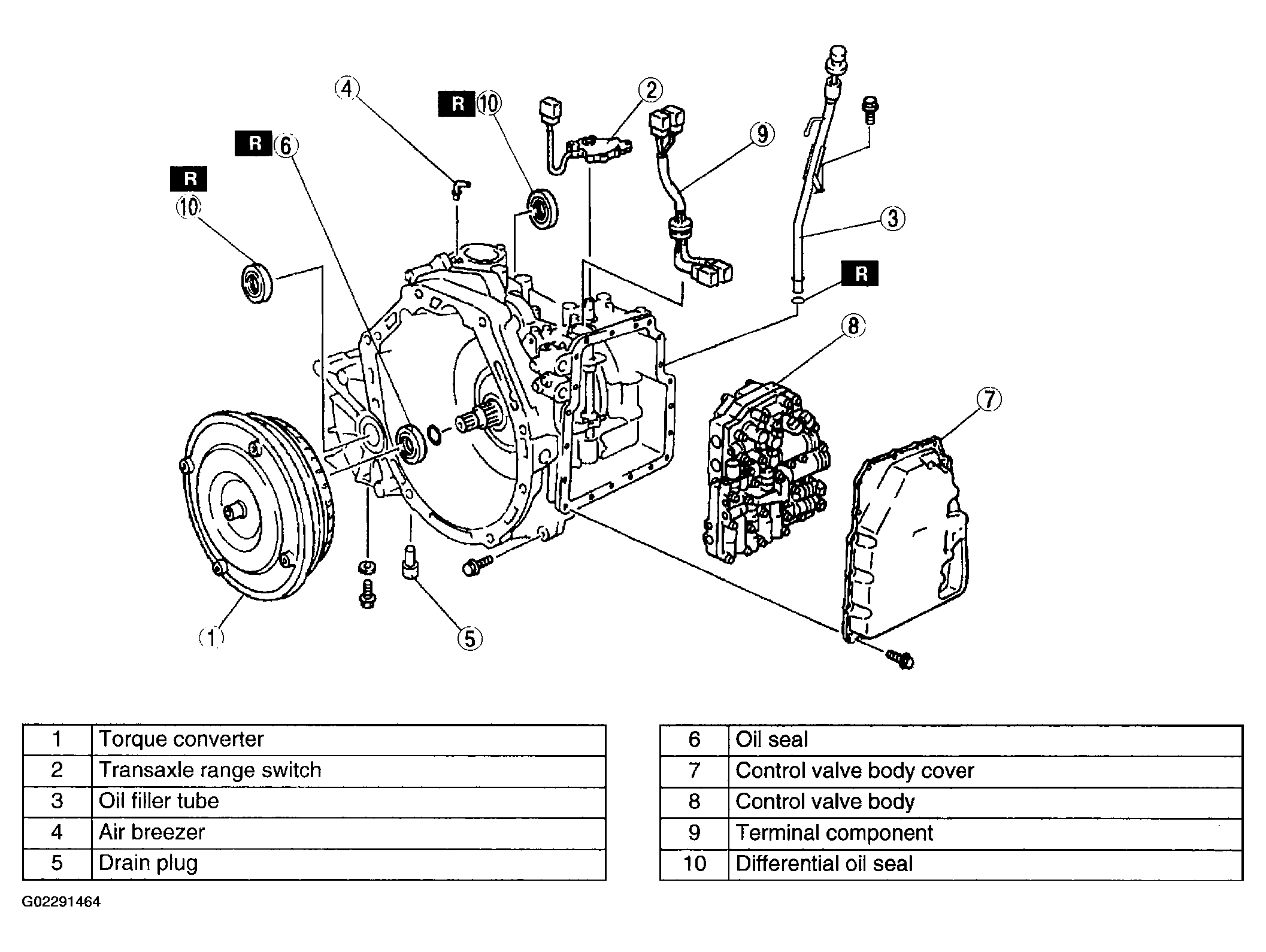

Fig 1: Identifying Transaxle External Components
G02291464Courtesy of MAZDA MOTORS CORP.

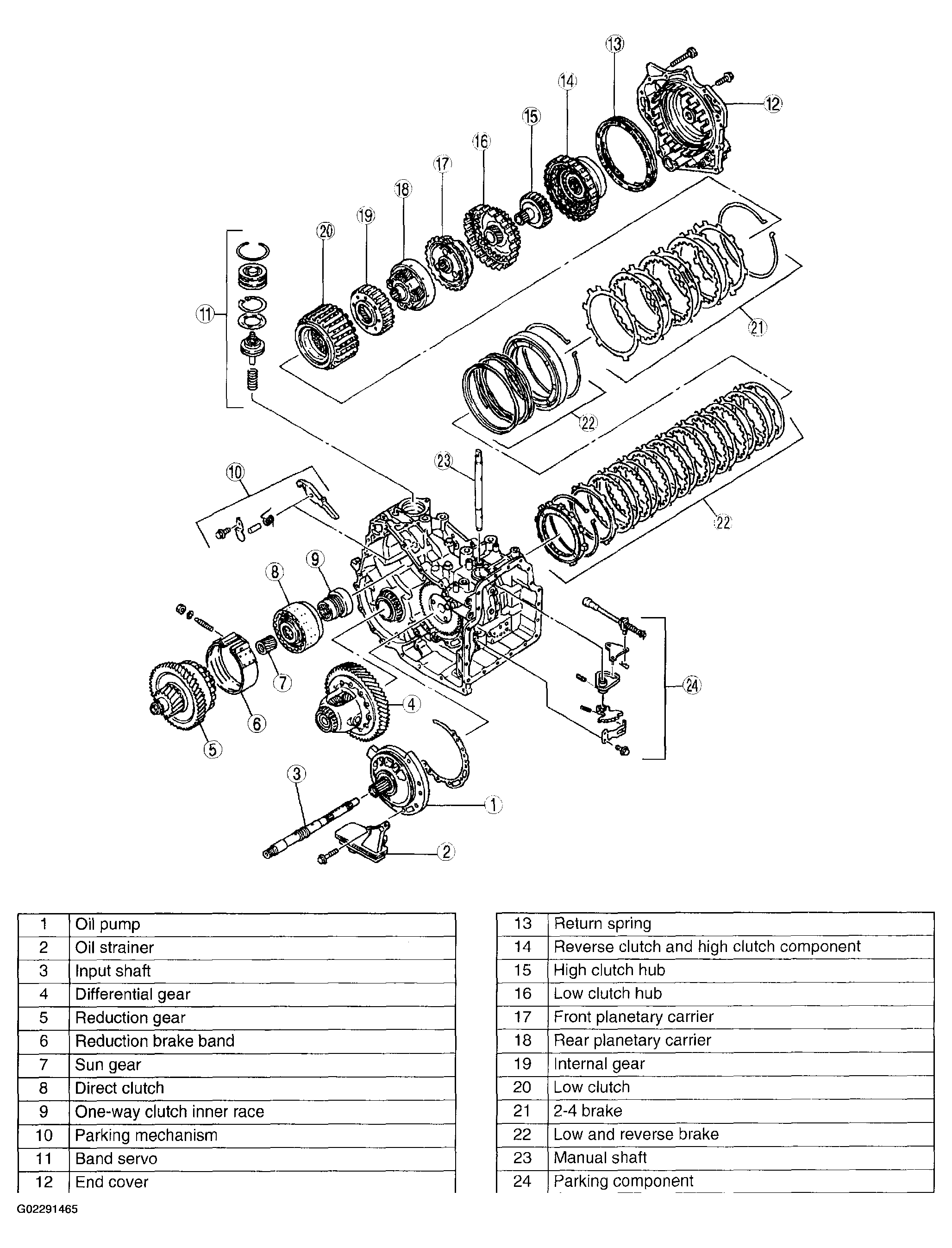

Fig 2: Identifying Transaxle Internal Components
G02291465Courtesy of MAZDA MOTORS CORP.
