Component Descriptions

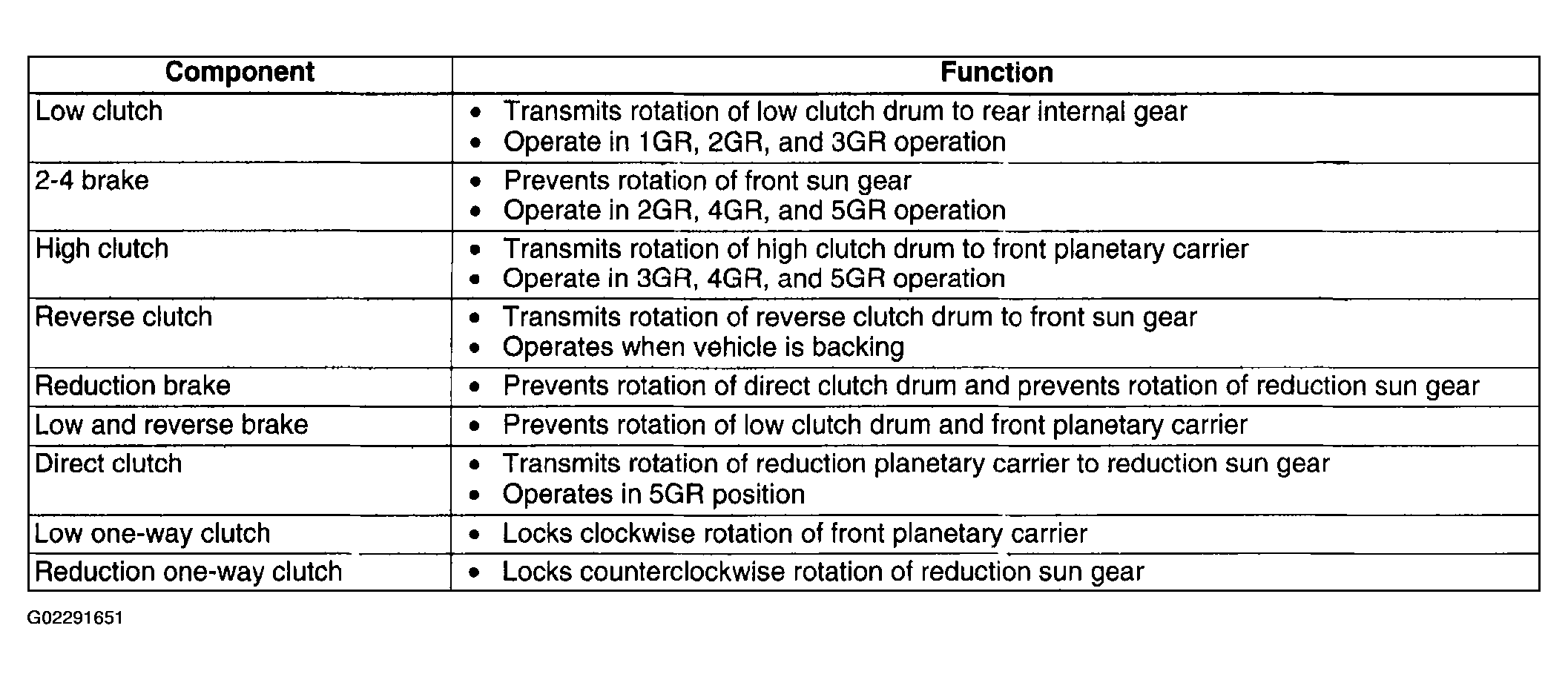

Fig 1: Component Function Chart
G02291651Courtesy of MAZDA MOTORS CORP.
NOTE: All rotations are viewed from the side cover.

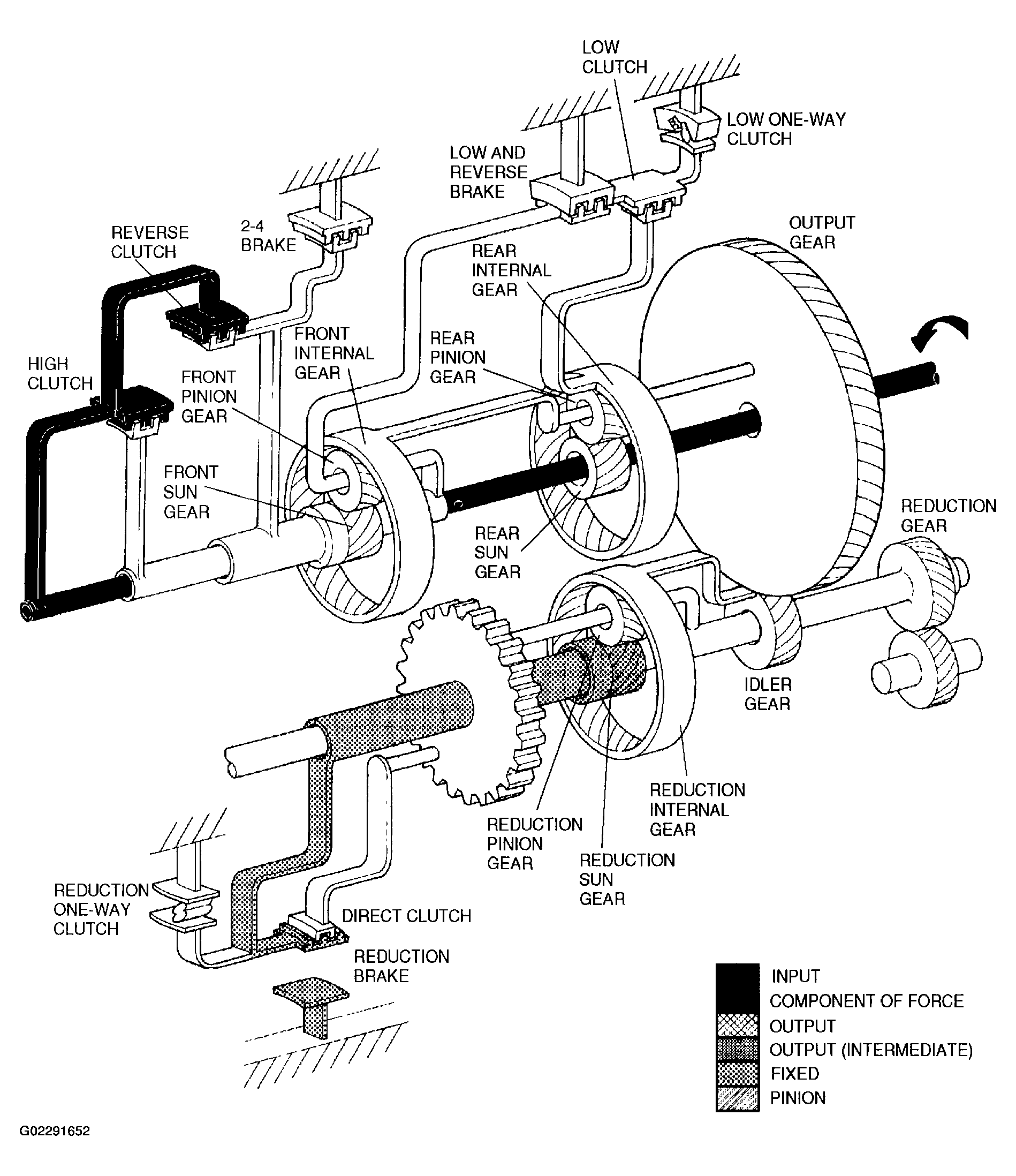

Fig 2: Identifying Powertrain Power Flow
G02291652Courtesy of MAZDA MOTORS CORP.
