Control Valve Component Description

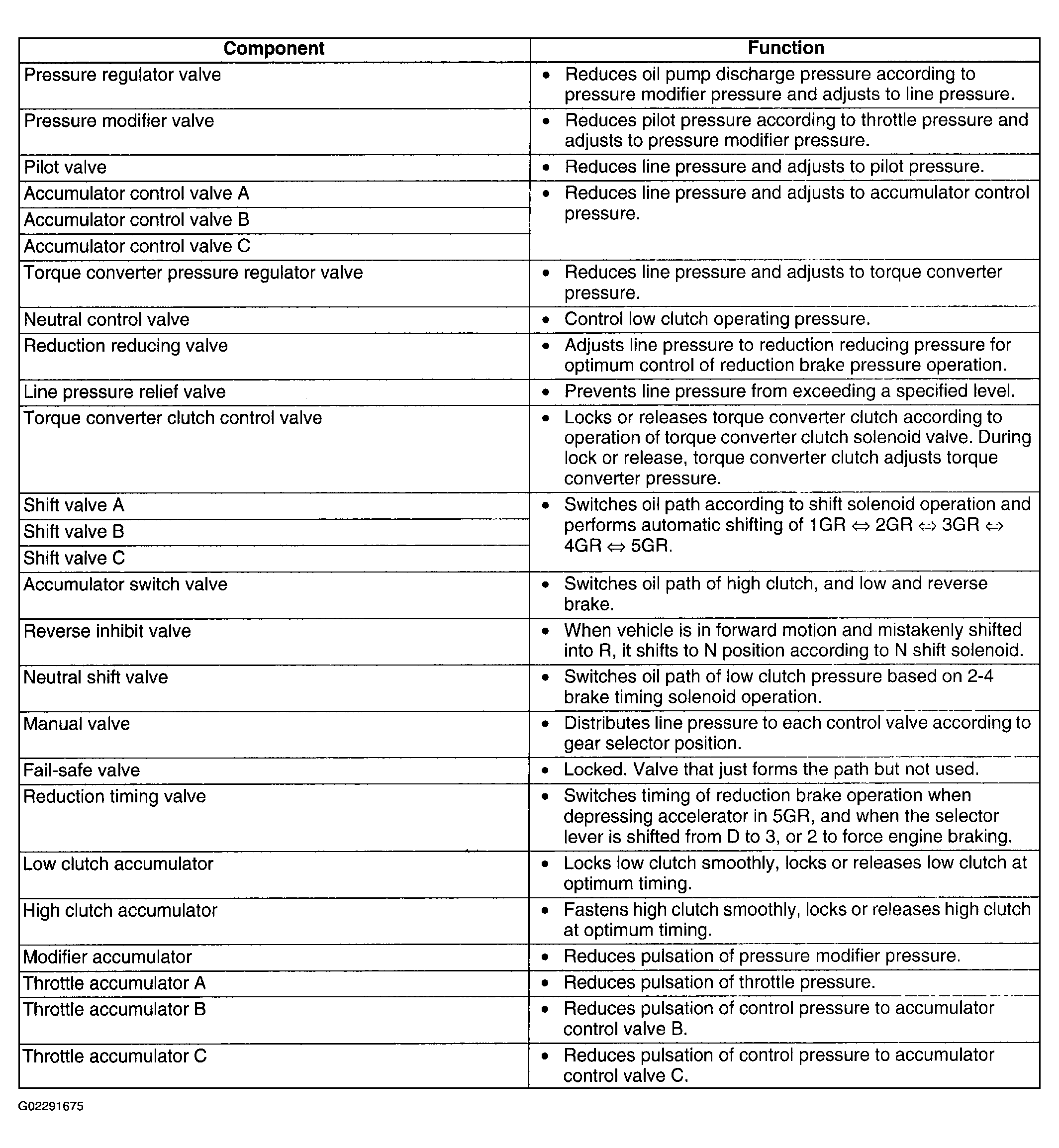

Fig 1: Control Valve Component Description & Function Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
