Control Valve Component Location

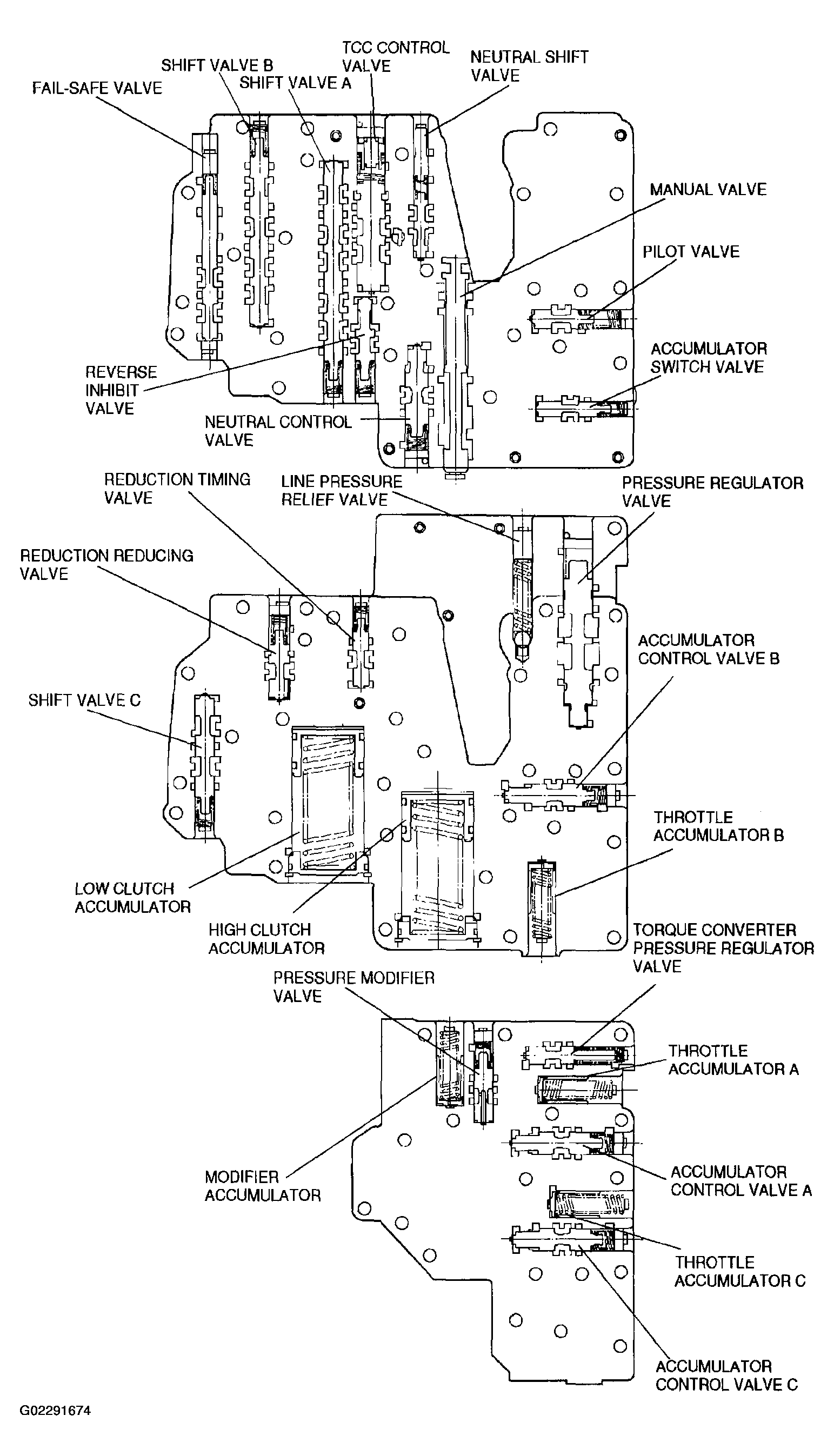

Fig 1: Identifying Control Valve Component Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
