Oil Pump Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

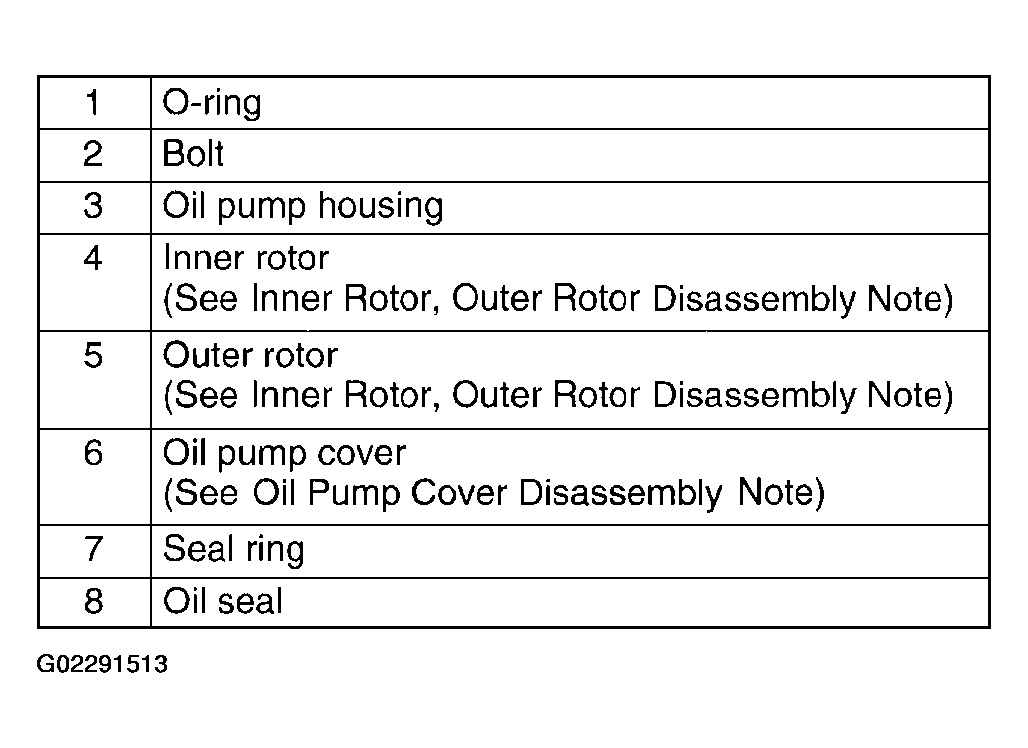

    Fig 1: Disassembling Oil Pump (Legend)
    G02291513Courtesy of MAZDA MOTORS CORP.

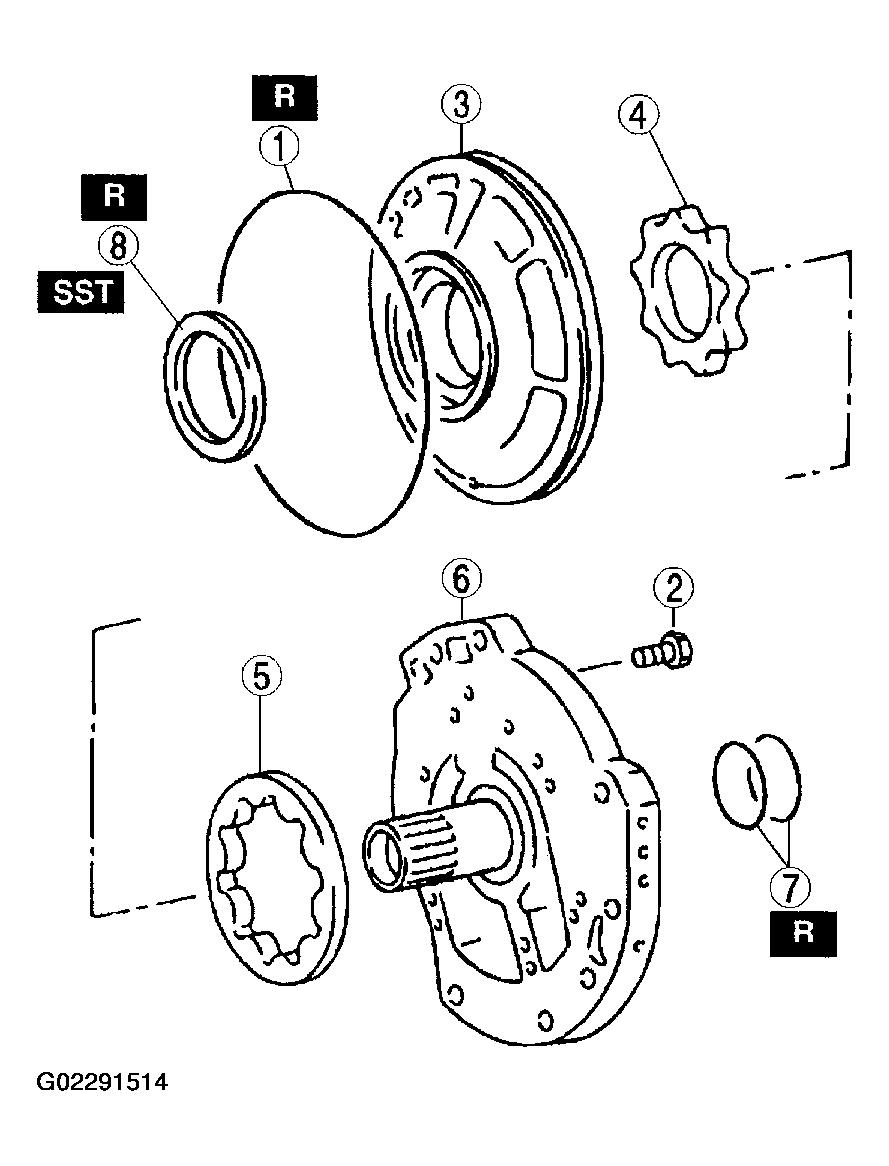

    Fig 2: Disassembling Oil Pump (Component Identification)
    G02291514Courtesy of MAZDA MOTORS CORP.
