Parking Mechanism Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure.

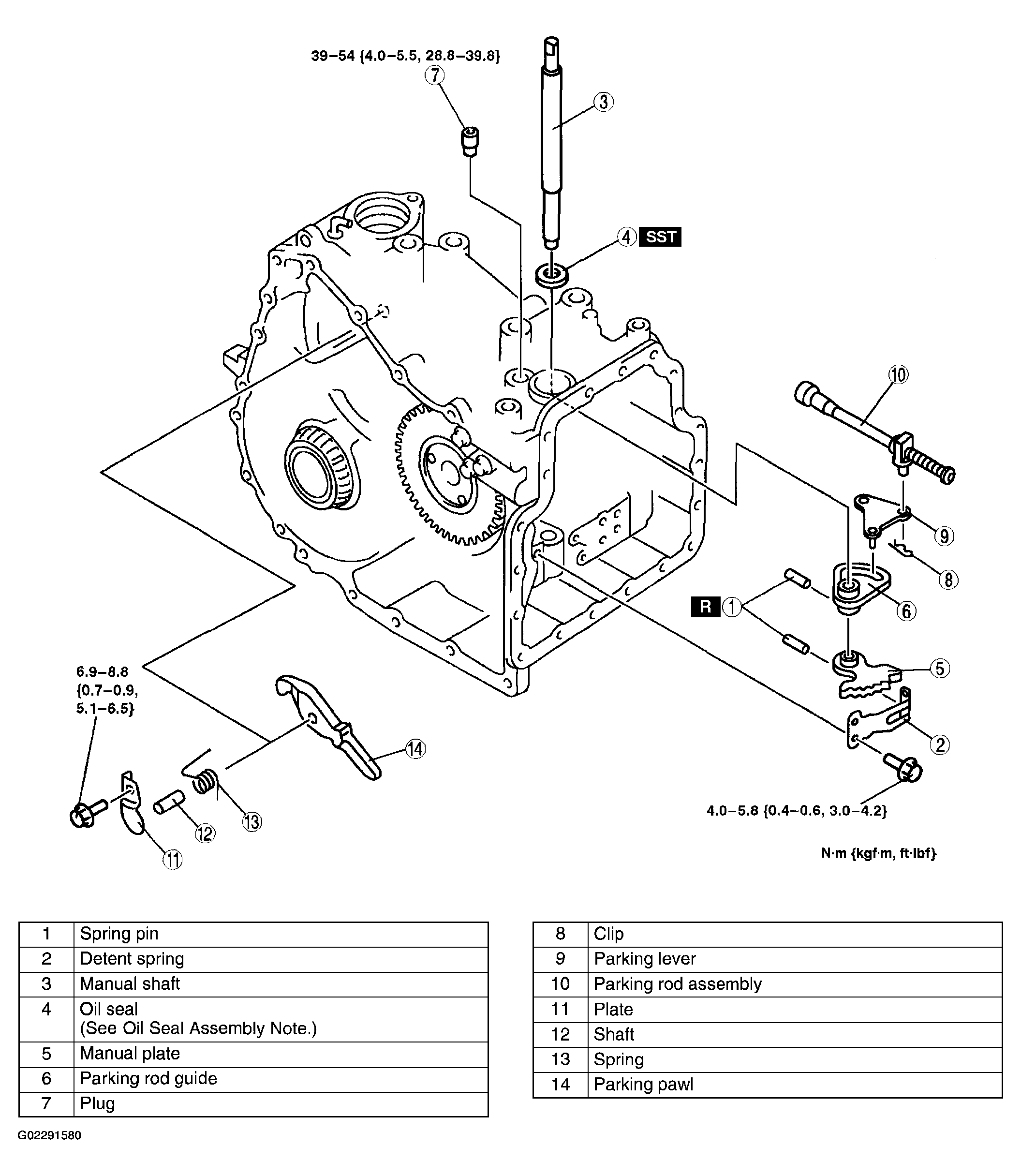

    Fig 1: Disassembling/Assembling Parking Mechanism
    G02291580Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
