Automatic Transaxle Control System Wiring Diagram

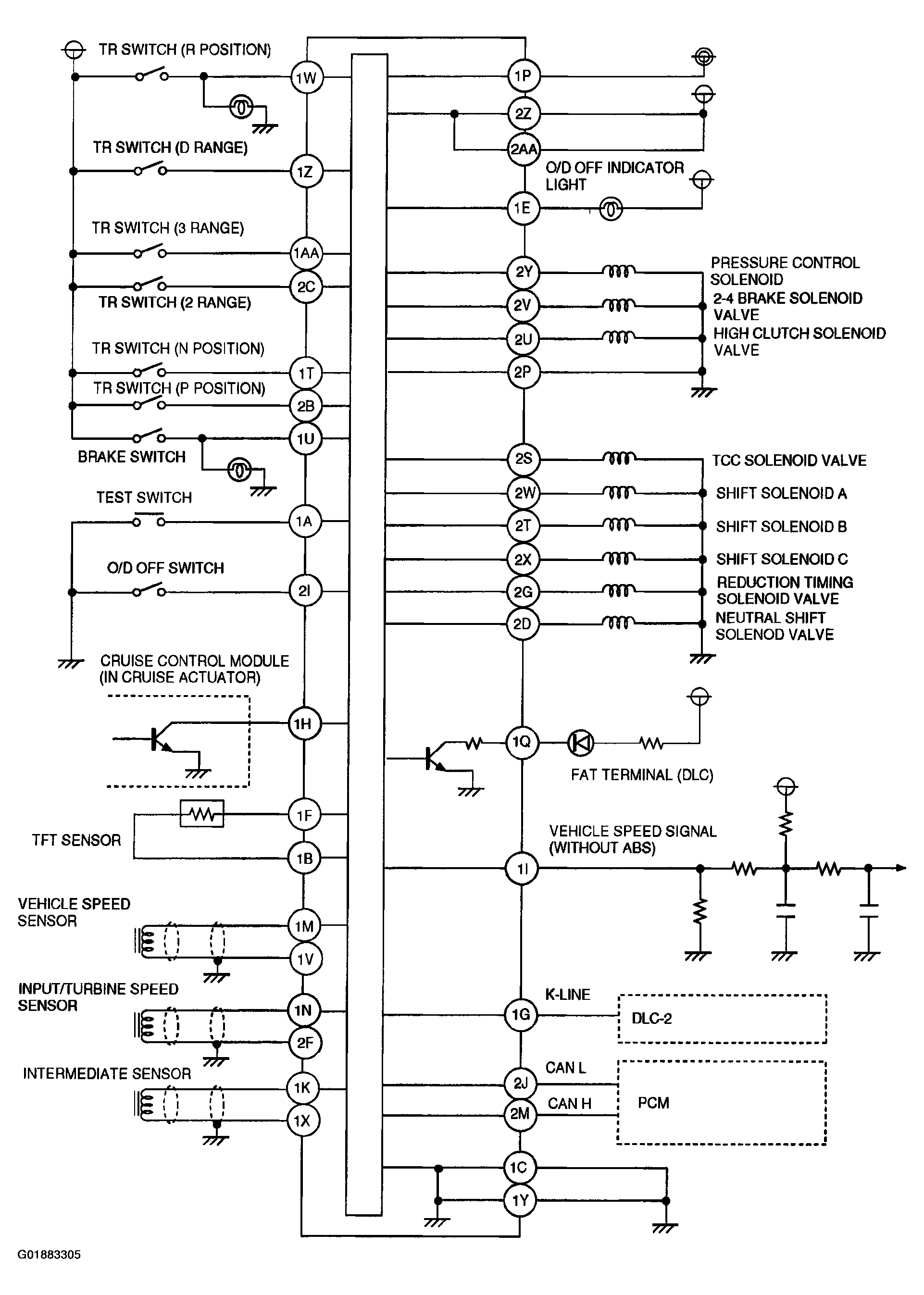

Fig 1: Wiring Diagram - Automatic Transaxle Control System
G01883305Courtesy of MAZDA MOTORS CORP.
