Symptom Troubleshooting - Automatic Transaxle: Foreword

When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication, O/D OFF indicator light flash, and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.
- If the DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE .)
- If the DTC does not exist and the MIL does not illuminate and O/D OFF indicator light flash, diagnose the applicable symptom troubleshooting. (See AUTOMATIC TRANSAXLE SYMPTOM TROUBLESHOOTING .)

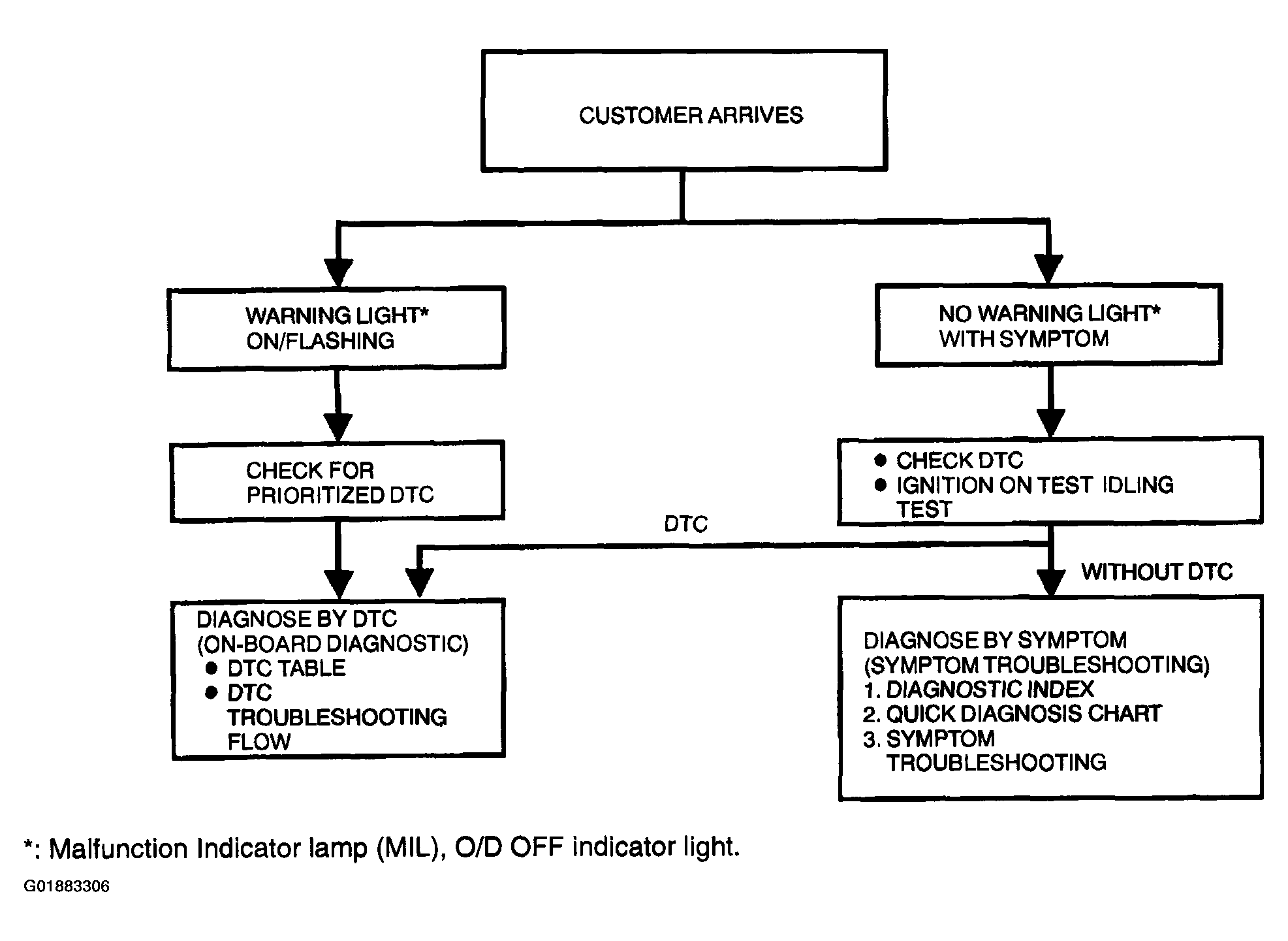

  Fig 1: Diagnostic Flow Chart - Malfunction Indicator Light
  Courtesy of MAZDA MOTORS CORP.
