Symptom Troubleshooting - Automatic Transaxle
>>
No. 23 Transaxle Overheats
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
No. 23 Transaxle Overheats: Notes

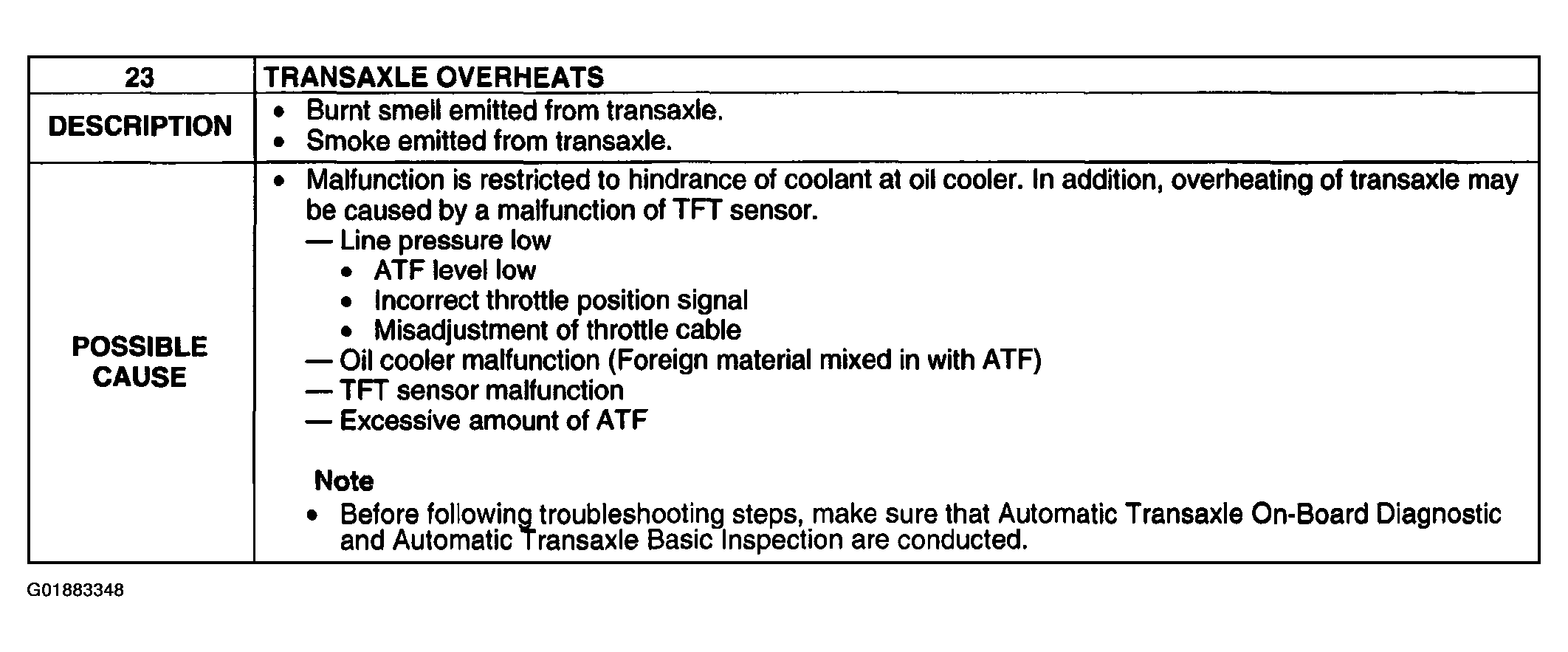

Fig 1: Troubleshooting Symptoms Chart - Transaxle Overheats
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
