Rear Climate Control Unit

REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION

1. Remove the rear cup holder (RH).

2. Remove in the order indicated below.
1. Connector
2. Rear climate control unit

3. Install in the reverse order of removal.

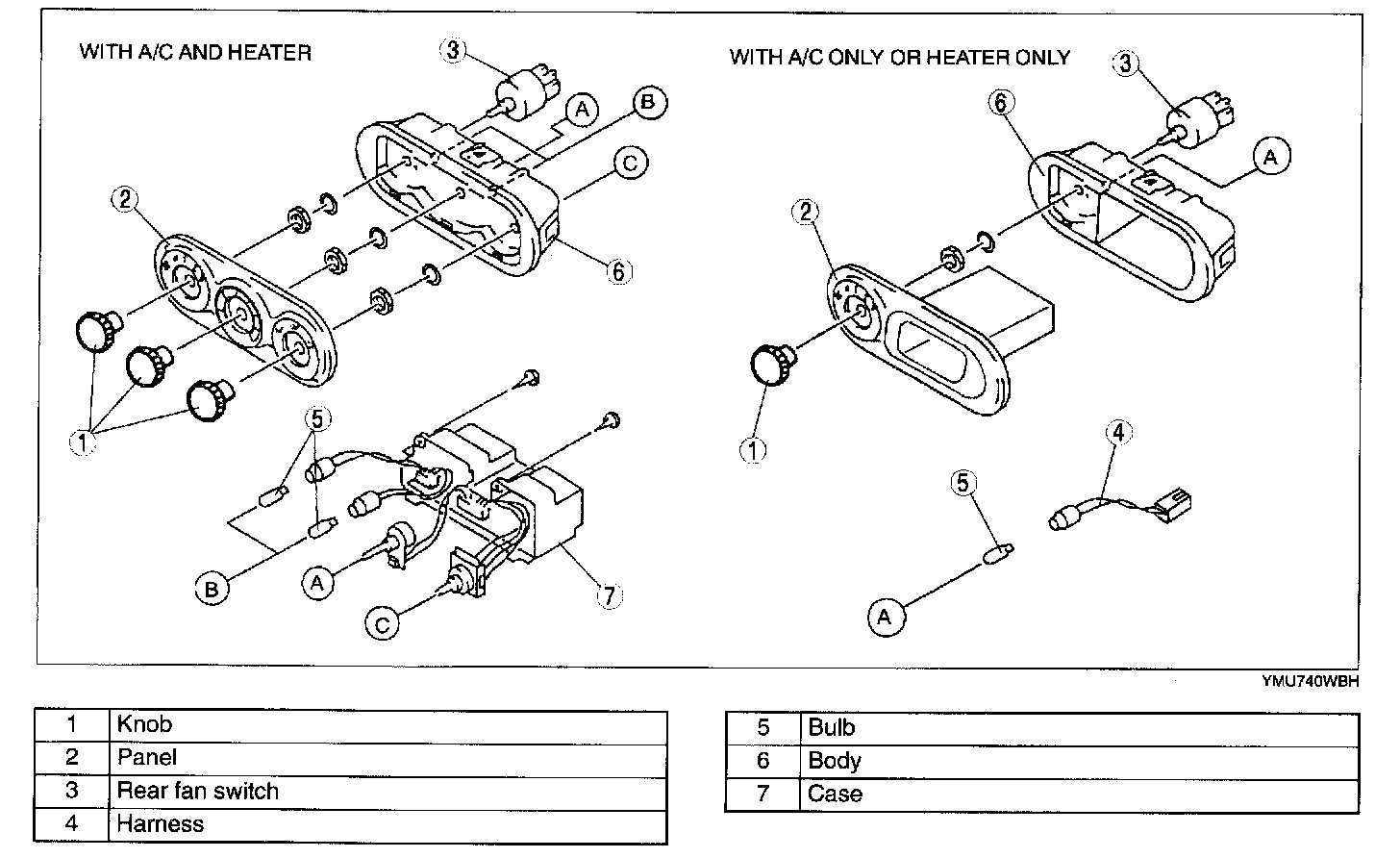

REAR CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
