Generator Removal/Installation
GENERATOR REMOVAL/INSTALLATIONWARNING: When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.
1. Disconnect the negative battery cable.
2. Remove the drive belt.
3. Remove the front pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION.)
4. Remove the joint shaft.

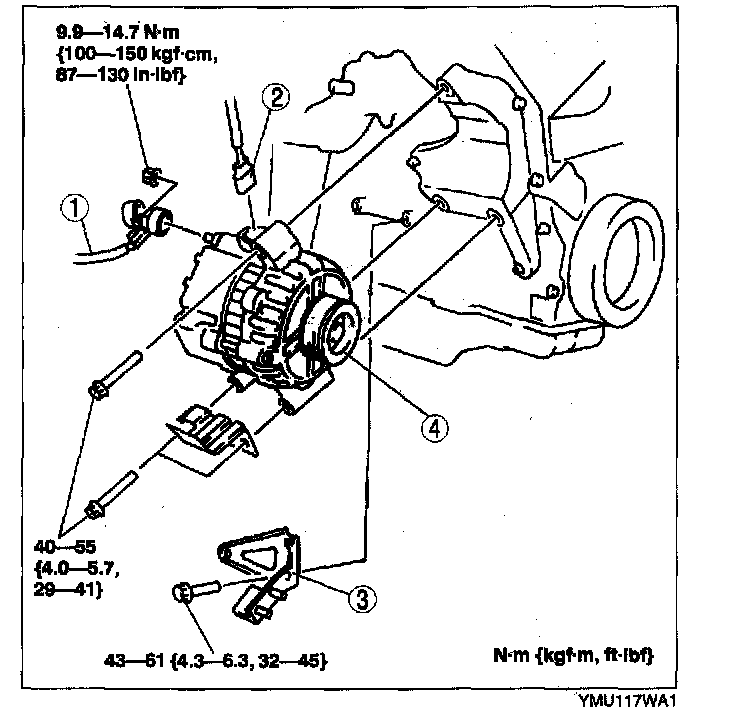

5. Remove in the order indicated below.
1. Terminal B wire
2. Connector
3. Joint shaft bracket
4. Generator
6. Install in the reverse order of removal.
