Automatic Transmission Basic Inspection

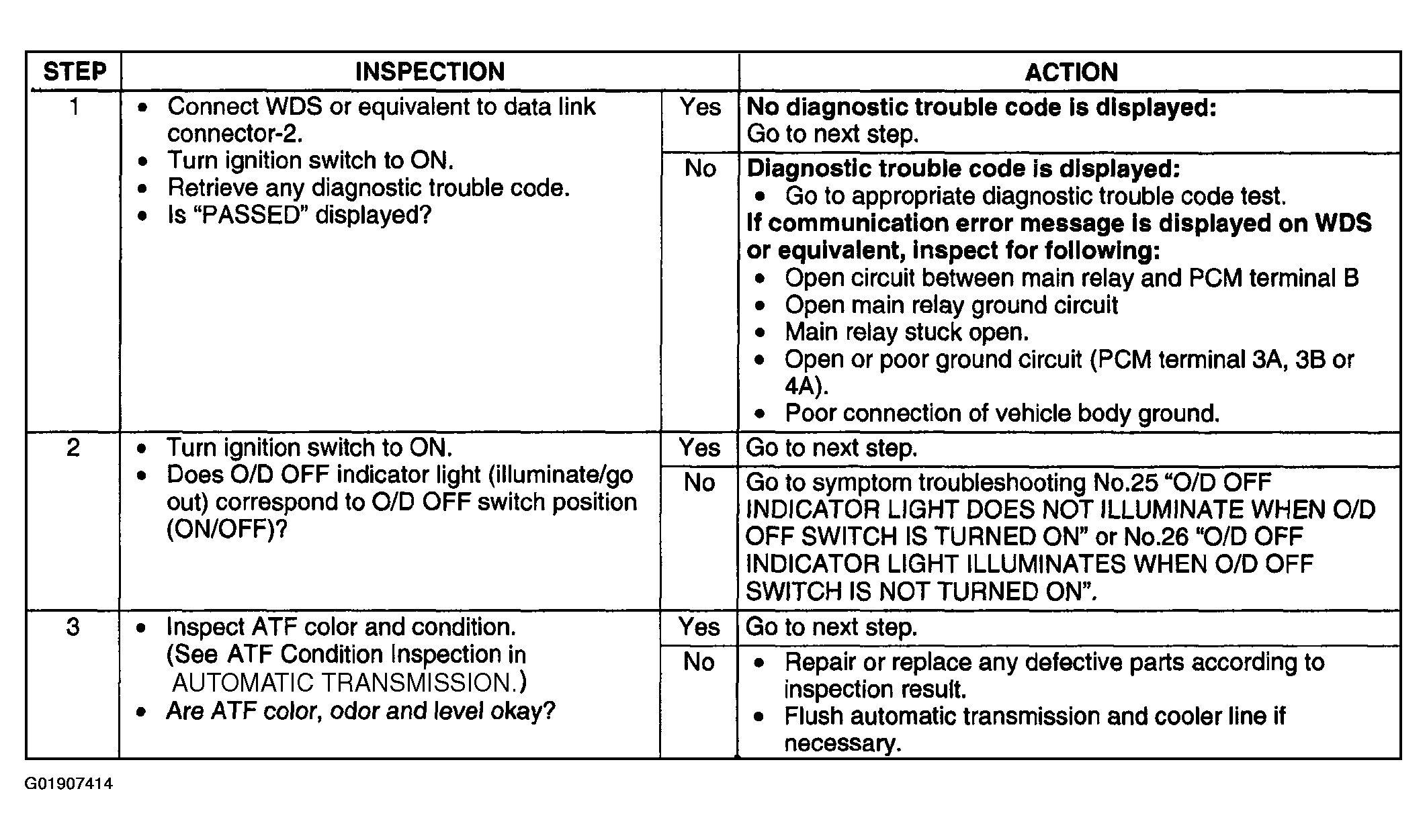

Fig 1: Automatic Transmission Basic Inspection Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

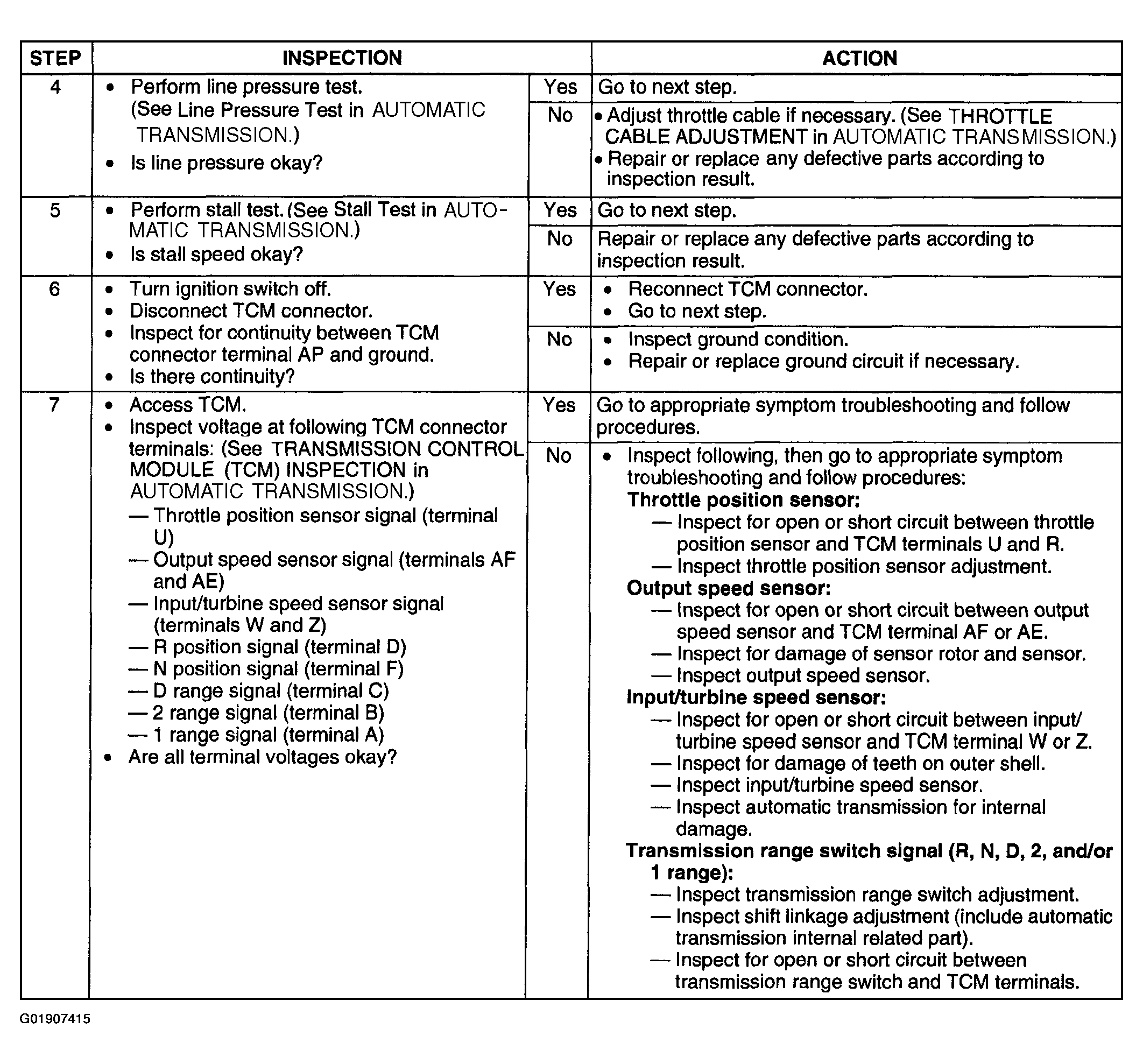

Fig 2: Automatic Transmission Basic Inspection Chart (Steps 4-7)
Courtesy of MAZDA MOTORS CORP.
