Using the Cruise Set Indicator Light
NOTE:
- If the RESUME/ACCEL switch on the cruise control switch is malfunction, the cruise set indicator light will not give a correct indication when you inspect the system. Use the SST (WDS of equivalent) to determine the cause of the malfunction.
- Drive the vehicle at over 16 km/h {10 mile/h}.
- Operate each of the cruise control switches.
- Stop the vehicle and let it idle.

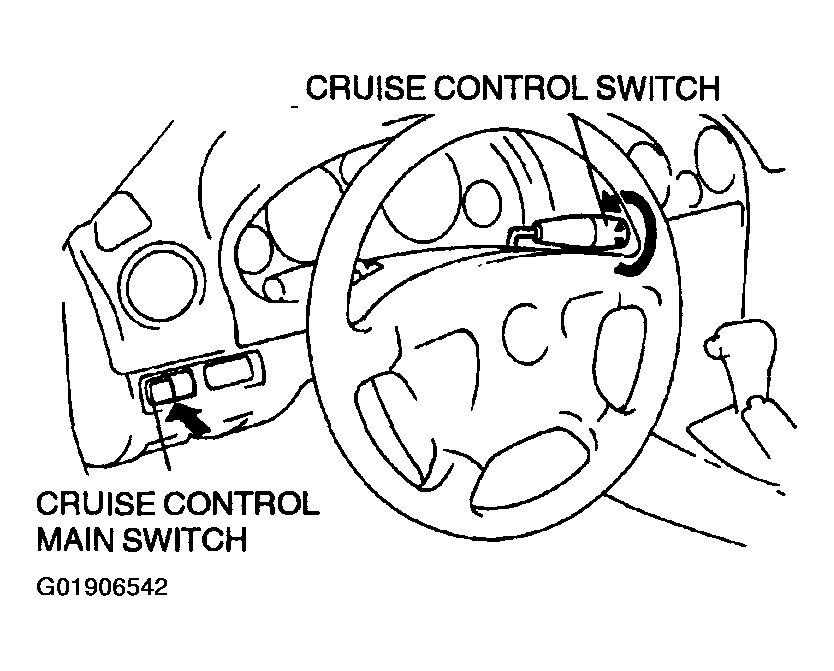

- Turn on the cruise control main switch.
- Turn and hold the RESUME/ACCEL switch on for at least 3 seconds.
The cruise set indicator light will illuminate for 3 seconds,
and then go off for at least 2 seconds.
Thus, the condition detection mode begins.
- If a diagnostic trouble code is indicated, inspect the corresponding system area.
- The condition detection mode is canceled by turning the ignition switch to LOCK position or turning off the cruise control main switch.
