Using the Cruise Set Indicator Light
- Turn the ignition switch to ON position.

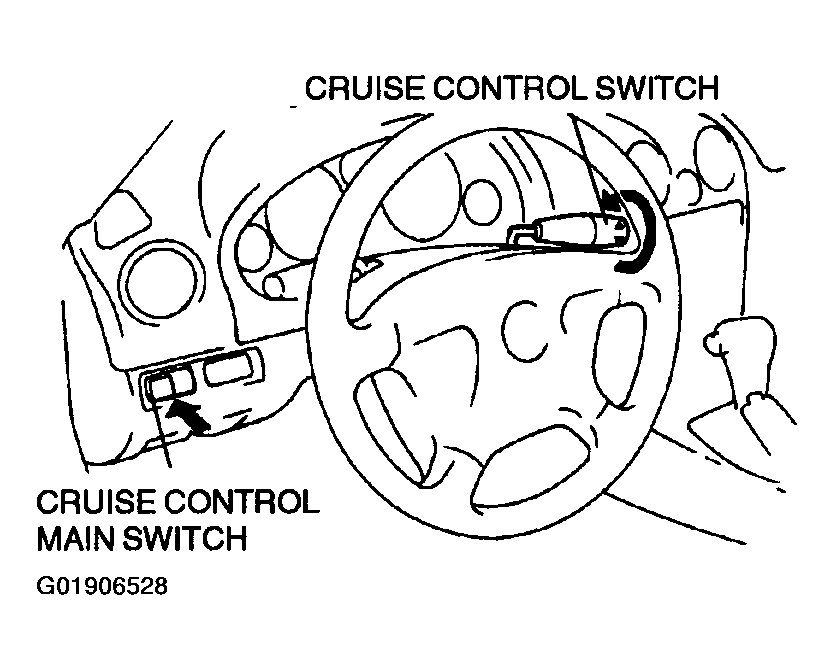

- Verify that the cruise control main switch is off.
- Turn and hold the RESUME/ACCEL switch on then turn on the cruise control main switch to activate system inspection. (The cruise set indicator light will illuminate for 3 seconds.
)
- Operate each switch as described in the operation code list and note the operation code list pattern.
- If the cruise set indicator light does not flash, inspect the corresponding system area.
- The operation mode is canceled by turning the ignition switch to LOCK position or turning off the cruise control main switch.
Courtesy of MAZDA MOTORS CORP.
