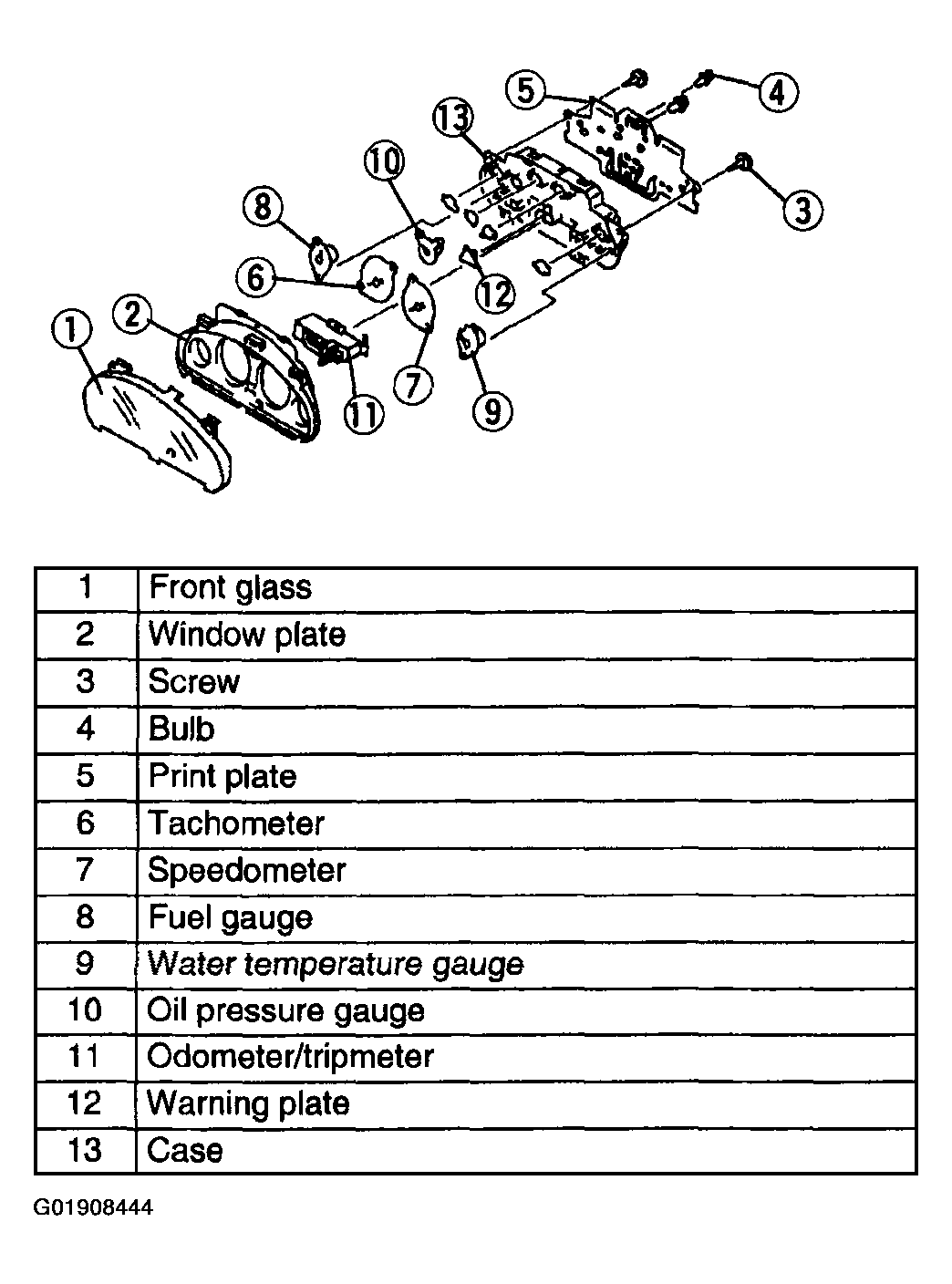

Instrument Cluster Disassembly/Assembly
CAUTION:
- If the instrument cluster is dropped or damaged, the system will not work properly and it may be the cause of trouble or malfunction.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
