Steering Wheel And Column Removal/Installation: Notes

Remove in the order indicated in the illustration.

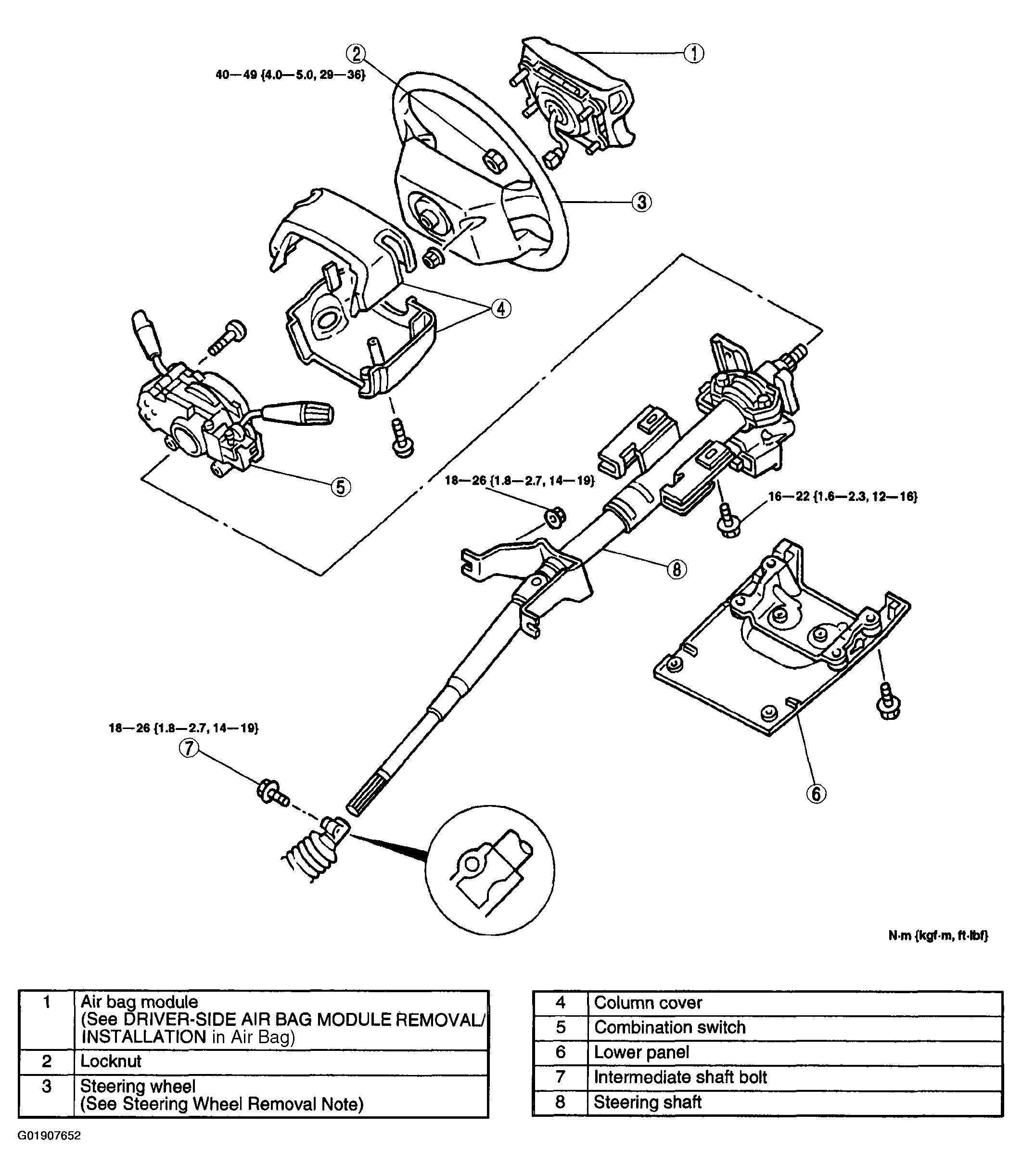

Fig 1: Removal Order Of Steering Wheel And Column
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
After installation, verify that the horn sounds.
- If the horn does not sound, remove the air bag module and connect the module connectors.
