Ignition System: Testing and Inspection

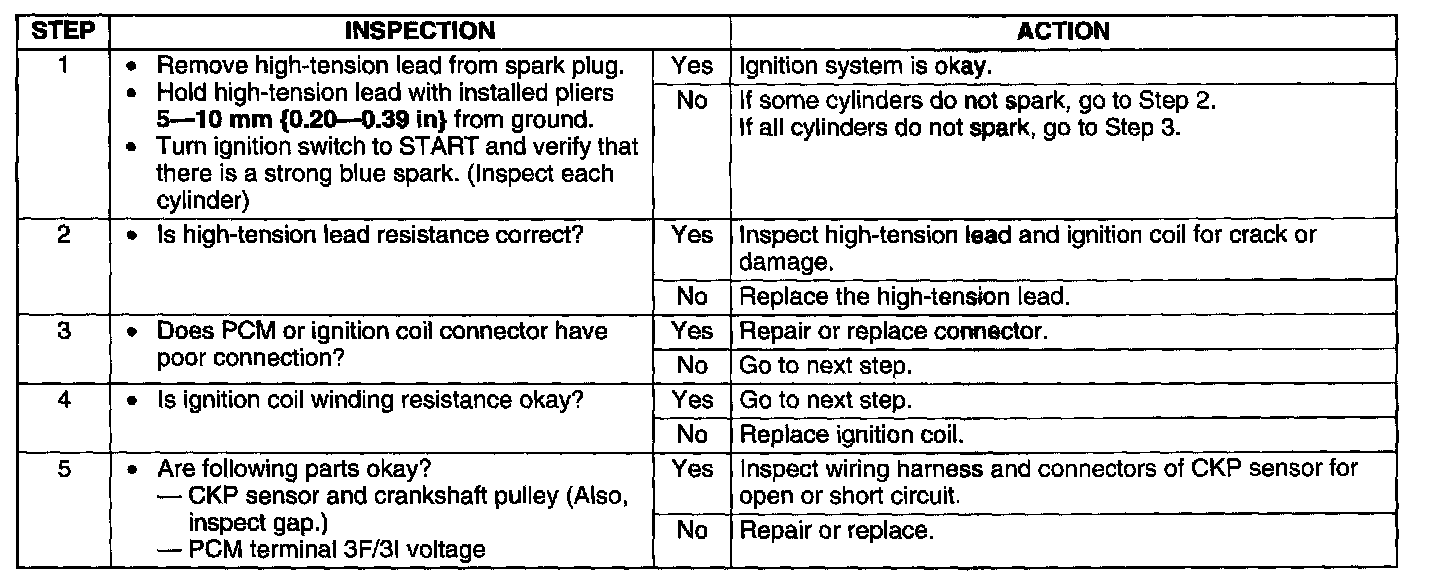

Step 1 - 5:

1. Disconnect the negative battery cable.
2. Disconnect the FP RLY connector.
3. Verify that each high-tension lead and connector is connected properly.
4. Inspect the ignition system in the procedure.

WARNING: HIGH VOLTAGE IN THE IGNITION SYSTEM CAN CAUSE STRONG ELECTRICAL SHOCK WHICH CAN RESULT IN SERIOUS INJURY. AVOID DIRECT CONTACT TO THE VEHICLE BODY DURING THE SPARK TEST.
