Passenger's Side

  1. Disconnect the negative battery cable.
  2. Remove the passenger-side front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Push out the clip from the reverse side of the trim, and remove the switch panel.
  4. Remove the screw, and remove the power window subswitch.

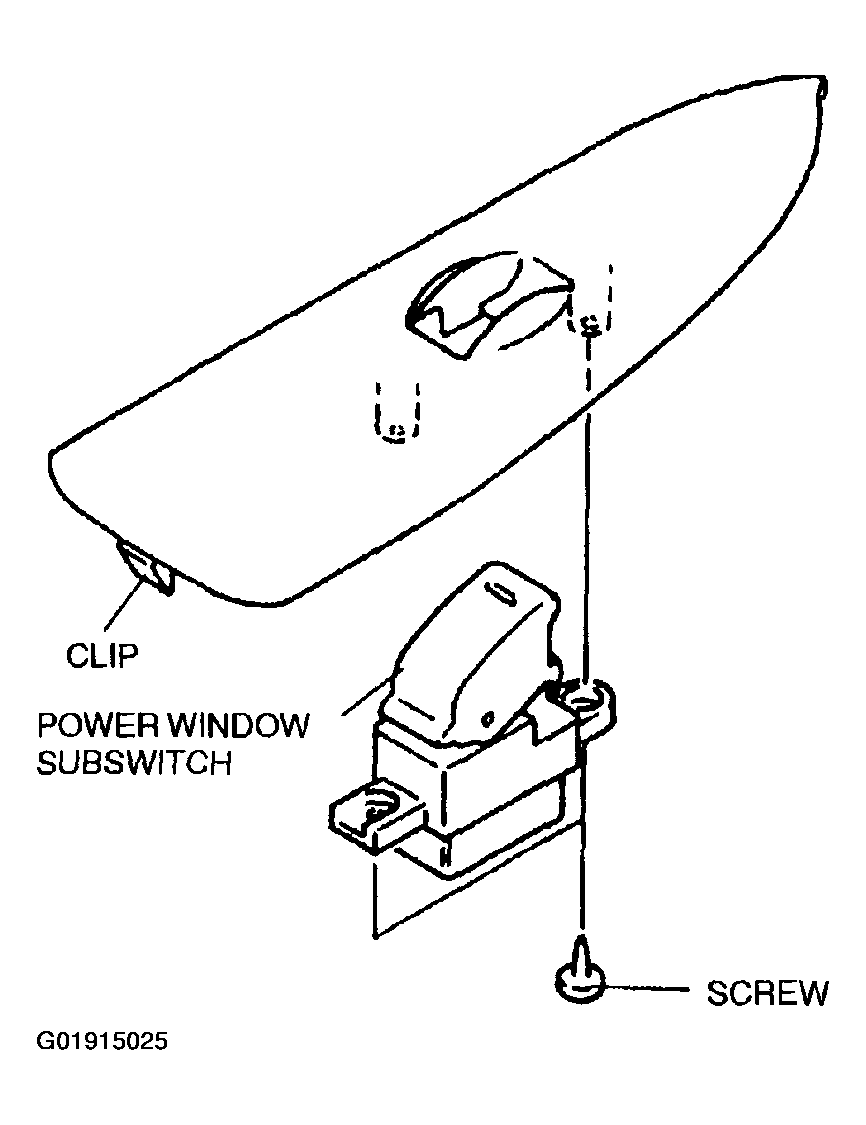

    Fig 1: Identifying Components Of Power Window Subswitch - Passenger Side
    G01915025Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
