Airflow Mode Main Link Removal/Installation: Notes

  1. Disconnect the airflow mode wire from the airflow mode main link.
  2. Remove in the airflow mode main link. (See AIRFLOW MODE MAIN LINK INSTALLATION NOTE  )

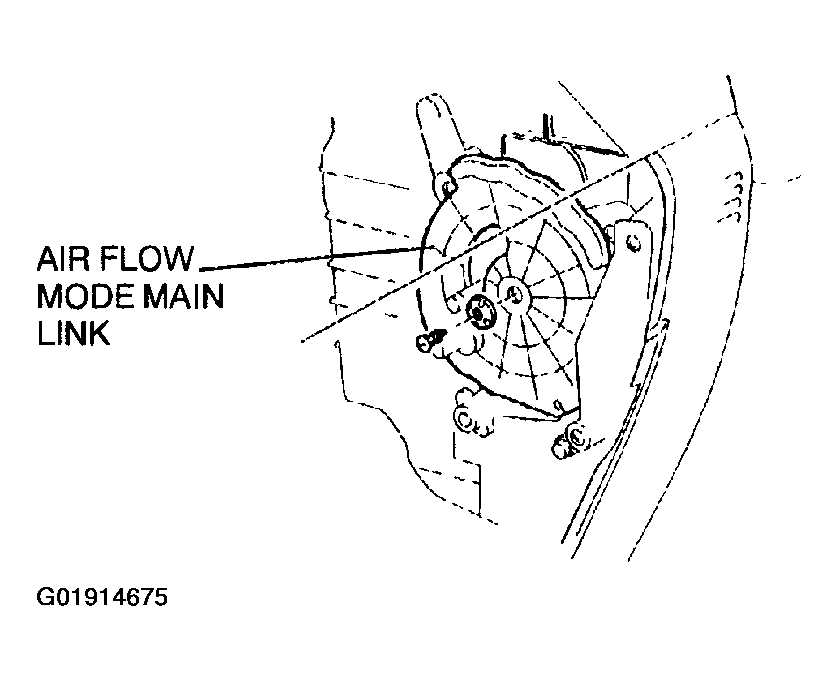

    Fig 1: Disconnecting Airflow Mode Wire From The Airflow Mode Main Link
    G01914675Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the airflow mode wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT .)
