Evaporator Assembly Note

  1. Verify that the dent caused by contact with the polyurethane protector and cooler case (1) in the shaded zone is 3 mm {0.12 in} or less.

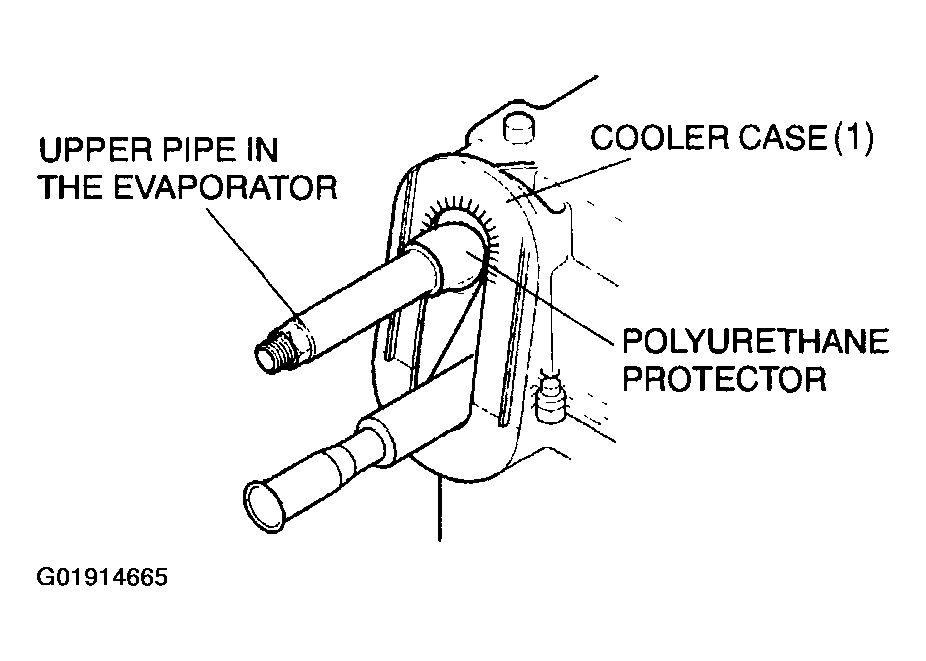

    Fig 1: Locating Cooler Case And Evaporator Upper Pipe
    G01914665Courtesy of MAZDA MOTORS CORP.
