Polyethylene Foam Assembly Note

  1. Apply the adhesive to a range of 50 mm  {1.97 in} from the edge of polyethylene foam, and around the drain outlet. Apply the polyethylene foam to the cooler case (2).

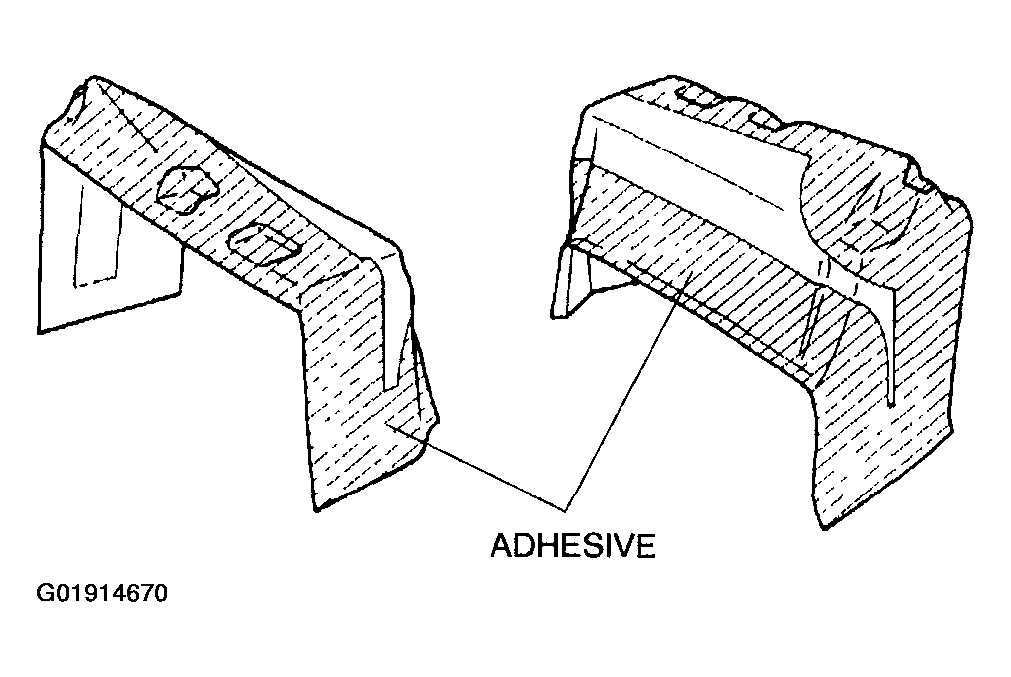

    Fig 1: Locating Adhesive Applying Area
    G01914670Courtesy of MAZDA MOTORS CORP.
