Sensor Clamp Assembly Note

  1. Assemble the sensor clamp as shown in the figure.

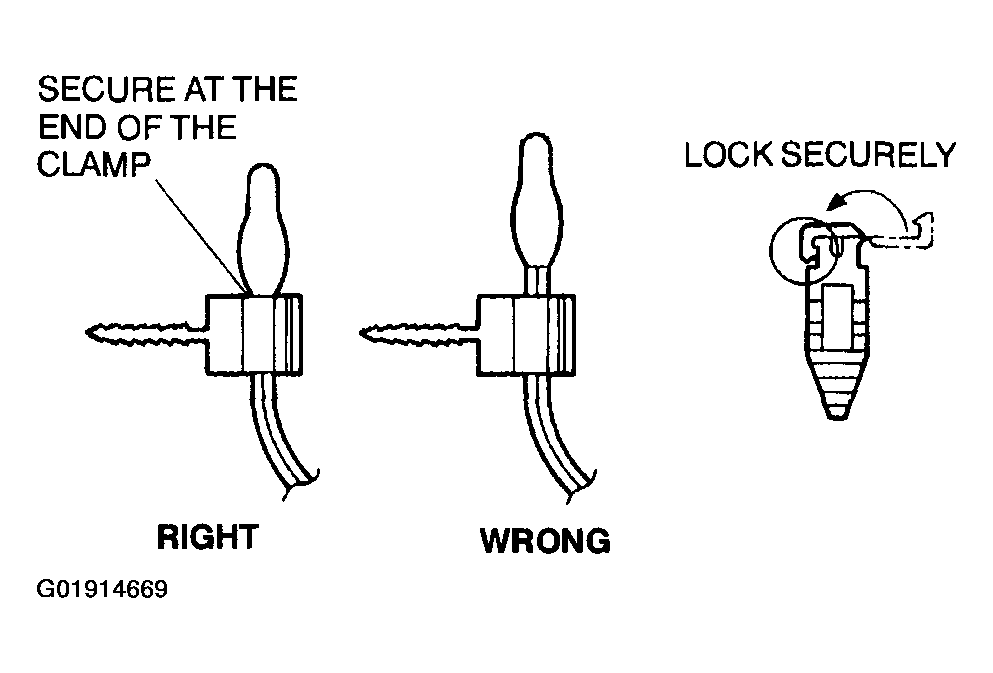

    Fig 1: Assembling Sensor Clamp
    G01914669Courtesy of MAZDA MOTORS CORP.
