Oil Pan Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Drain the engine oil. (See ENGINE OIL REPLACEMENT .)
  3. Remove the front pipe.
  4. Remove in the order indicated in the figure.

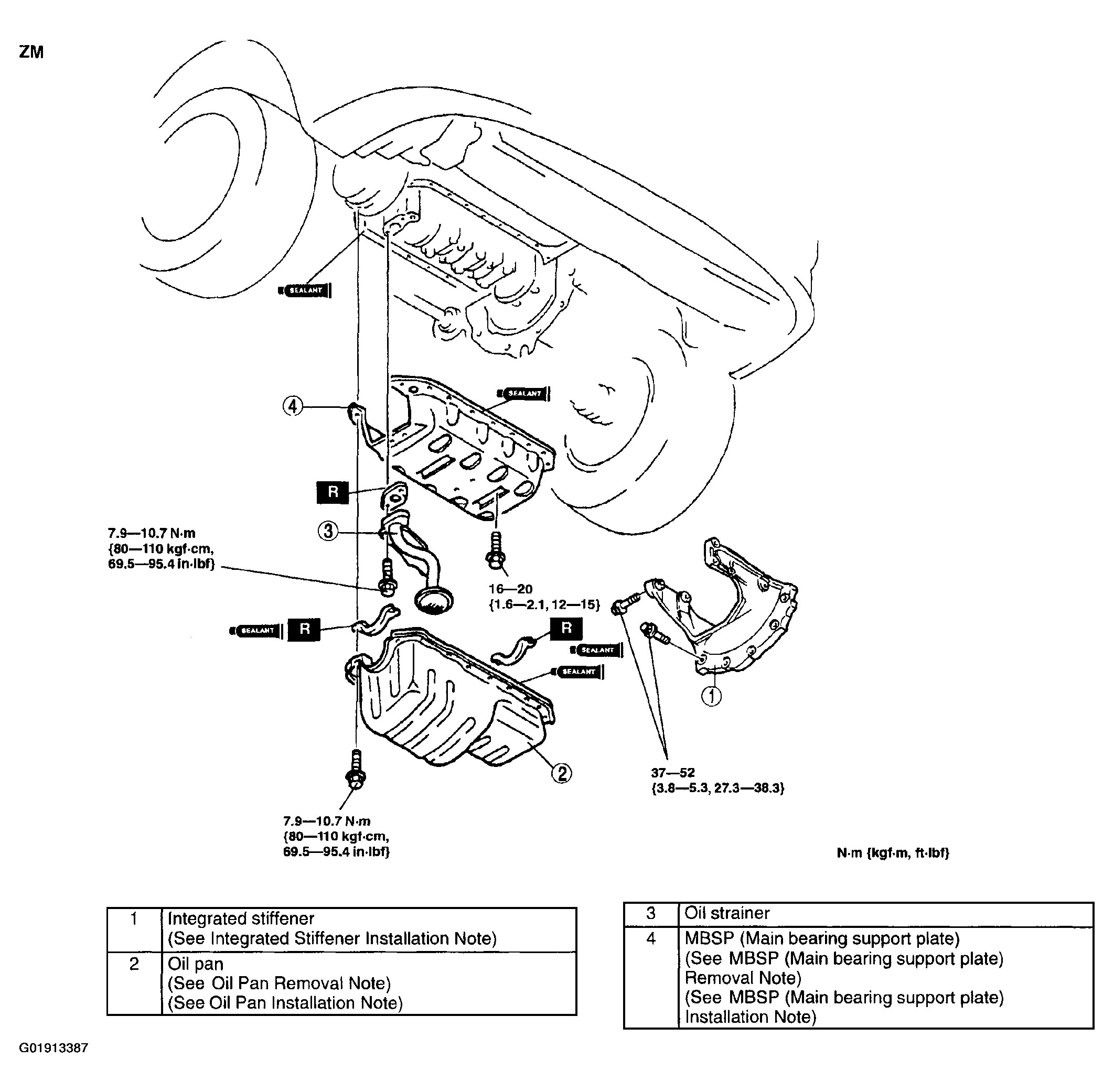

    Fig 1: Identifying Components Of Oil Pan - ZM
    G01913387Courtesy of MAZDA MOTORS CORP.

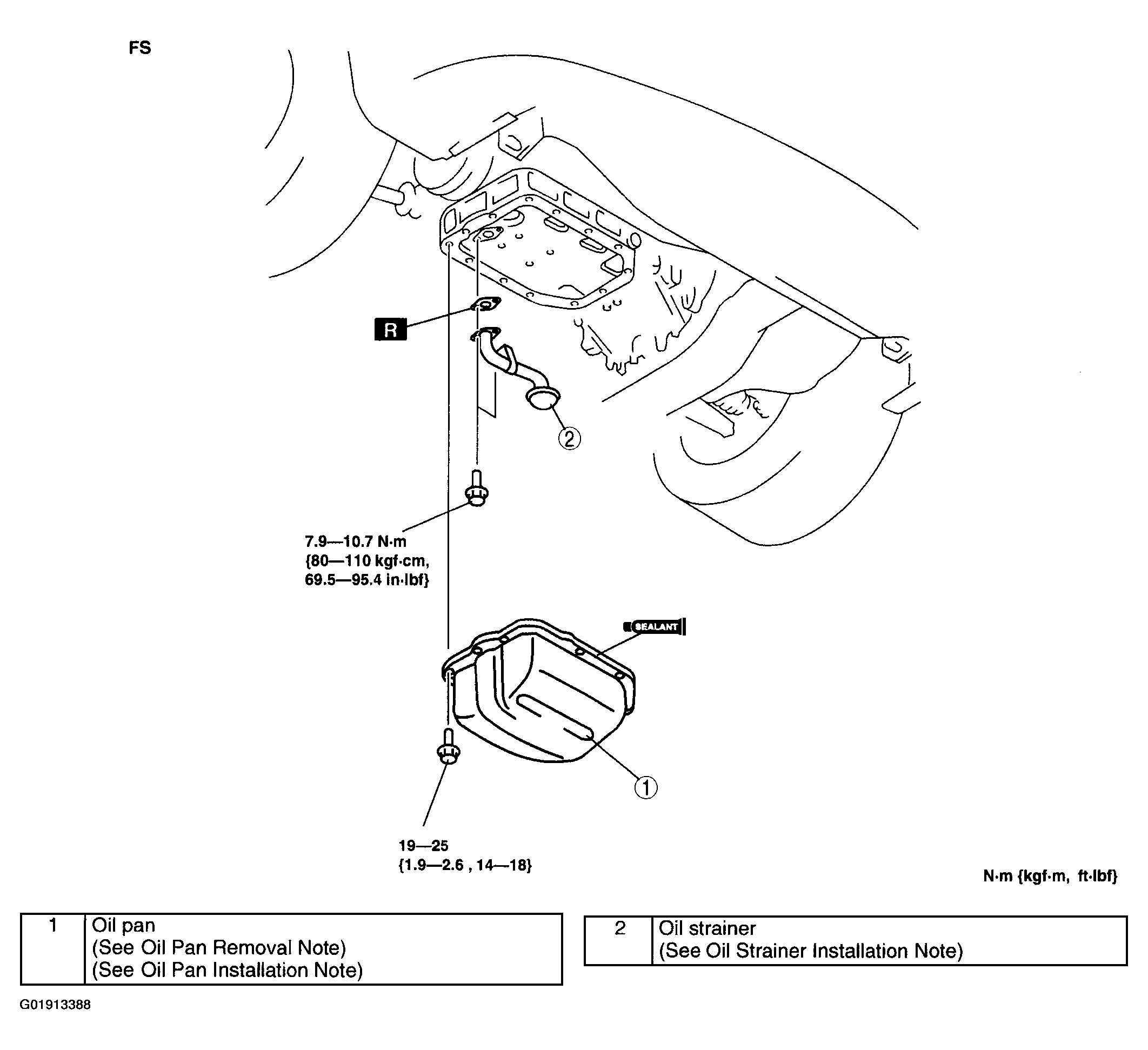

    Fig 2: Identifying Components Of Oil Pan - FS
    G01913388Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Start the engine and inspect for engine oil leakage.
