Pressure Spring Inspection: FS

Apply pressing force to the pressure spring and check the spring height.
- Replace the plunger spring if necessary.
Pressing force

97.7-107.4 N {9.96-10.96 kgf, 21.92-24.11 lbf}

Standard height

33.50 mm {1.319 in}

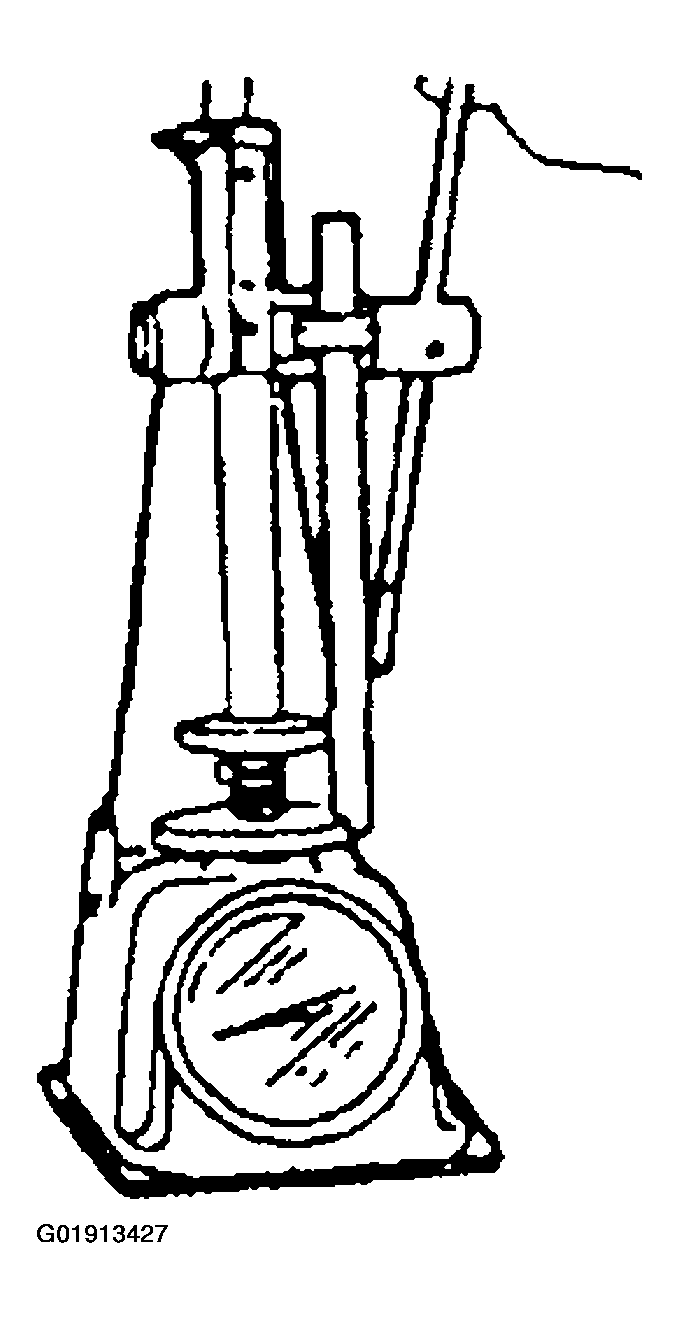

Fig 1: Applying Pressing Force To Pressure Spring And Checking Spring Height (FS)
Courtesy of MAZDA MOTORS CORP.
