Engine Control Module

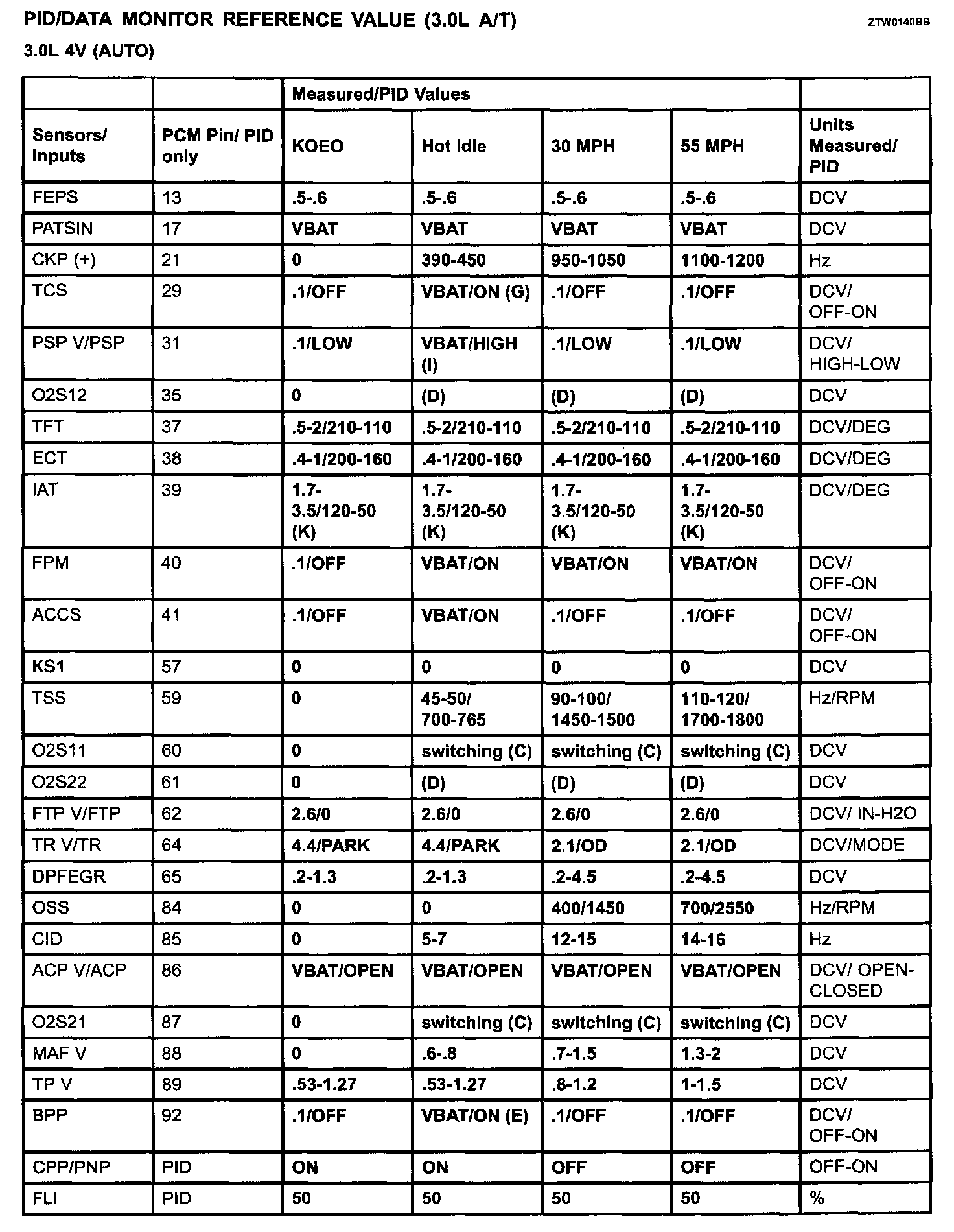

PID/Data Monitor Reference Value (3.0L A/T):
PID/Data Monitor Reference Value (3.0L A/T):

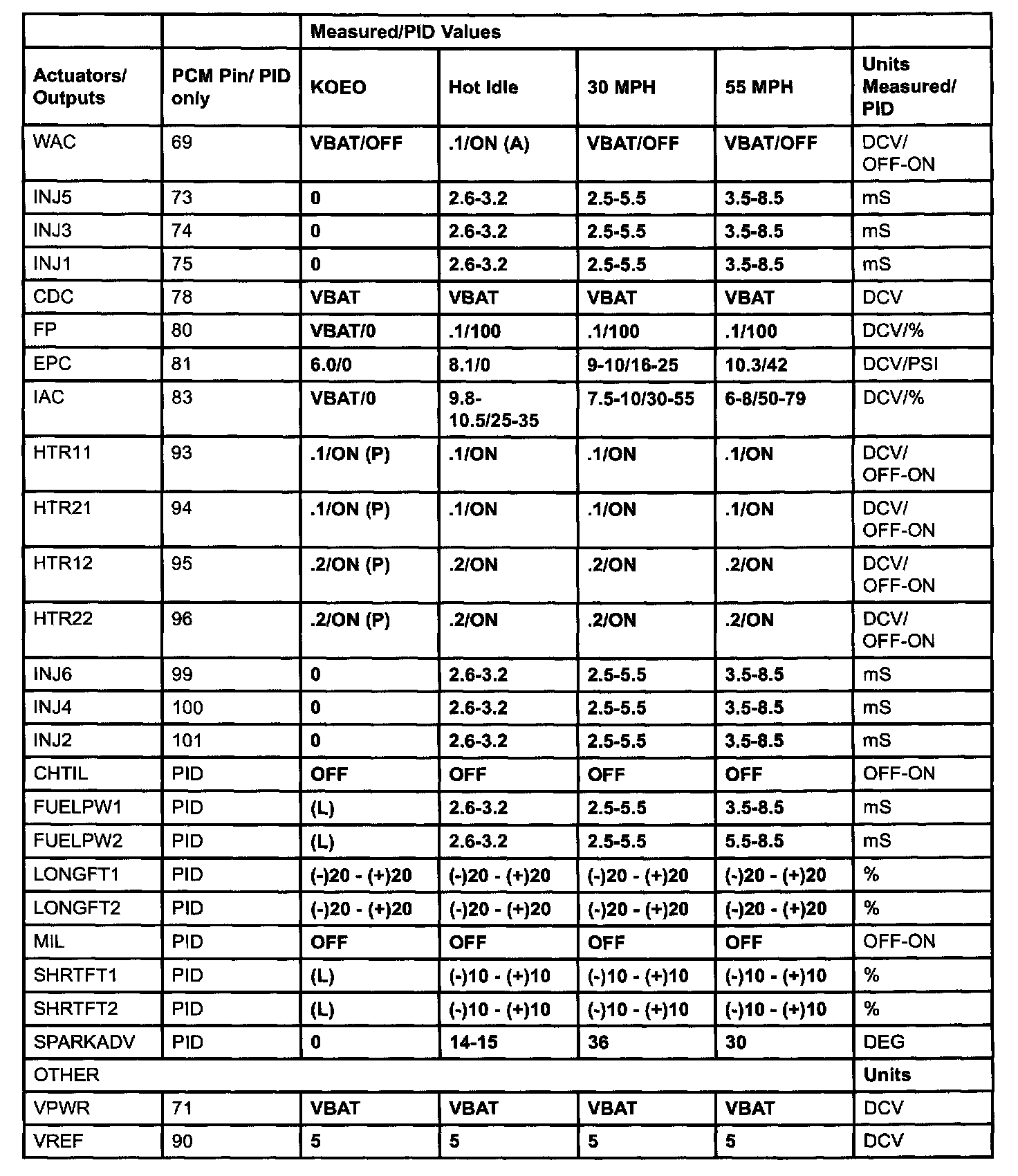

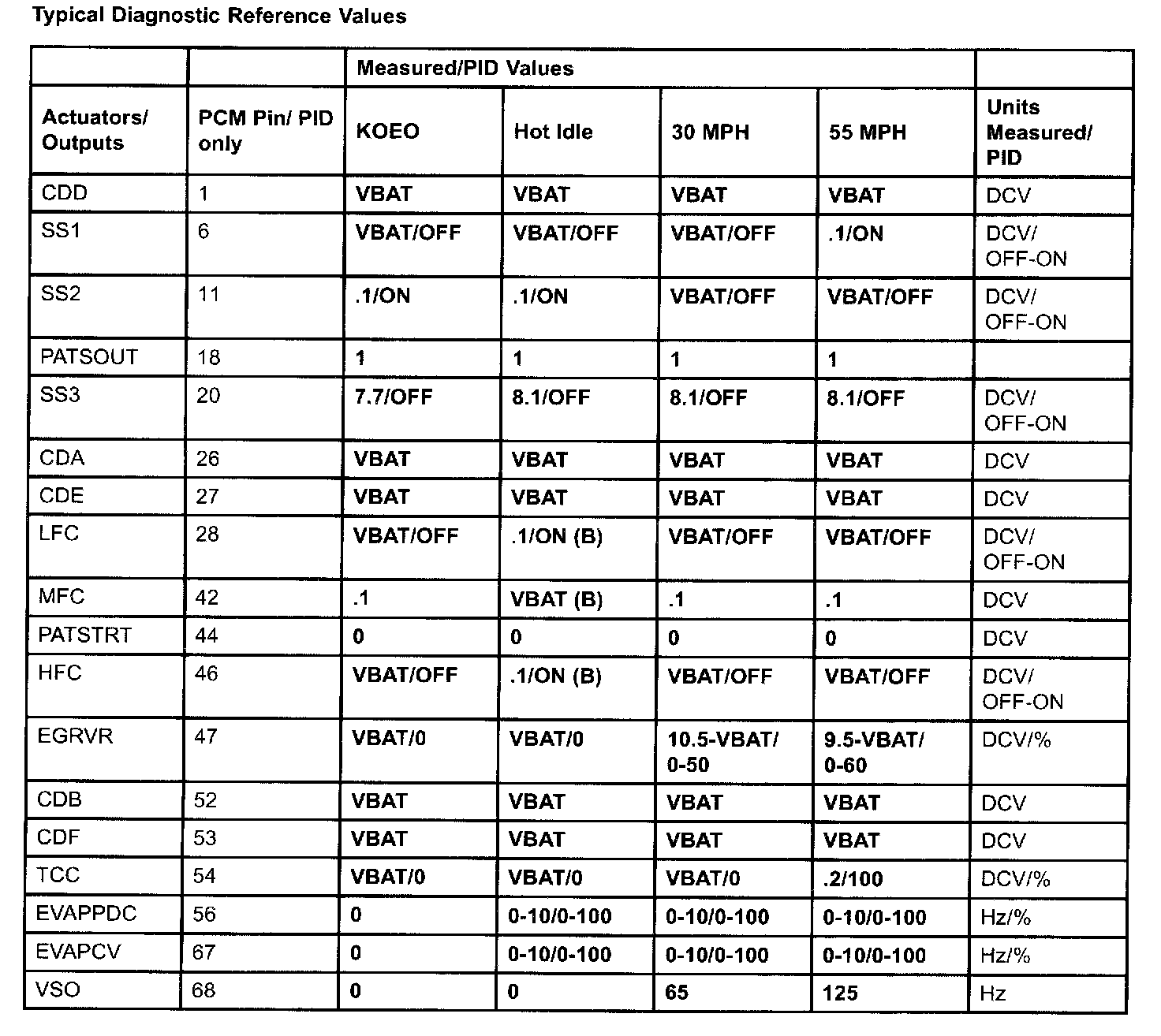

Typical Diagnostic Reference Values:
Typical Diagnostic Reference Values:
Generic OBD II PID Values:
