Diagnostic Index

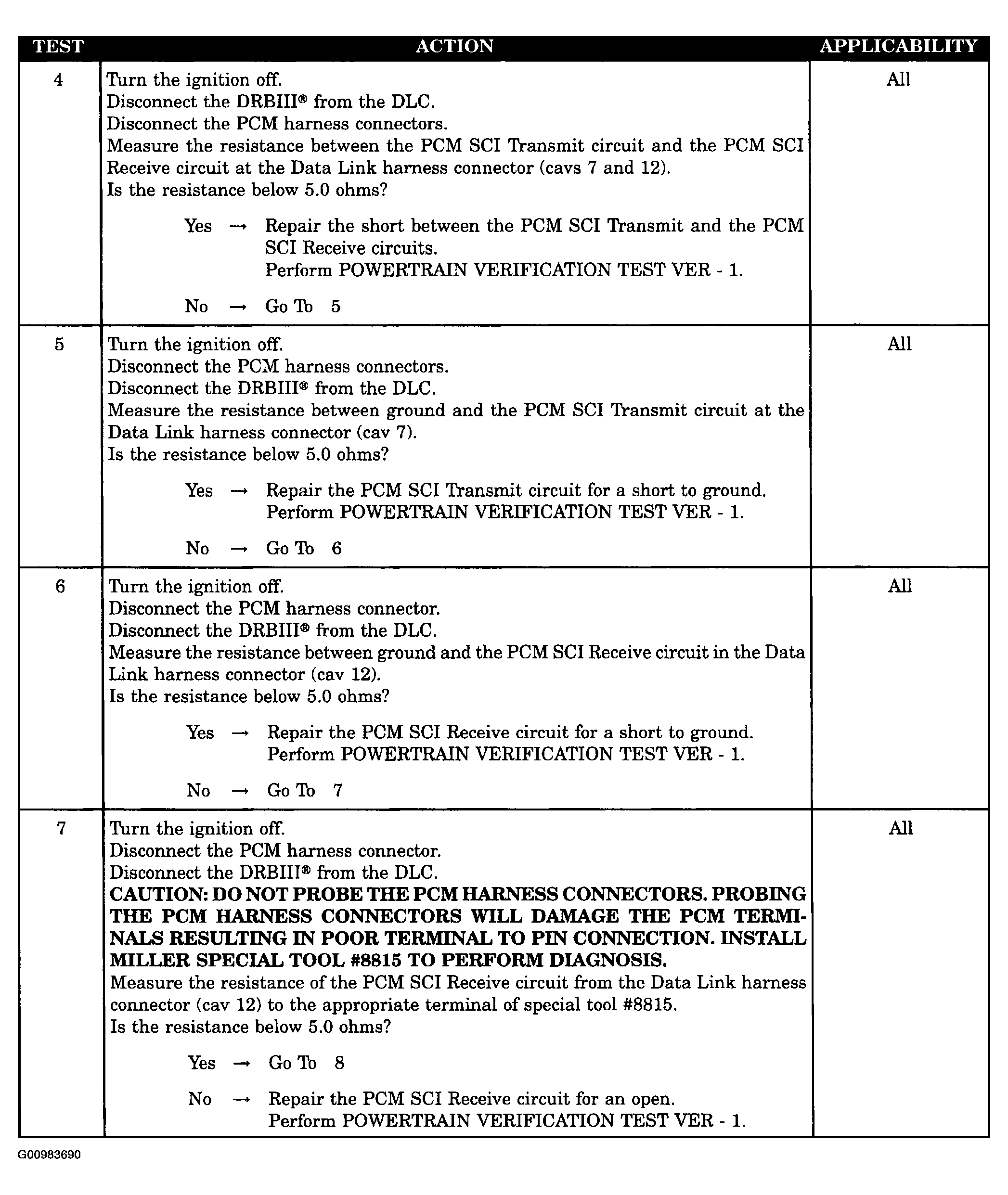

Fig 1: Diagnostic Index (1 Of 3)
G00983690Courtesy of FORD MOTOR CO.

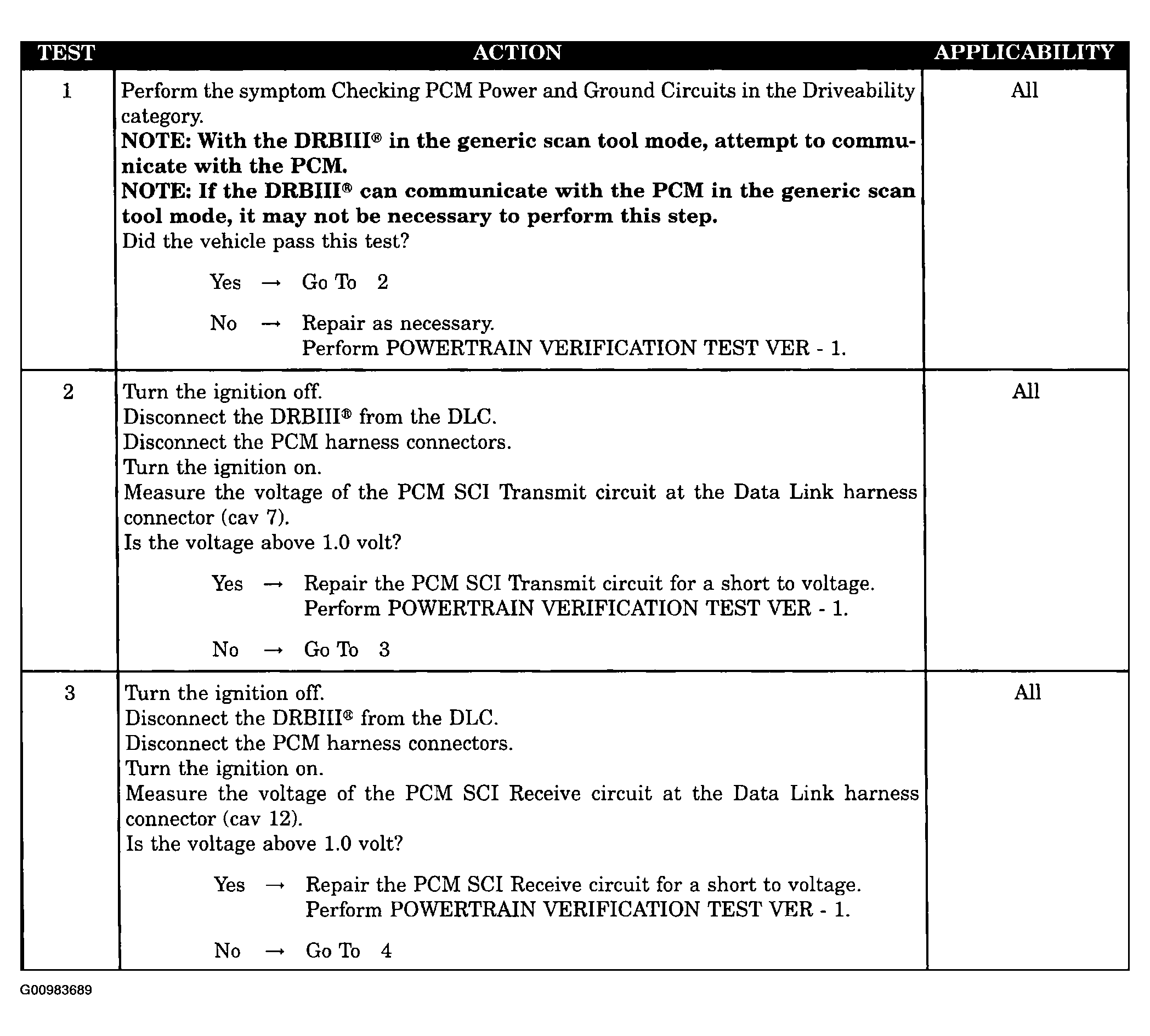

Fig 2: Diagnostic Index (2 Of 3)
G00983689Courtesy of FORD MOTOR CO.

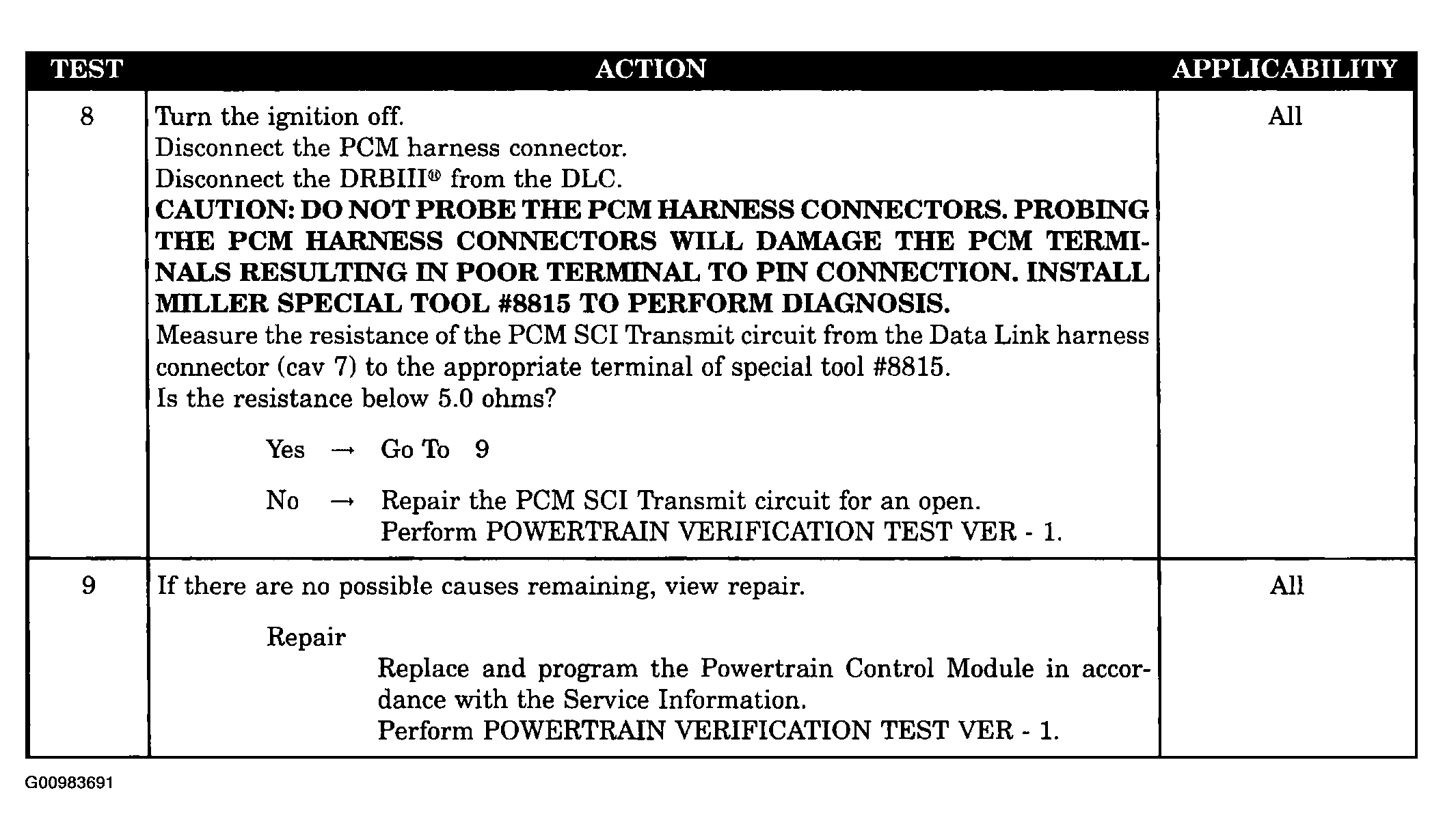

Fig 3: Diagnostic Index (3 Of 3)
G00983691Courtesy of FORD MOTOR CO.
