Subwoofer Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the trunk side trim.
Remove the window defroster noise filter.
Disconnect the subwoofer connector.
Remove the lateral bracket.

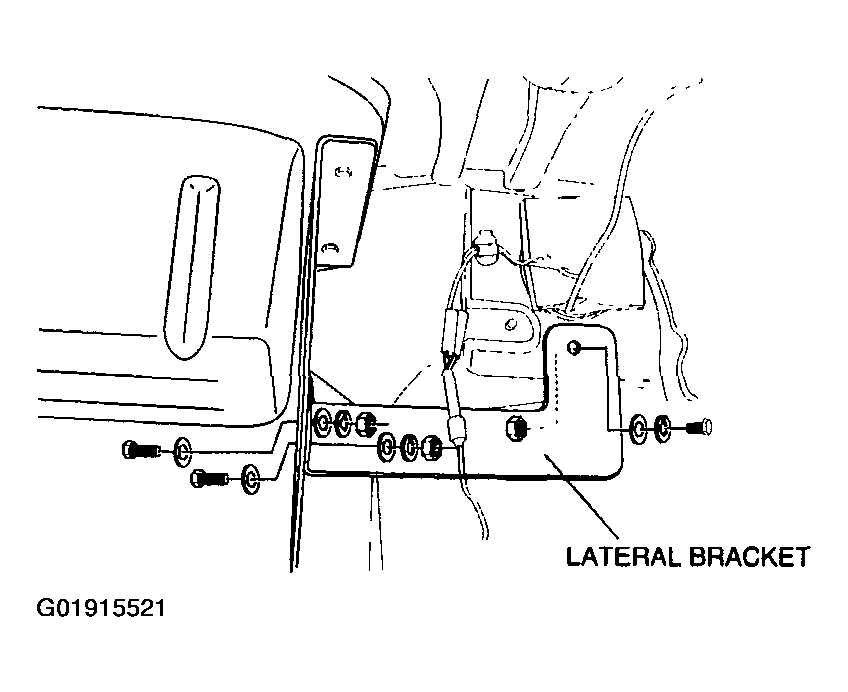

Fig 1: Removing Lateral Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the subwoofer.

Fig 2: Removing Subwoofer
Courtesy of MAZDA MOTORS CORP.
Remove the main bracket.

Fig 3: Removing Main Bracket
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
